Sound Signal Circuit between Radio Receiver and Stereo Jack Adapter [06/2018 - 04/2020]: Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 Toyota GR Corolla, 2023 Toyota Corolla, 2022 Toyota Corolla, 2021 Toyota Corolla, and 2020 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - NO. 1 STEREO JACK ADAPTER ASSEMBLY)
- Disconnect the I55 radio and display receiver assembly connector.
- Disconnect the I114 No. 1 stereo jack adapter assembly connector.
- Measure the resistance according to the value(s) in the table below.

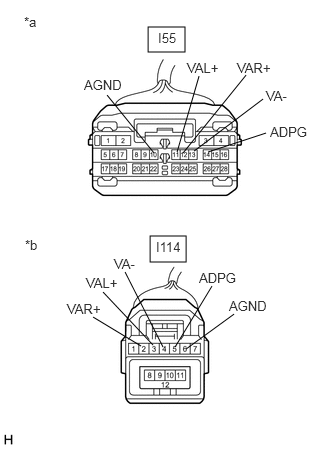

*a Front view of wire harness connector
(to Radio and Display Receiver Assembly)*b Front view of wire harness connector
(to No. 1 Stereo Jack Adapter Assembly)Standard Resistance
Tester Connection Condition Specified Condition I55-14 (ADPG) - I114-5 (ADPG) Always Below 1 Ω I55-10 (AGND) - I114-6 (AGND) Always Below 1 Ω I55-12 (VAR+) - I114-2 (VAR+) Always Below 1 Ω I55-11 (VAL+) - I114-3 (VAL+) Always Below 1 Ω I55-13 (VA-) - I114-4 (VA-) Always Below 1 Ω I55-14 (ADPG) or I114-5 (ADPG) - Body ground Always 10 kΩ or higher I55-10 (AGND) or I114-6 (AGND) - Body ground Always 10 kΩ or higher I55-12 (VAR+) or I114-2 (VAR+) - Body ground Always 10 kΩ or higher I55-11 (VAL+) or I114-3 (VAL+) - Body ground Always 10 kΩ or higher I55-13 (VA-) or I114-4 (VA-) - Body ground Always 10 kΩ or higher Result
Proceed to OK NG
Result:
OK
PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE [06/2018 - 01/2019] , or refer to PROBLEM SYMPTOMS TABLE [01/2019 - 03/2019] , or refer to PROBLEM SYMPTOMS TABLE [03/2019 - 09/2019] , or refer to PROBLEM SYMPTOMS TABLE [09/2019 - 04/2020]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
