Data Signal Circuit between Radio Receiver and Stereo Jack Adapter [04/2020 - 11/2022]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 Toyota GR Corolla, 2023 Toyota Corolla, 2022 Toyota Corolla, 2021 Toyota Corolla, and 2020 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

CHECK NO. 2 ANTENNA CORD SUB-ASSEMBLY (RADIO AND DISPLAY RECEIVER ASSEMBLY - NO. 1 STEREO JACK ADAPTER ASSEMBLY)

Disconnect the x2 radio and display receiver assembly connector.
Disconnect the x1 No. 1 stereo jack adapter assembly connector.

Measure the resistance according to the value(s) in the table below.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

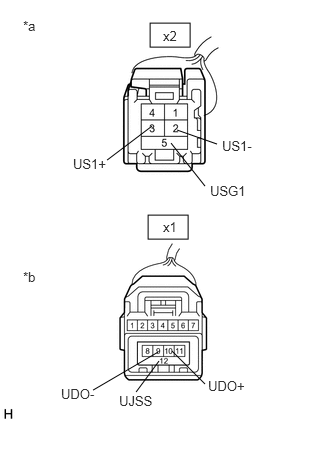

*a	Front view of wire harness connector (to Radio and Display Receiver Assembly)
*b	Front view of wire harness connector (to No. 1 Stereo Jack Adapter Assembly)

Standard Resistance

Tester Connection	Condition	Specified Condition
x2-2 (US1-) - x1-9 (UDO-)	Always	Below 1 Ω
x2-3 (US1+) - x1-10 (UDO+)	Always	Below 1 Ω
x2-5 (USG1) - x1-12 (UJSS)	Always	Below 1 Ω
x2-2 (US1-) or x1-9 (UDO-) - Body ground	Always	10 kΩ or higher
x2-3 (US1+) or x1-10 (UDO+) - Body ground	Always	10 kΩ or higher
x2-5 (USG1) or x1-12 (UJSS) - Body ground	Always	10 kΩ or higher

Result

Proceed to
OK
NG

Result:

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE [04/2020 - 09/2022] , or refer to PROBLEM SYMPTOMS TABLE [09/2022 - 11/2022]

Result:

REPLACE NO. 2 ANTENNA CORD SUB-ASSEMBLY. Refer to REMOVAL [09/2019 - 09/2022] , or refer to REMOVAL [09/2022 - 11/2022]
