Components [01/2019 - 11/2022]

WARNING: This page is about a different car, the 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

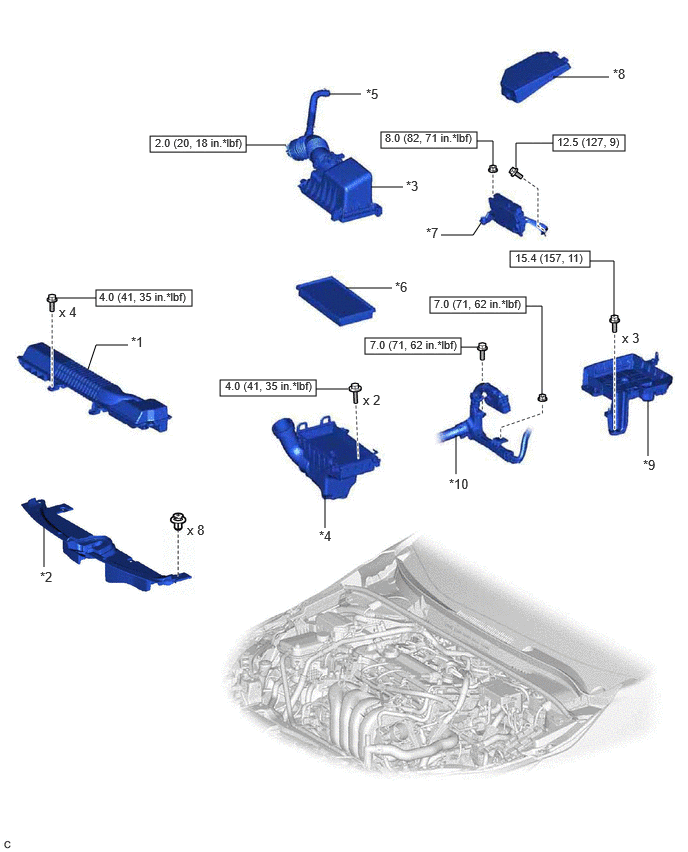

Fig 1: Transmission Control Cable Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	INLET NO. 1 AIR CLEANER	*2	RADIATOR SUPPORT OPENING COVER
*3	AIR CLEANER CAP WITH AIR CLEANER HOSE	*4	AIR CLEANER CASE SUB-ASSEMBLY
*5	NO. 2 VENTILATION HOSE	*6	AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
*7	ECM	*8	NO. 1 RELAY BLOCK COVER
*9	BATTERY CLAMP SUB-ASSEMBLY	*10	ENGINE WIRE
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

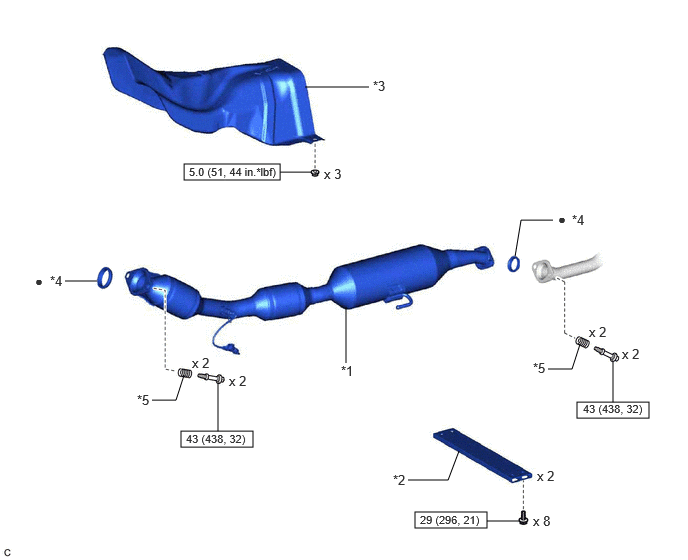

Fig 2: Transmission Control Cable Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)	*2	FRONT FLOOR CENTER BRACE
*3	FRONT NO. 1 FLOOR HEAT INSULATOR	*4	GASKET
*5	COMPRESSION SPRING	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

Fig 3: Transmission Control Cable Replacement Components With Torque Specifications (3 Of 3)

Callout	Description	Callout	Description
*1	TRANSMISSION CONTROL CABLE ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
