Removal [01/2019 - 11/2022]: Procedure

WARNING: This page is about a different car, the 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE NEUTRAL POSITION SWITCH

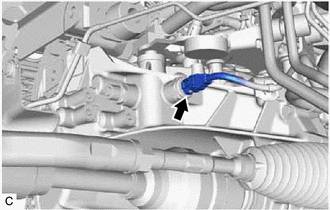

    1. Disconnect the neutral position switch connector.
      GTY851689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

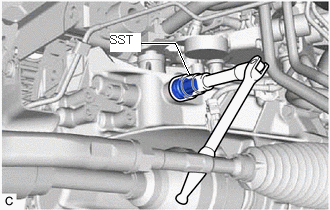

    2. Using SST, remove the neutral position switch and gasket from the manual transmission case.
      • SST: 09817-16011
      GTY872709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
