Components [01/2019 - 11/2022]

WARNING: This page is about a different car, the 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

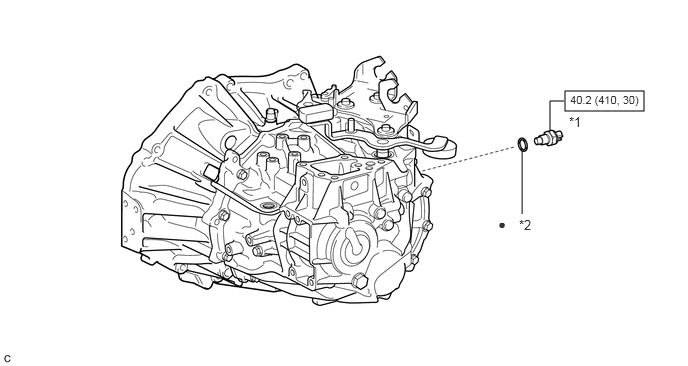

Fig 1: Neutral Position Switch Replacement Components With Torque Specifications [01/2019 - 11/2022]
GTY713790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NEUTRAL POSITION SWITCH *2 GASKET
N.m (kgf/cm, ft.lbf): Specified torque Non-reusable part
