Components [03/2019 - 11/2022]
WARNING: This page is about a different car, the 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

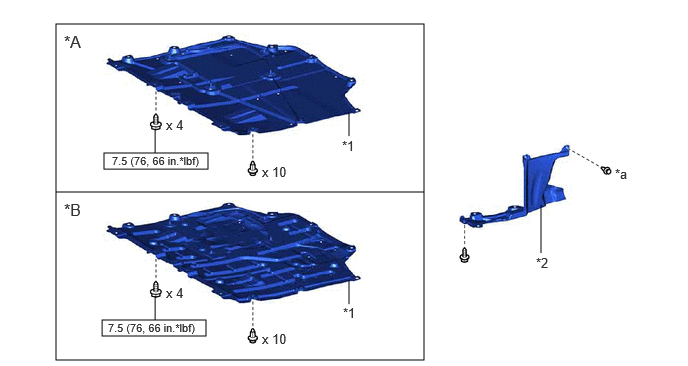

Fig 1: Manual Transaxle Oil Replacement Components With Torque Specifications [03/2019 - 11/2022] (1 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | Type A | *B | Type B |
| *1 | NO. 1 ENGINE UNDER COVER ASSEMBLY | *2 | REAR ENGINE UNDER COVER LH |
| *a | Type C: x 4 Type D: x 5 |
- | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

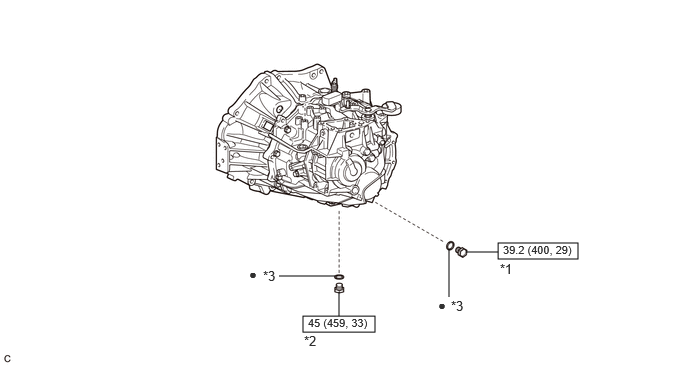

Fig 2: Manual Transaxle Oil Replacement Components With Torque Specifications [03/2019 - 11/2022] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | MANUAL TRANSMISSION FILLER PLUG | *2 | MANUAL TRANSMISSION DRAIN PLUG |
| *3 | GASKET | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
