Components [01/2019 - 11/2022]
WARNING: This page is about a different car, the 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Manual Transaxle Assembly Replacement Components With Torque Specifications [01/2019 - 11/2022] (1 Of 8)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | OUTER COWL TOP PANEL SUB-ASSEMBLY | *2 | NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |
Fig 2: Manual Transaxle Assembly Replacement Components With Torque Specifications [01/2019 - 11/2022] (2 Of 8)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | INLET NO. 1 AIR CLEANER | *2 | RADIATOR SUPPORT OPENING COVER |
| *3 | AIR CLEANER CAP WITH AIR CLEANER HOSE | *4 | AIR CLEANER CASE SUB-ASSEMBLY |
| *5 | NO. 2 VENTILATION HOSE | *6 | AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY |
| *7 | ECM | *8 | NO. 1 RELAY BLOCK COVER |
| *9 | BATTERY CLAMP SUB-ASSEMBLY | *10 | ENGINE WIRE |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
Fig 3: Manual Transaxle Assembly Replacement Components With Torque Specifications [01/2019 - 11/2022] (3 Of 8)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | INLET HOSE | *2 | COLUMN HOLE COVER SILENCER SHEET |
| *3 | NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |

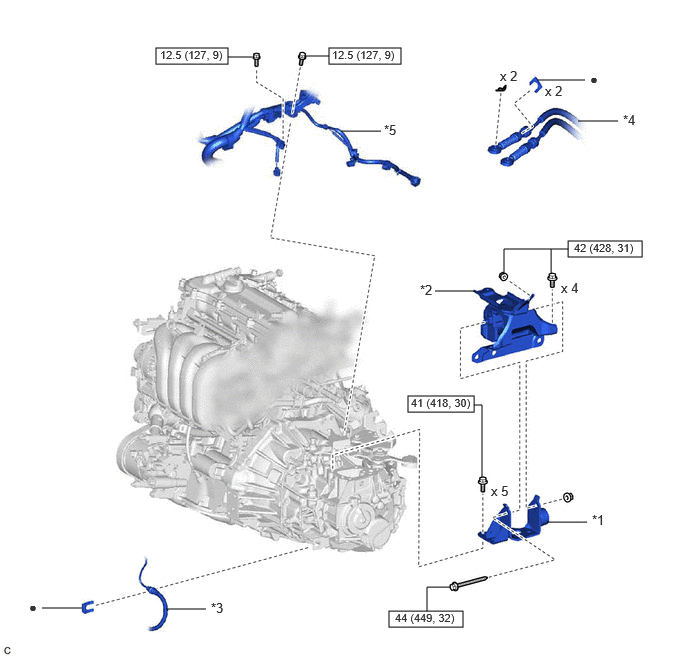

Fig 4: Manual Transaxle Assembly Replacement Components With Torque Specifications [01/2019 - 11/2022] (4 Of 8)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | ENGINE MOUNTING BRACKET LH | *2 | ENGINE MOUNTING INSULATOR LH |
| *3 | NO. 1 CLUTCH HOSE | *4 | TRANSMISSION CONTROL CABLE ASSEMBLY |
| *5 | ENGINE WIRE | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
Fig 5: Manual Transaxle Assembly Replacement Components With Torque Specifications [01/2019 - 11/2022] (5 Of 8)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst) | *2 | COMPRESSION SPRING |
| *3 | EXHAUST PIPE GASKET | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |

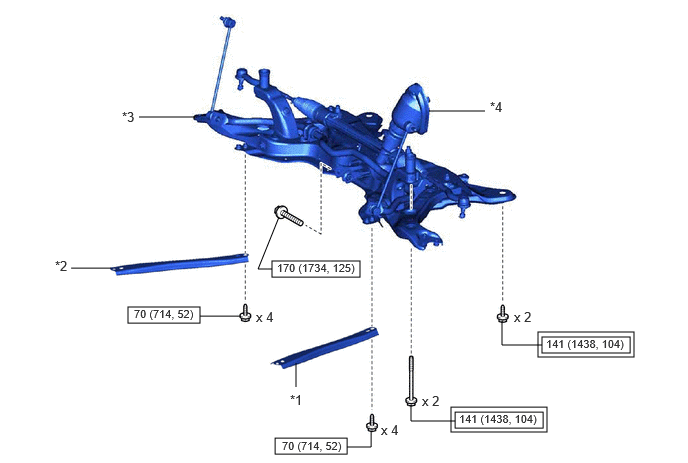

Fig 6: Manual Transaxle Assembly Replacement Components With Torque Specifications [01/2019 - 11/2022] (6 Of 8)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY LH | *2 | REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY RH |
| *3 | FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY | *4 | NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |
Fig 7: Manual Transaxle Assembly Replacement Components With Torque Specifications [01/2019 - 11/2022] (7 Of 8)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | MANUAL TRANSAXLE ASSEMBLY | *2 | NO. 2 ENGINE MOVING CONTROL ROD |
| *3 | WIRE HARNESS CLAMP BRACKET | *4 | ENGINE ASSEMBLY |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

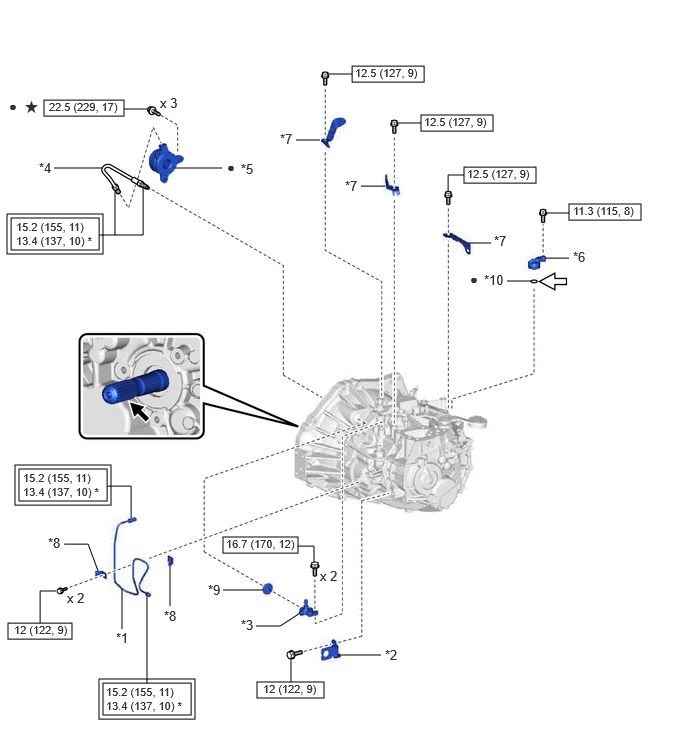

Fig 8: Manual Transaxle Assembly Replacement Components With Torque Specifications [01/2019 - 11/2022] (8 Of 8)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BLEEDER CLUTCH RELEASE TUBE | *2 | CLUTCH FLEXIBLE HOSE BRACKET |
| *3 | CLUTCH RELEASE BLEEDER SUB-ASSEMBLY | *4 | CLUTCH RELEASE CYLINDER TO BLEEDER TUBE |
| *5 | CLUTCH RELEASE CYLINDER WITH BEARING ASSEMBLY | *6 | SPEEDOMETER DRIVEN HOLE COVER SUB-ASSEMBLY |
| *7 | WIRE HARNESS CLAMP BRACKET | *8 | CLAMP |
| *9 | CLUTCH TUBE BOOT | *10 | O-RING |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| * | For use with union nut wrench | • | Non-reusable part |
| Clutch spline grease | Gear oil | ||
| * | Precoated part | - | - |
