Replacement [01/2019 - 11/2022]: Procedure

Refer to REMOVAL [01/2019 - 11/2022]

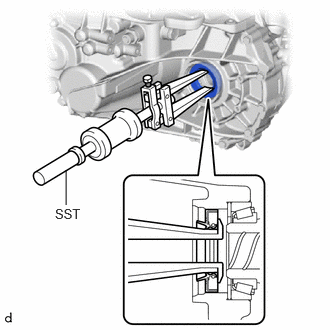

1. Using SST, remove the front drive shaft oil seal LH from the manual transaxle assembly.
   • SST: 09308-00010

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

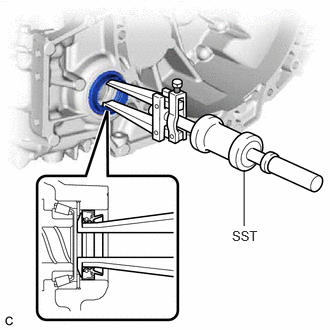

1. Using SST, remove the front drive shaft oil seal RH from the manual transaxle assembly.
   • SST: 09308-00010

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

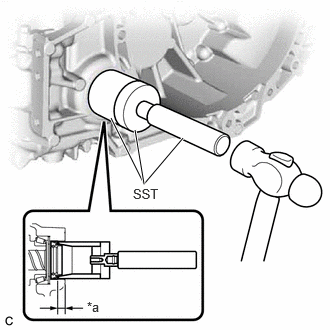

1. Coat the lip of a new front drive shaft oil seal RH with MP grease.
2. Using SST and a hammer, tap in the front drive shaft oil seal RH to the manual transaxle assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Depth

   • SST: 09630-24014
     1. 09620-24051
   • SST: 09950-60011
     1. 09951-00410
     2. 09951-00530
     3. 09952-06010
   • SST: 09950-70010
     1. 09951-07100

   Standard Depth

   1.2 to 2.2 mm (0.0472 to 0.0866 in.)

   NOTE:

   Do not damage the front drive shaft oil seal RH lip.

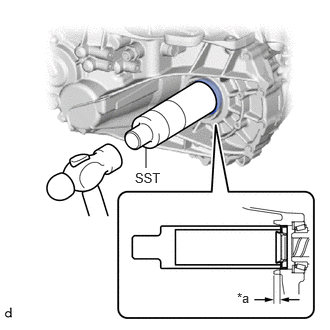

1. Coat the lip of a new front drive shaft oil seal LH with MP grease.
2. Using SST and a hammer, tap in the front drive shaft oil seal LH to the manual transaxle assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Depth

   • SST: 09316-60012
     1. 09316-00011

   Standard Depth

   10.6 to 11.6 mm (0.417 to 0.457 in.)

   NOTE:

   Do not damage the front drive shaft oil seal LH lip.

Refer to INSTALLATION [01/2019 - 09/2022] , or refer to INSTALLATION [09/2022 - 11/2022]
