Components [03/2019 - 11/2022]
WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

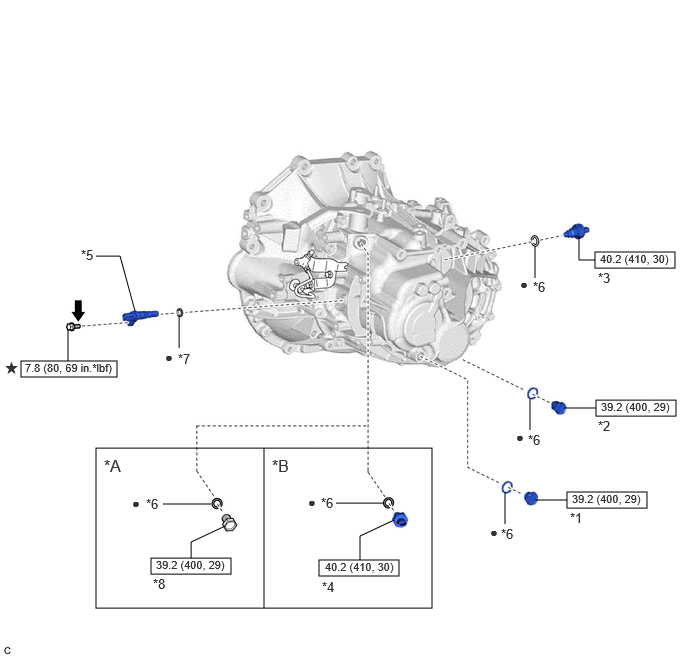

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *A |
w/o Neutral Position Switch |
*B |
w/ Neutral Position Switch |
| *1 |
MANUAL TRANSMISSION FILLER PLUG |
*2 |
MANUAL TRANSMISSION DRAIN PLUG |
| *3 |
BACK-UP LIGHT SWITCH ASSEMBLY |
*4 |
NEUTRAL POSITION SWITCH |
| *5 |
TRANSMISSION REVOLUTION SENSOR |
*6 |
GASKET |
| *7 |
O-RING |
*8 |
MANUAL TRANSMISSION CASE PLUG |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
|
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent |
* |
Precoated part |

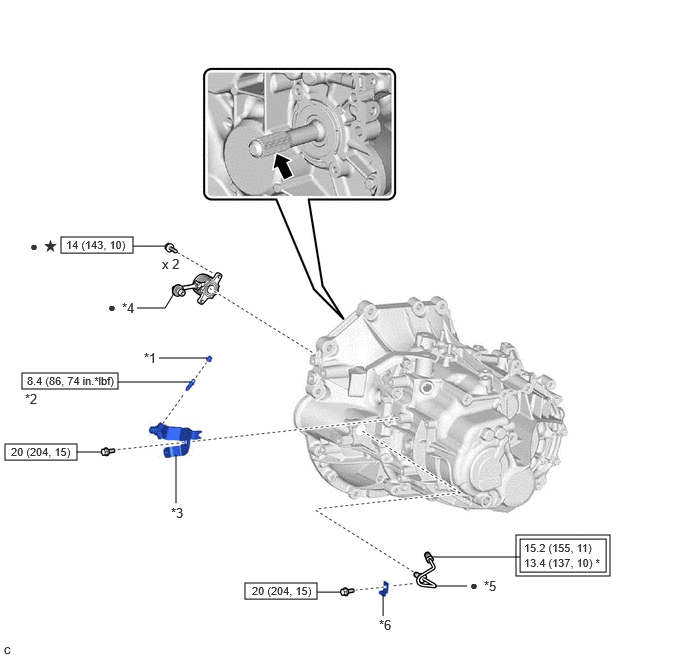

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
RELEASE CYLINDER BLEEDER PLUG CAP |
*2 |
RELEASE CYLINDER BLEEDER PLUG |
| *3 |
CLUTCH RELEASE BLEEDER SUB-ASSEMBLY |
*4 |
CLUTCH RELEASE CYLINDER WITH BEARING ASSEMBLY |
| *5 |
CLUTCH RELEASE CYLINDER WITH BEARING ASSEMBLY TO BLEEDER TUBE |
*6 |
CLAMP |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) |
|
N.m (kgf/cm, ft.lbf): Specified torque |
| * |
For use with union nut wrench |
• |
Non-reusable part |
|
Clutch spline grease |
* |
Precoated part |

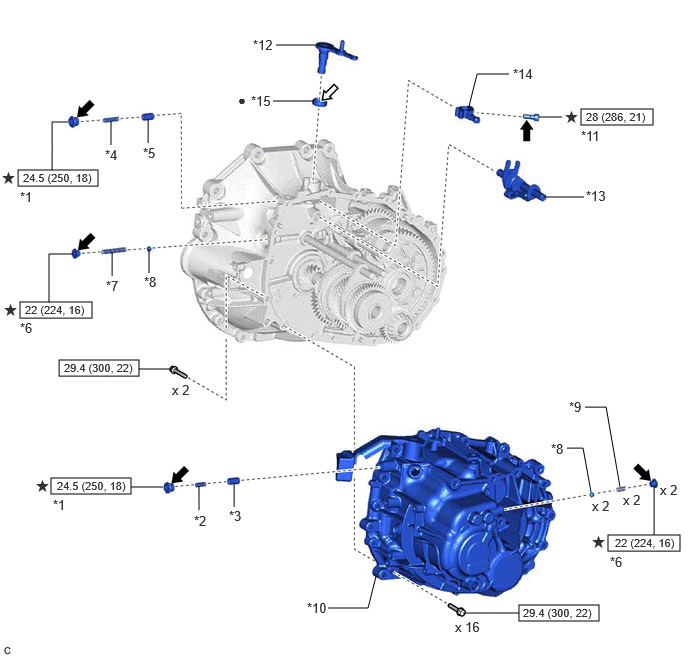

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
SHIFT AND SELECT LEVER SHAFT STRAIGHT SCREW WITH HEAD PLUG |
*2 |
NO. 2 LOCK BALL PIN RETURN SPRING |
| *3 |
LOCK BALL PIN |
*4 |
NO. 1 LOCK BALL PIN RETURN SPRING |
| *5 |
NO. 2 LOCK BALL PIN |
*6 |
SHIFT DETENT BALL PLUG |
| *7 |
NO. 2 SHIFT DETENT BALL COMPRESSION SPRING |
*8 |
SHIFT DETENT BALL |
| *9 |
SHIFT DETENT BALL COMPRESSION SPRING |
*10 |
MANUAL TRANSMISSION CASE |
| *11 |
INNER SELECT LEVER SET BOLT |
*12 |
OUTER SELECT LEVER |
| *13 |
SHIFT AND SELECT LEVER SHAFT ASSEMBLY |
*14 |
INNER SELECT LEVER |
| *15 |
OUTER SELECT LEVER OIL SEAL |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
|
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent |
|
MP grease |
| * |
Precoated part |
- |
- |

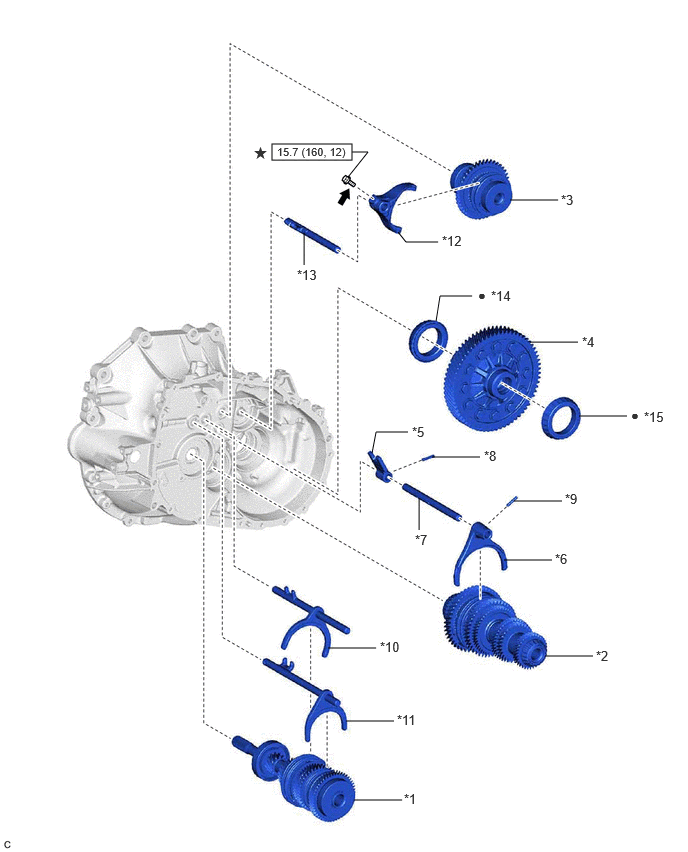

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
INPUT SHAFT ASSEMBLY |
*2 |
OUTPUT SHAFT ASSEMBLY |
| *3 |
NO. 2 OUTPUT SHAFT ASSEMBLY |
*4 |
DIFFERENTIAL CASE ASSEMBLY |
| *5 |
NO. 1 GEAR SHIFT HEAD |
*6 |
NO. 1 GEAR SHIFT FORK ASSEMBLY |
| *7 |
NO. 1 GEAR SHIFT FORK SHAFT |
*8 |
SHIFT HEAD SET SLOTTED SPRING PIN |
| *9 |
SHIFT FORK SLOTTED PIN |
*10 |
NO. 2 GEAR SHIFT FORK ASSEMBLY |
| *11 |
NO. 3 GEAR SHIFT FORK ASSEMBLY |
*12 |
NO. 4 GEAR SHIFT FORK |
| *13 |
NO. 4 GEAR SHIFT FORK SHAFT |
*14 |
FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING (INNER RACE) |
| *15 |
FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING (INNER RACE) |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
|
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent |
* |
Precoated part |

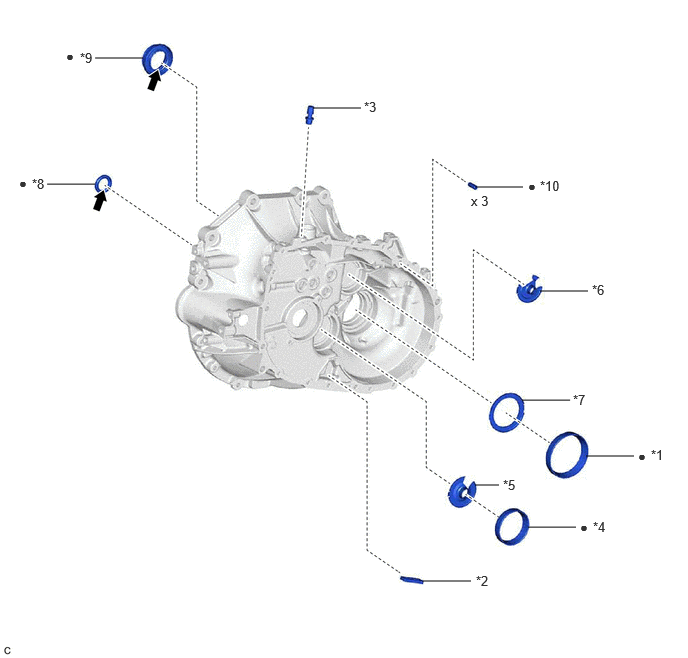

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING (OUTER RACE) |
*2 |
TRANSMISSION MAGNET |
| *3 |
BREATHER PLUG |
*4 |
FRONT OUTPUT SHAFT BEARING (OUTER RACE) |
| *5 |
OUTPUT SHAFT (MTM) COVER |
*6 |
REVERSE GEAR SHAFT COVER |
| *7 |
FRONT DIFFERENTIAL OIL BAFFLE |
*8 |
FRONT TRANSAXLE CASE OIL SEAL |
| *9 |
FRONT DRIVE SHAFT OIL SEAL RH |
*10 |
TRANSAXLE CASE STRAIGHT PIN |
| • |
Non-reusable part |
|
MP grease |

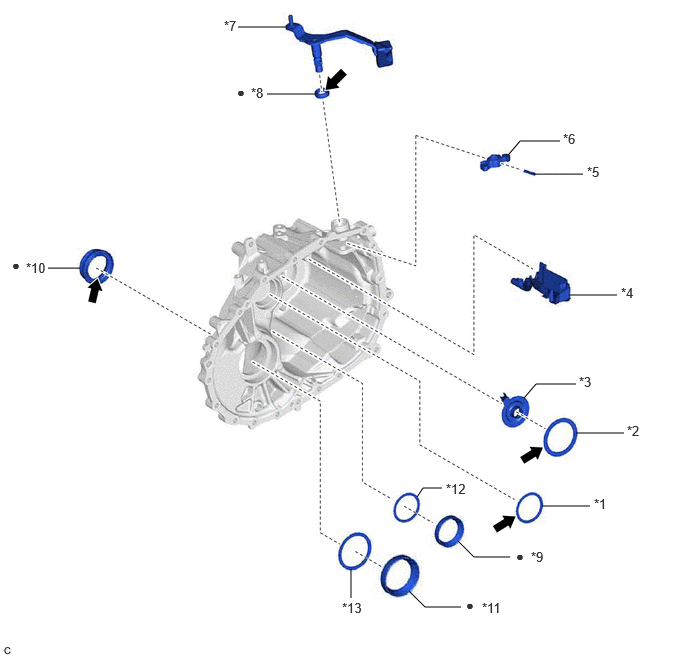

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
REAR REVERSE GEAR SHAFT BEARING SHIM |
*2 |
REAR INPUT SHAFT BEARING SHIM |
| *3 |
INPUT SHAFT (MTM) COVER |
*4 |
NO. 1 OIL RECEIVER PIPE (MTM) |
| *5 |
INNER SHIFT LEVER SLOTTED SPRING PIN |
*6 |
INNER NO. 1 SHIFT LEVER |
| *7 |
OUTER NO. 1 SHIFT LEVER |
*8 |
OUTER SHIFT LEVER OIL SEAL |
| *9 |
REAR OUTPUT SHAFT BEARING (OUTER RACE) |
*10 |
FRONT DRIVE SHAFT OIL SEAL LH |
| *11 |
FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING (OUTER RACE) |
*12 |
REAR OUTPUT SHAFT BEARING SHIM |
| *13 |
FRONT DIFFERENTIAL CASE REAR SHIM |
- |
- |
| • |
Non-reusable part |
|
MP grease |
