Components [06/2018 - 01/2019]
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, 2023 Toyota GR Corolla, 2022 Toyota Corolla, and 2021 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
NO. 4 INSTRUMENT PANEL BRACKET |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
CLUTCH MASTER CYLINDER ASSEMBLY |
*2 |
CLEVIS PIN |
| *3 |
CLUTCH PEDAL SUPPORT ASSEMBLY |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
MP grease |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

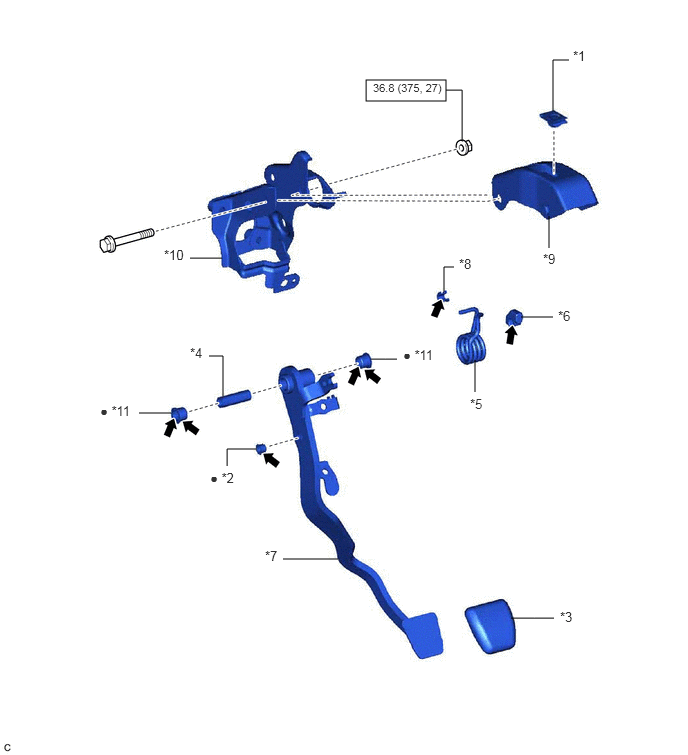

| Callout |
Description |
Callout |
Description |
| *1 |
CLIP NUT |
*2 |
CLUTCH MASTER CYLINDER PUSH ROD CLEVIS BUSHING |
| *3 |
CLUTCH PEDAL PAD |
*4 |
CLUTCH PEDAL SHAFT COLLAR |
| *5 |
CLUTCH PEDAL SPRING |
*6 |
CLUTCH PEDAL SPRING HOLDER |
| *7 |
CLUTCH PEDAL SUB-ASSEMBLY |
*8 |
CLUTCH PEDAL TURNOVER BUSHING |
| *9 |
CLUTCH PEDAL BRACKET SUB-ASSEMBLY |
*10 |
CLUTCH PEDAL SUPPORT SUB-ASSEMBLY |
| *11 |
CLUTCH PEDAL BUSHING |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
MP grease |
- |
- |
