Components [01/2019 - 11/2022]
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, 2023 Toyota GR Corolla, 2022 Toyota Corolla, and 2021 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

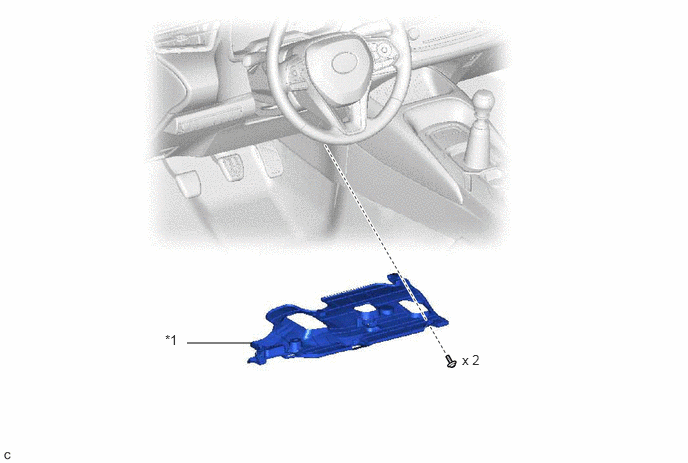

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | - | - |

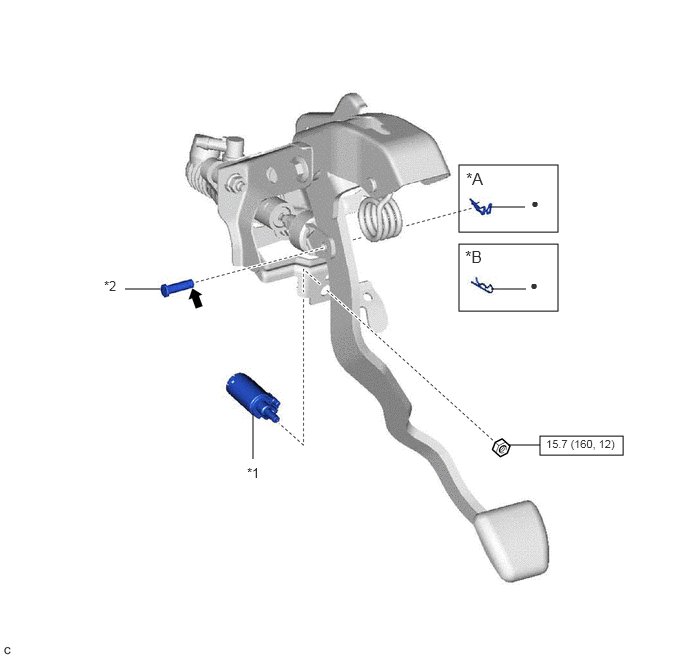

Fig 2: Clutch Pedal Switch Replacement Components With Torque Specifications [01/2019 - 11/2022] (2 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Hatchback | *B | for Sedan |
| *1 | CLUTCH START SWITCH ASSEMBLY | *2 | CLEVIS PIN |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| MP grease | - | - |

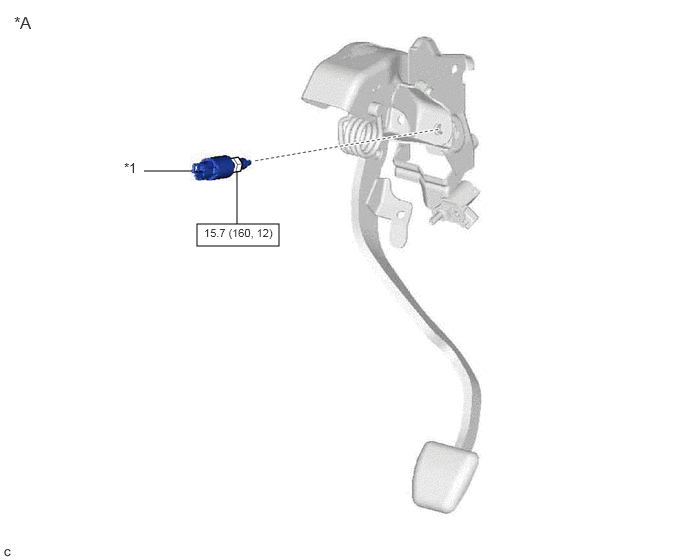

Fig 3: Clutch Pedal Switch Replacement Components With Torque Specifications [01/2019 - 11/2022] (3 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/o Clutch Pedal Stroke Sensor Assembly | - | - |
| *1 | CLUTCH SWITCH ASSEMBLY | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
