Removal [06/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, 2023 Toyota GR Corolla, 2022 Toyota Corolla, and 2021 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE BRAKE BOOSTER ASSEMBLY

    Refer to REMOVAL [06/2018 - 01/2019] , or refer to REMOVAL [01/2019 - 09/2022] , or refer to REMOVAL [09/2022 - ]

  2. DISCONNECT CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE

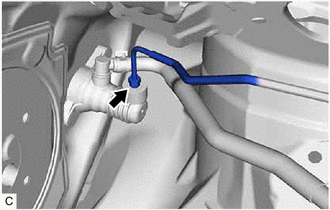

    1. Using a 10 mm union nut wrench, disconnect the clutch master cylinder to flexible hose tube from the clutch master cylinder assembly.
      GTY928256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use a container to collect the fluid.

  3. DISCONNECT NO. 1 CLUTCH RESERVOIR HOSE

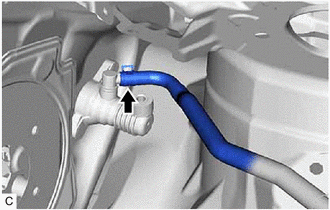

    1. Slide the hose clip and disconnect the No. 1 clutch reservoir hose from the clutch master cylinder assembly.
      GTY847567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use a container to collect the fluid.

  4. DISCONNECT CLUTCH MASTER CYLINDER ASSEMBLY

    See step  2 [06/2018 - 01/2019], or See step  2 [01/2019 - 03/2019], or See step  2 [03/2019 - 09/2022], or See step  3 [09/2022 - 11/2022], or See step  3 [11/2022 - ]

  5. REMOVE CLUTCH MASTER CYLINDER ASSEMBLY

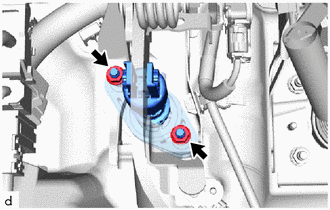

    1. Remove the 2 nuts and clutch master cylinder assembly from the vehicle body.
      GTY868343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the clutch master cylinder gasket from the clutch master cylinder assembly.
