Components [01/2019 - 11/2022]
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, 2023 Toyota GR Corolla, 2022 Toyota Corolla, and 2021 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

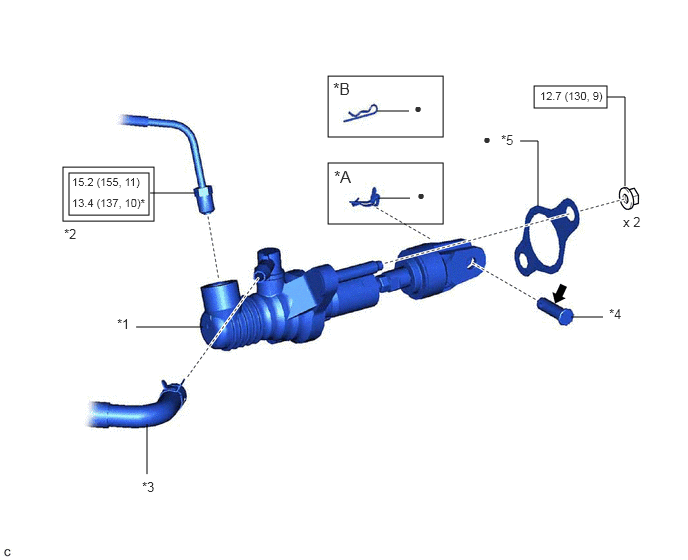

| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Hatchback | *B | for Sedan |
| *1 | CLUTCH MASTER CYLINDER ASSEMBLY | *2 | CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE |
| *3 | NO. 1 CLUTCH RESERVOIR HOSE | *4 | CLEVIS PIN |
| *5 | CLUTCH MASTER CYLINDER GASKET | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque | ||
| * | For use with union nut wrench | • | Non-reusable part |
| MP grease | - | - |
