Components [06/2018 - 11/2022]
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, 2023 Toyota GR Corolla, 2022 Toyota Corolla, and 2021 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

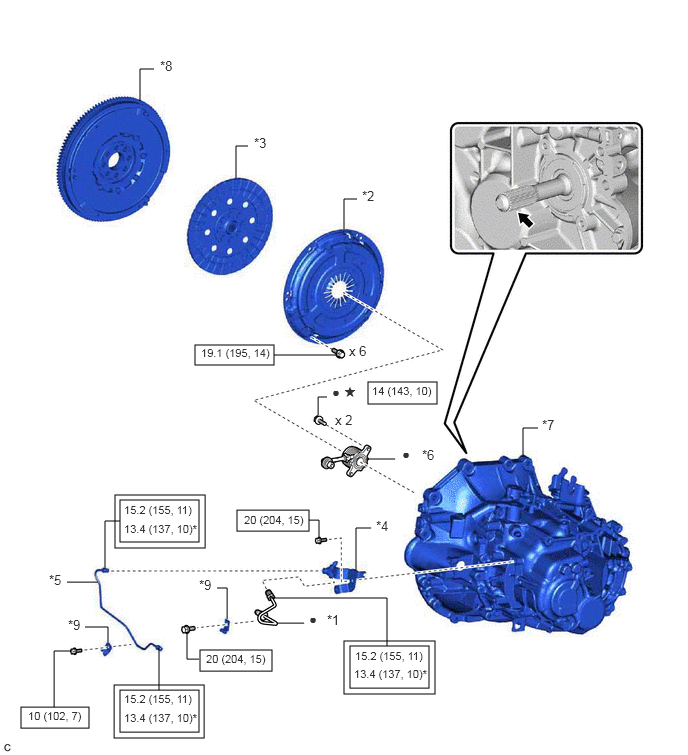

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CLUTCH RELEASE CYLINDER WITH BEARING ASSEMBLY TO BLEEDER TUBE | *2 | CLUTCH COVER ASSEMBLY |
| *3 | CLUTCH DISC ASSEMBLY | *4 | CLUTCH RELEASE BLEEDER SUB-ASSEMBLY |
| *5 | BLEEDER TO FLEXIBLE HOSE TUBE | *6 | CLUTCH RELEASE CYLINDER WITH BEARING ASSEMBLY |
| *7 | MANUAL TRANSAXLE ASSEMBLY | *8 | FLYWHEEL SUB-ASSEMBLY |
| *9 | CLAMP | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque | ||
| * | For use with union nut wrench | • | Non-reusable part |
| Clutch spline grease | * | Precoated part |
