Check Bus 3 Line [09/2022 - 11/2022]: Procedure
- CHECK FOR OPEN IN CAN MAIN BUS LINES
- Disconnect the cable from the negative (-) battery terminal.
- Measure the resistance according to the value(s) in the table below.
*a Component with harness connected
(Central Gateway ECU (Network Gateway ECU))Standard Resistance
Tester Connection Condition Specified Condition I173-30 (CA3H) - I173-29 (CA3L) Cable disconnected from negative (-) battery terminal Below 70 Ω Result
Result OK NG
Result:
NG
See step 62
Result:
OK
See step 2
- CHECK FOR SHORT IN CAN BUS LINES
- Measure the resistance according to the value(s) in the table below.
*a Component with harness connected
(Central Gateway ECU (Network Gateway ECU))Standard Resistance
Tester Connection Condition Specified Condition I173-30 (CA3H) - I173-29 (CA3L) Cable disconnected from negative (-) battery terminal 54 Ω or higher Result
Result OK NG
Result:
NG
See step 43
Result:
OK
See step 3
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO +B IN CAN BUS LINE
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Component with harness connected
(Central Gateway ECU (Network Gateway ECU))- - Standard Resistance
Tester Connection Condition Specified Condition I173-30 (CA3H) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher I173-29 (CA3L) - I26-16 (BAT) Result
Result OK NG
Result:
NG
See step 24
Result:
OK
See step 4
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO GND IN CAN BUS LINE
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Component with harness connected
(Central Gateway ECU (Network Gateway ECU))- - Standard Resistance
Tester Connection Condition Specified Condition I173-30 (CA3H) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher I173-29 (CA3L) - I26-4 (CG) Result
Result OK NG
Result:
OK
REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
See step 5
- Measure the resistance according to the value(s) in the table below.
- CHECK VEHICLE TYPE
Result:
B
See step 15
Result:
A
See step 6
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Disconnect the I214 No. 15 CAN junction connector.
- Measure the resistance according to the value(s) in the table below.

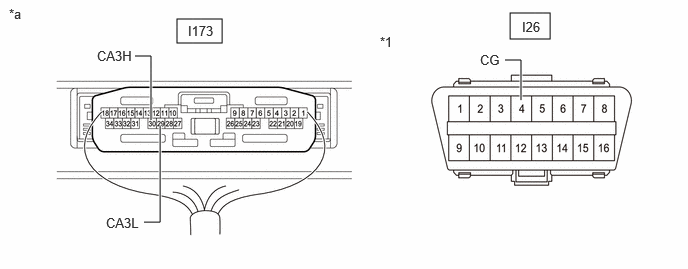

*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition I214-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher I214-14 (CANL) - I26-4 (CG) Result
Result OK NG
Result:
NG
See step 11
Result:
OK
See step 7
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to Radio and Display Receiver Assembly Standard Resistance
Tester Connection Condition Specified Condition I214-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher I214-12 (CANL) - I26-4 (CG) Result
Result OK NG
Result:
NG
See step 12
Result:
OK
See step 8
- Measure the resistance according to the value(s) in the table below.
- CHECK VEHICLE TYPE
- Check vehicle type.
Result
Result Proceed to w/ Telematics Transceiver A w/o Telematics Transceiver B
Result:
B
See step 10
Result:
A
See step 9
- Check vehicle type.
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to DCM (Telematics Transceiver) Standard Resistance
Tester Connection Condition Specified Condition I214-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher I214-13 (CANL) - I26-4 (CG) Result
Result OK NG
Result:
NG
See step 13
Result:
OK
See step 10
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY)
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to Combination Meter Assembly Standard Resistance
Tester Connection Condition Specified Condition I214-4 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher I214-15 (CANL) - I26-4 (CG) Result
Result OK NG
Result:
OK
REPLACE NO. 15 CAN JUNCTION CONNECTOR
Result:
NG
See step 14
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Disconnect the I173 central gateway ECU (network gateway ECU) connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition I214-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher I214-14 (CANL) - I26-4 (CG) Result
Result OK NG
Result:
OK
REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 15 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)
- Disconnect the I175 radio and display receiver assembly connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to Radio and Display Receiver Assembly Standard Resistance
Tester Connection Condition Specified Condition I214-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher I214-12 (CANL) - I26-4 (CG) Result
Result OK NG
Result:
OK
REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 15 CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))
- Disconnect the I143 DCM (telematics transceiver) connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to DCM (Telematics Transceiver) Standard Resistance
Tester Connection Condition Specified Condition I214-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher I214-13 (CANL) - I26-4 (CG) Result
Result OK NG
Result:
OK
REPLACE DCM (TELEMATICS TRANSCEIVER)
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 15 CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY)
- Disconnect the I5 combination meter assembly connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to Combination Meter Assembly Standard Resistance
Tester Connection Condition Specified Condition I214-4 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher I214-15 (CANL) - I26-4 (CG) Result
Result OK NG
Result:
OK
REPLACE COMBINATION METER ASSEMBLY
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 15 CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY)
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Disconnect the I188 No. 15 CAN junction connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition I188-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher I188-13 (CANL) - I26-4 (CG) Result
Result OK NG
Result:
NG
See step 20
Result:
OK
See step 16
- CHECK VEHICLE TYPE
- Check vehicle type.
Result
Result Proceed to w/ Radio and Display Receiver Assembly A w/o Radio and Display Receiver Assembly B
Result:
B
See step 18
Result:
A
See step 17
- Check vehicle type.
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to Radio and Display Receiver Assembly Standard Resistance
Tester Connection Condition Specified Condition I188-4 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher I188-15 (CANL) - I26-4 (CG) Result
Result OK NG
Result:
NG
See step 21
Result:
OK
See step 18
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to DCM (Telematics Transceiver) Standard Resistance
Tester Connection Condition Specified Condition I188-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher I188-14 (CANL) - I26-4 (CG) Result
Result OK NG
Result:
NG
See step 22
Result:
OK
See step 19
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY)
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to Combination Meter Assembly Standard Resistance
Tester Connection Condition Specified Condition I188-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher I188-12 (CANL) - I26-4 (CG) Result
Result OK NG
Result:
OK
REPLACE NO. 15 CAN JUNCTION CONNECTOR
Result:
NG
See step 23
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Disconnect the I173 central gateway ECU (network gateway ECU) connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition I188-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher I188-13 (CANL) - I26-4 (CG) Result
Result OK NG
Result:
OK
REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 15 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)
- Disconnect the I175 radio and display receiver assembly connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to Radio and Display Receiver Assembly Standard Resistance
Tester Connection Condition Specified Condition I188-4 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher I188-15 (CANL) - I26-4 (CG) Result
Result OK NG
Result:
OK
REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 15 CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))
- Disconnect the I143 DCM (telematics transceiver) connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to DCM (Telematics Transceiver) Standard Resistance
Tester Connection Condition Specified Condition I188-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher I188-14 (CANL) - I26-4 (CG) Result
Result OK NG
Result:
OK
REPLACE DCM (TELEMATICS TRANSCEIVER)
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 15 CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY)
- Disconnect the I5 combination meter assembly connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to Combination Meter Assembly Standard Resistance
Tester Connection Condition Specified Condition I188-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher I188-12 (CANL) - I26-4 (CG) Result
Result OK NG
Result:
OK
REPLACE COMBINATION METER ASSEMBLY
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 15 CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY)
- CHECK VEHICLE TYPE
Result:
B
See step 34
Result:
A
See step 25
- CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 15 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Disconnect the I214 No. 15 CAN junction connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition I214-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher I214-14 (CANL) - I26-16 (BAT) Result
Result OK NG
Result:
NG
See step 30
Result:
OK
See step 26
- CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 15 CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to Radio and Display Receiver Assembly Standard Resistance
Tester Connection Condition Specified Condition I214-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher I214-12 (CANL) - I26-16 (BAT) Result
Result OK NG
Result:
NG
See step 31
Result:
OK
See step 27
- Measure the resistance according to the value(s) in the table below.
- CHECK VEHICLE TYPE
- Check vehicle type.
Result
Result Proceed to w/ Telematics Transceiver A w/o Telematics Transceiver B
Result:
B
See step 29
Result:
A
See step 28
- Check vehicle type.
- CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 15 CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to DCM (Telematics Transceiver) Standard Resistance
Tester Connection Condition Specified Condition I214-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher I214-13 (CANL) - I26-16 (BAT) Result
Result OK NG
Result:
NG
See step 32
Result:
OK
See step 29
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 15 CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY)
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to Combination Meter Assembly Standard Resistance
Tester Connection Condition Specified Condition I214-4 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher I214-15 (CANL) - I26-16 (BAT) Result
Result OK NG
Result:
OK
REPLACE NO. 15 CAN JUNCTION CONNECTOR
Result:
NG
See step 33
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 15 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Disconnect the I173 central gateway ECU (network gateway ECU) connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition I214-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher I214-14 (CANL) - I26-16 (BAT) Result
Result OK NG
Result:
OK
REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 15 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 15 CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)
- Disconnect the I175 radio and display receiver assembly connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to Radio and Display Receiver Assembly Standard Resistance
Tester Connection Condition Specified Condition I214-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher I214-12 (CANL) - I26-16 (BAT) Result
Result OK NG
Result:
OK
REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 15 CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)
- CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 15 CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))
- Disconnect the I143 DCM (telematics transceiver) connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to DCM (Telematics Transceiver) Standard Resistance
Tester Connection Condition Specified Condition I214-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher I214-13 (CANL) - I26-16 (BAT) Result
Result OK NG
Result:
OK
REPLACE DCM (TELEMATICS TRANSCEIVER)
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 15 CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))
- CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 15 CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY)
- Disconnect the I5 combination meter assembly connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to Combination Meter Assembly Standard Resistance
Tester Connection Condition Specified Condition I214-4 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher I214-15 (CANL) - I26-16 (BAT) Result
Result OK NG
Result:
OK
REPLACE COMBINATION METER ASSEMBLY
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 15 CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY)
- CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 15 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Disconnect the I188 No. 15 CAN junction connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition I188-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher I188-13 (CANL) - I26-16 (BAT) Result
Result OK NG
Result:
NG
See step 39
Result:
OK
See step 35
- CHECK VEHICLE TYPE
- Check vehicle type.
Result
Result Proceed to w/ Radio and Display Receiver Assembly A w/o Radio and Display Receiver Assembly B
Result:
B
See step 37
Result:
A
See step 36
- Check vehicle type.
- CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 15 CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to Radio and Display Receiver Assembly Standard Resistance
Tester Connection Condition Specified Condition I188-4 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher I188-15 (CANL) - I26-16 (BAT) Result
Result OK NG
Result:
NG
See step 40
Result:
OK
See step 37
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 15 CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to DCM (Telematics Transceiver) Standard Resistance
Tester Connection Condition Specified Condition I188-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher I188-14 (CANL) - I26-16 (BAT) Result
Result OK NG
Result:
NG
See step 41
Result:
OK
See step 38
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 15 CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY)
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to Combination Meter Assembly Standard Resistance
Tester Connection Condition Specified Condition I188-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher I188-12 (CANL) - I26-16 (BAT) Result
Result OK NG
Result:
OK
REPLACE NO. 15 CAN JUNCTION CONNECTOR
Result:
NG
See step 42
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 15 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Disconnect the I173 central gateway ECU (network gateway ECU) connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition I188-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher I188-13 (CANL) - I26-16 (BAT) Result
Result OK NG
Result:
OK
REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 15 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 15 CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)
- Disconnect the I175 radio and display receiver assembly connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to Radio and Display Receiver Assembly Standard Resistance
Tester Connection Condition Specified Condition I188-4 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher I188-15 (CANL) - I26-16 (BAT) Result
Result OK NG
Result:
OK
REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 15 CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)
- CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 15 CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))
- Disconnect the I143 DCM (telematics transceiver) connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to DCM (Telematics Transceiver) Standard Resistance
Tester Connection Condition Specified Condition I188-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher I188-14 (CANL) - I26-16 (BAT) Result
Result OK NG
Result:
OK
REPLACE DCM (TELEMATICS TRANSCEIVER)
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 15 CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))
- CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 15 CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY)
- Disconnect the I5 combination meter assembly connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to Combination Meter Assembly Standard Resistance
Tester Connection Condition Specified Condition I188-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher I188-12 (CANL) - I26-16 (BAT) Result
Result OK NG
Result:
OK
REPLACE COMBINATION METER ASSEMBLY
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 15 CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY)
- CHECK VEHICLE TYPE
Result:
B
See step 53
Result:
A
See step 44
- CHECK FOR SHORT IN CAN BUS LINES (NO. 15 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Disconnect the I214 No. 15 CAN junction connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition I214-3 (CANH) - I214-14 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
NG
See step 49
Result:
OK
See step 45
- CHECK FOR SHORT IN CAN BUS LINES (NO. 15 CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to Radio and Display Receiver Assembly Standard Resistance
Tester Connection Condition Specified Condition I214-1 (CANH) - I214-12 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher Result
Result OK NG
Result:
NG
See step 50
Result:
OK
See step 46
- Measure the resistance according to the value(s) in the table below.
- CHECK VEHICLE TYPE
- Check vehicle type.
Result
Result Proceed to w/ Telematics Transceiver A w/o Telematics Transceiver B
Result:
B
See step 48
Result:
A
See step 47
- Check vehicle type.
- CHECK FOR SHORT IN CAN BUS LINES (NO. 15 CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to DCM (Telematics Transceiver) Standard Resistance
Tester Connection Condition Specified Condition I214-2 (CANH) - I214-13 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher Result
Result OK NG
Result:
NG
See step 51
Result:
OK
See step 48
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT IN CAN BUS LINES (NO. 15 CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY)
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to Combination Meter Assembly Standard Resistance
Tester Connection Condition Specified Condition I214-4 (CANH) - I214-15 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
OK
REPLACE NO. 15 CAN JUNCTION CONNECTOR
Result:
NG
See step 52
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT IN CAN BUS LINES (NO. 15 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Disconnect the I173 central gateway ECU (network gateway ECU) connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition I214-3 (CANH) - I214-14 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher Result
Result OK NG
Result:
OK
REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 15 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- CHECK FOR SHORT IN CAN BUS LINES (NO. 15 CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)
- Disconnect the I175 radio and display receiver assembly connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to Radio and Display Receiver Assembly Standard Resistance
Tester Connection Condition Specified Condition I214-1 (CANH) - I214-12 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher Result
Result OK NG
Result:
OK
REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 15 CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)
- CHECK FOR SHORT IN CAN BUS LINES (NO. 15 CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))
- Disconnect the I143 DCM (telematics transceiver) connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to DCM (Telematics Transceiver) Standard Resistance
Tester Connection Condition Specified Condition I214-2 (CANH) - I214-13 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher Result
Result OK NG
Result:
OK
REPLACE DCM (TELEMATICS TRANSCEIVER)
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 15 CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))
- CHECK FOR SHORT IN CAN BUS LINES (NO. 15 CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY)
- Disconnect the I5 combination meter assembly connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to Combination Meter Assembly Standard Resistance
Tester Connection Condition Specified Condition I214-4 (CANH) - I214-15 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher Result
Result OK NG
Result:
OK
REPLACE COMBINATION METER ASSEMBLY
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 15 CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY)
- CHECK FOR SHORT IN CAN BUS LINES (NO. 15 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Disconnect the I188 No. 15 CAN junction connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition I188-2 (CANH) - I188-13 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
NG
See step 58
Result:
OK
See step 54
- CHECK VEHICLE TYPE
- Check vehicle type.
Result
Result Proceed to w/ Radio and Display Receiver Assembly A w/o Radio and Display Receiver Assembly B
Result:
B
See step 56
Result:
A
See step 55
- Check vehicle type.
- CHECK FOR SHORT IN CAN BUS LINES (NO. 15 CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to Radio and Display Receiver Assembly Standard Resistance
Tester Connection Condition Specified Condition I188-4 (CANH) - I188-15 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher Result
Result OK NG
Result:
NG
See step 59
Result:
OK
See step 56
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT IN CAN BUS LINES (NO. 15 CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to DCM (Telematics Transceiver) Standard Resistance
Tester Connection Condition Specified Condition I188-3 (CANH) - I188-14 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher Result
Result OK NG
Result:
NG
See step 60
Result:
OK
See step 57
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT IN CAN BUS LINES (NO. 15 CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY)
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to Combination Meter Assembly Standard Resistance
Tester Connection Condition Specified Condition I188-1 (CANH) - I188-12 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
OK
REPLACE NO. 15 CAN JUNCTION CONNECTOR
Result:
NG
See step 61
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT IN CAN BUS LINES (NO. 15 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Disconnect the I173 central gateway ECU (network gateway ECU) connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition I188-2 (CANH) - I188-13 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher Result
Result OK NG
Result:
OK
REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 15 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- CHECK FOR SHORT IN CAN BUS LINES (NO. 15 CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)
- Disconnect the I175 radio and display receiver assembly connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to Radio and Display Receiver Assembly Standard Resistance
Tester Connection Condition Specified Condition I188-4 (CANH) - I188-15 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher Result
Result OK NG
Result:
OK
REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 15 CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)
- CHECK FOR SHORT IN CAN BUS LINES (NO. 15 CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))
- Disconnect the I143 DCM (telematics transceiver) connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to DCM (Telematics Transceiver) Standard Resistance
Tester Connection Condition Specified Condition I188-3 (CANH) - I188-14 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher Result
Result OK NG
Result:
OK
REPLACE DCM (TELEMATICS TRANSCEIVER)
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 15 CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))
- CHECK FOR SHORT IN CAN BUS LINES (NO. 15 CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY)
- Disconnect the I5 combination meter assembly connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to Combination Meter Assembly Standard Resistance
Tester Connection Condition Specified Condition I188-1 (CANH) - I188-12 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher Result
Result OK NG
Result:
OK
REPLACE COMBINATION METER ASSEMBLY
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 15 CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY)
- CHECK FOR OPEN IN CAN MAIN BUS LINES (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Disconnect the I173 central gateway ECU (network gateway ECU) connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition I173-30 (CA3H) - I173-29 (CA3L) Cable disconnected from negative (-) battery terminal 108 to 132 Ω *a Front view of wire harness connector
(to Central Gateway ECU (Network Gateway ECU))Result
Result OK NG
Result:
OK
REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
See step 63
- CHECK VEHICLE TYPE
Result:
B
See step 67
Result:
A
See step 64
- CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 15 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Reconnect the I173 central gateway ECU (network gateway ECU) connector.
- Disconnect the I214 No. 15 CAN junction connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition I214-3 (CANH) - I214-14 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 15 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
Result:
OK
See step 65
- CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 15 CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY)
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to Combination Meter Assembly Standard Resistance
Tester Connection Condition Specified Condition I214-4 (CANH) - I214-15 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
OK
REPLACE NO. 15 CAN JUNCTION CONNECTOR
Result:
NG
See step 66
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR OPEN IN CAN MAIN BUS LINES (COMBINATION METER ASSEMBLY)
- Reconnect the I214 No. 15 CAN junction connector.
- Disconnect the I5 combination meter assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition I5-31 (CANH) - I5-14 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω *a Front view of wire harness connector
(to Combination Meter Assembly)Result
Result OK NG
Result:
OK
REPLACE COMBINATION METER ASSEMBLY
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (COMBINATION METER ASSEMBLY - NO. 15 CAN JUNCTION CONNECTOR)
- CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 15 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Reconnect the I173 central gateway ECU (network gateway ECU) connector.
- Disconnect the I188 No. 15 CAN junction connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition I188-2 (CANH) - I188-13 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 15 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
Result:
OK
See step 68
- CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 15 CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY)
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 15 CAN Junction Connector)*b to Combination Meter Assembly Standard Resistance
Tester Connection Condition Specified Condition I188-1 (CANH) - I188-12 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
OK
REPLACE NO. 15 CAN JUNCTION CONNECTOR
Result:
NG
See step 69
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR OPEN IN CAN MAIN BUS LINES (COMBINATION METER ASSEMBLY)
- Reconnect the I188 No. 15 CAN junction connector.
- Disconnect the I5 combination meter assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition I5-31 (CANH) - I5-14 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω *a Front view of wire harness connector
(to Combination Meter Assembly)Result
Result OK NG
Result:
OK
REPLACE COMBINATION METER ASSEMBLY
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (COMBINATION METER ASSEMBLY - NO. 15 CAN JUNCTION CONNECTOR)
