Check Bus 1 Line [09/2022 - 11/2022]: Procedure
- CHECK FOR OPEN IN CAN MAIN BUS LINES
- Disconnect the cable from the negative (-) battery terminal.
- Measure the resistance according to the value(s) in the table below.
*a Component with harness connected
(Central Gateway ECU (Network Gateway ECU))Standard Resistance

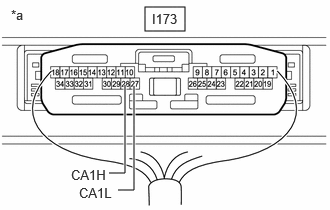

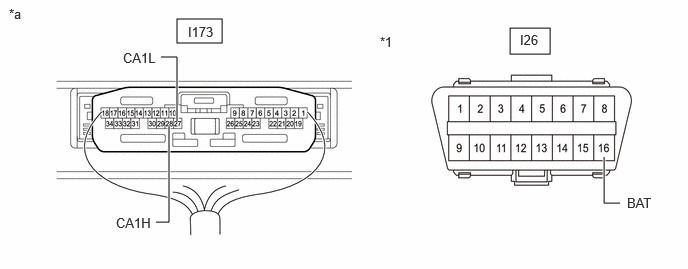

Tester Connection Condition Specified Condition I173-28 (CA1H) - I173-27 (CA1L) Cable disconnected from negative (-) battery terminal Below 70 Ω Result
Result OK NG
Result:
NG
See step 107
Result:
OK
See step 2
- CHECK FOR SHORT IN CAN BUS LINES
- Measure the resistance according to the value(s) in the table below.
*a Component with harness connected
(Central Gateway ECU (Network Gateway ECU))Standard Resistance
Tester Connection Condition Specified Condition I173-28 (CA1H) - I173-27 (CA1L) Cable disconnected from negative (-) battery terminal 54 Ω or higher Result
Result OK NG
Result:
NG
See step 73
Result:
OK
See step 3
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO +B IN CAN BUS LINE
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Component with harness connected
(Central Gateway ECU (Network Gateway ECU))- - Standard Resistance
Tester Connection Condition Specified Condition I173-28 (CA1H) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher I173-27 (CA1L) - I26-16 (BAT) Result
Result OK NG
Result:
NG
See step 39
Result:
OK
See step 4
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO GND IN CAN BUS LINE
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Component with harness connected
(Central Gateway ECU (Network Gateway ECU))- - Standard Resistance

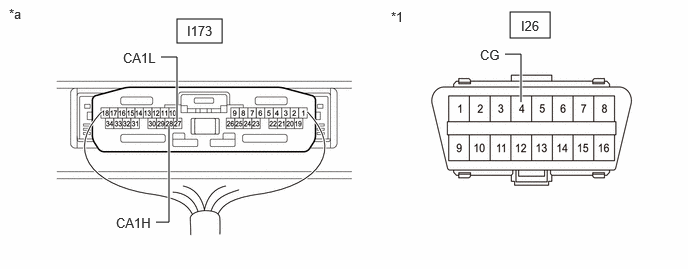

Tester Connection Condition Specified Condition I173-28 (CA1H) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher I173-27 (CA1L) - I26-4 (CG) Result
Result OK NG
Result:
OK
REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
See step 5
- Measure the resistance according to the value(s) in the table below.
- CHECK VEHICLE TYPE
Result:
B
See step 26
Result:
A
See step 6
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 18 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Disconnect the I192 No. 18 CAN junction connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 18 CAN Junction Connector)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition I192-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher I192-7 (CANL) - I26-4 (CG) Result
Result OK NG
Result:
NG
See step 8
Result:
OK
See step 7
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 18 CAN JUNCTION CONNECTOR - FORWARD RECOGNITION CAMERA)
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 18 CAN Junction Connector)*b to Forward Recognition Camera Standard Resistance
Tester Connection Condition Specified Condition I192-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher I192-6 (CANL) - I26-4 (CG) Result
Result OK NG
Result:
OK
REPLACE NO. 18 CAN JUNCTION CONNECTOR
Result:
NG
See step 9
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 18 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Disconnect the I173 central gateway ECU (network gateway ECU) connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 18 CAN Junction Connector)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition I192-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher I192-7 (CANL) - I26-4 (CG) Result
Result OK NG
Result:
OK
REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 18 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- CHECK FOR SHORT TO GND IN CAN BUS LINE (FORWARD RECOGNITION CAMERA - NO. 18 CAN JUNCTION CONNECTOR)

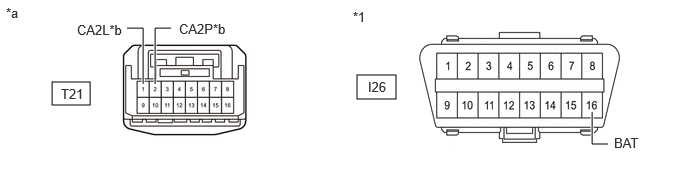

- Disconnect the T21 forward recognition camera connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to Forward Recognition Camera)*b to No. 18 CAN Junction Connector Standard Resistance

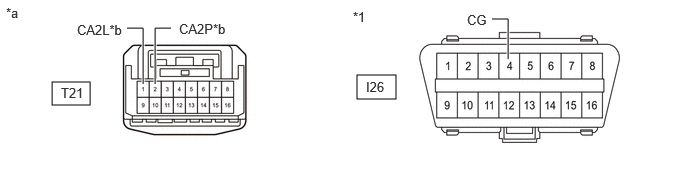

Tester Connection Condition Specified Condition T21-2 (CA2P) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher T21-1 (CA2L) - I26-4 (CG) Result
Result OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (FORWARD RECOGNITION CAMERA - NO. 18 CAN JUNCTION CONNECTOR)
Result:
OK
See step 10
- CHECK FOR SHORT TO GND IN CAN BUS LINE (FORWARD RECOGNITION CAMERA - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to Forward Recognition Camera)*b to Millimeter Wave Radar Sensor Assembly Standard Resistance
Tester Connection Condition Specified Condition T21-10 (CA1P) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher T21-9 (CA1N) - I26-4 (CG) Result
Result OK NG
Result:
OK
REPLACE FORWARD RECOGNITION CAMERA
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
See step 11
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO GND IN CAN BUS LINE (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - FORWARD RECOGNITION CAMERA)

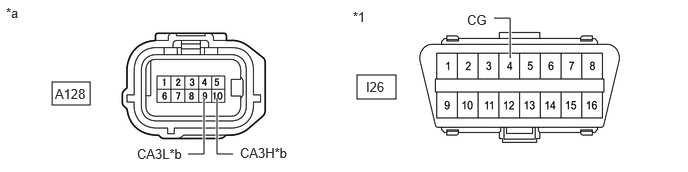

- Disconnect the A128 millimeter wave radar sensor assembly connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to Millimeter Wave Radar Sensor Assembly)*b to Forward Recognition Camera Standard Resistance
Tester Connection Condition Specified Condition A128-10 (CA3H) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher A128-9 (CA3L) - I26-4 (CG) Result
Result OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - FORWARD RECOGNITION CAMERA)
Result:
OK
See step 12
- CHECK FOR SHORT TO GND IN CAN BUS LINE (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - NO. 19 CAN JUNCTION CONNECTOR)
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to Millimeter Wave Radar Sensor Assembly)*b to No. 19 CAN Junction Connector Standard Resistance
Tester Connection Condition Specified Condition A128-4 (CA2H) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher A128-3 (CA2L) - I26-4 (CG) Result
Result OK NG
Result:
OK
REPLACE MILLIMETER WAVE RADAR SENSOR ASSEMBLY
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
See step 13
- Measure the resistance according to the value(s) in the table below.
- CHECK VEHICLE TYPE
Result:
B
See step 20
Result:
A
See step 14
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
- Disconnect the O179 No. 19 CAN junction connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to Millimeter Wave Radar Sensor Assembly Standard Resistance
Tester Connection Condition Specified Condition O179-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher O179-5 (CANL) - I26-4 (CG) Result
Result OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
Result:
OK
See step 15
- CHECK VEHICLE TYPE
- Check vehicle type.
Result
Result Proceed to w/ Blind Spot Monitor System A w/o Blind Spot Monitor System B
Result:
B
See step 17
Result:
A
See step 16
- Check vehicle type.
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to Blind Spot Monitor Sensor LH (B) Standard Resistance
Tester Connection Condition Specified Condition O179-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher O179-7 (CANL) - I26-4 (CG) Result
Result OK NG
Result:
NG
See step 18
Result:
OK
See step 17
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - CAN JUNCTION TERMINAL)
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to CAN Junction Terminal Standard Resistance
Tester Connection Condition Specified Condition O179-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher O179-6 (CANL) - I26-4 (CG) Result
Result OK NG
Result:
OK
REPLACE NO. 19 CAN JUNCTION CONNECTOR
Result:
NG
See step 19
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))
- Disconnect the O57 blind spot monitor sensor LH (B) connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to Blind Spot Monitor Sensor LH (B) Standard Resistance
Tester Connection Condition Specified Condition O179-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher O179-7 (CANL) - I26-4 (CG) Result
Result OK NG
Result:
OK
REPLACE BLIND SPOT MONITOR SENSOR LH (B)
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - CAN JUNCTION TERMINAL)
- Disconnect the O95 CAN junction terminal connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to CAN Junction Terminal Standard Resistance
Tester Connection Condition Specified Condition O179-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher O179-6 (CANL) - I26-4 (CG) Result
Result OK NG
Result:
OK
REPLACE CAN JUNCTION TERMINAL
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - CAN JUNCTION TERMINAL)
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
- Disconnect the O203 No. 19 CAN junction connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to Millimeter Wave Radar Sensor Assembly Standard Resistance
Tester Connection Condition Specified Condition O203-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher O203-5 (CANL) - I26-4 (CG) Result
Result OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
Result:
OK
See step 21
- CHECK VEHICLE TYPE
- Check vehicle type.
Result
Result Proceed to w/ Blind Spot Monitor System A w/o Blind Spot Monitor System B
Result:
B
See step 23
Result:
A
See step 22
- Check vehicle type.
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to Blind Spot Monitor Sensor LH (B) Standard Resistance
Tester Connection Condition Specified Condition O203-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher O203-7 (CANL) - I26-4 (CG) Result
Result OK NG
Result:
NG
See step 24
Result:
OK
See step 23
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - CAN JUNCTION TERMINAL)
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to CAN Junction Terminal Standard Resistance
Tester Connection Condition Specified Condition O203-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher O203-6 (CANL) - I26-4 (CG) Result
Result OK NG
Result:
OK
REPLACE NO. 19 CAN JUNCTION CONNECTOR
Result:
NG
See step 25
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))
- Disconnect the O57 blind spot monitor sensor LH (B) connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to Blind Spot Monitor Sensor LH (B) Standard Resistance
Tester Connection Condition Specified Condition O203-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher O203-7 (CANL) - I26-4 (CG) Result
Result OK NG
Result:
OK
REPLACE BLIND SPOT MONITOR SENSOR LH (B)
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - CAN JUNCTION TERMINAL)
- Disconnect the O95 CAN junction terminal connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to CAN Junction Terminal Standard Resistance
Tester Connection Condition Specified Condition O203-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher O203-6 (CANL) - I26-4 (CG) Result
Result OK NG
Result:
OK
REPLACE CAN JUNCTION TERMINAL
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - CAN JUNCTION TERMINAL)
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 18 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Disconnect the I192 No. 18 CAN junction connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 18 CAN Junction Connector)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition I192-4 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher I192-8 (CANL) - I26-4 (CG) Result
Result OK NG
Result:
NG
See step 28
Result:
OK
See step 27
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 18 CAN JUNCTION CONNECTOR - FORWARD RECOGNITION CAMERA)
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 18 CAN Junction Connector)*b to Forward Recognition Camera Standard Resistance
Tester Connection Condition Specified Condition I192-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher I192-5 (CANL) - I26-4 (CG) Result
Result OK NG
Result:
OK
REPLACE NO. 18 CAN JUNCTION CONNECTOR
Result:
NG
See step 29
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 18 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Disconnect the I173 central gateway ECU (network gateway ECU) connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 18 CAN Junction Connector)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition I192-4 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher I192-8 (CANL) - I26-4 (CG) Result
Result OK NG
Result:
OK
REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 18 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- CHECK FOR SHORT TO GND IN CAN BUS LINE (FORWARD RECOGNITION CAMERA - NO. 18 CAN JUNCTION CONNECTOR)
- Disconnect the T21 forward recognition camera connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to Forward Recognition Camera)*b to No. 18 CAN Junction Connector Standard Resistance
Tester Connection Condition Specified Condition T21-2 (CA2P) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher T21-1 (CA2L) - I26-4 (CG) Result
Result OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (FORWARD RECOGNITION CAMERA - NO. 18 CAN JUNCTION CONNECTOR)
Result:
OK
See step 30
- CHECK FOR SHORT TO GND IN CAN BUS LINE (FORWARD RECOGNITION CAMERA - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to Forward Recognition Camera)*b to Millimeter Wave Radar Sensor Assembly Standard Resistance
Tester Connection Condition Specified Condition T21-10 (CA1P) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher T21-9 (CA1N) - I26-4 (CG) Result
Result OK NG
Result:
OK
REPLACE FORWARD RECOGNITION CAMERA
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
See step 31
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO GND IN CAN BUS LINE (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - FORWARD RECOGNITION CAMERA)
- Disconnect the A128 millimeter wave radar sensor assembly connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to Millimeter Wave Radar Sensor Assembly)*b to Forward Recognition Camera Standard Resistance
Tester Connection Condition Specified Condition A128-10 (CA3H) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher A128-9 (CA3L) - I26-4 (CG) Result
Result OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - FORWARD RECOGNITION CAMERA)
Result:
OK
See step 32
- CHECK FOR SHORT TO GND IN CAN BUS LINE (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - NO. 19 CAN JUNCTION CONNECTOR)
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to Millimeter Wave Radar Sensor Assembly)*b to No. 19 CAN Junction Connector Standard Resistance
Tester Connection Condition Specified Condition A128-4 (CA2H) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher A128-3 (CA2L) - I26-4 (CG) Result
Result OK NG
Result:
OK
REPLACE MILLIMETER WAVE RADAR SENSOR ASSEMBLY
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
See step 33
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
- Disconnect the O179 No. 19 CAN junction connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to Millimeter Wave Radar Sensor Assembly Standard Resistance
Tester Connection Condition Specified Condition O179-4 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher O179-8 (CANL) - I26-4 (CG) Result
Result OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
Result:
OK
See step 34
- CHECK VEHICLE TYPE
- Check vehicle type.
Result
Result Proceed to w/ Blind Spot Monitor System A w/o Blind Spot Monitor System B
Result:
B
See step 36
Result:
A
See step 35
- Check vehicle type.
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to Blind Spot Monitor Sensor LH (B) Standard Resistance
Tester Connection Condition Specified Condition O179-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher O179-7 (CANL) - I26-4 (CG) Result
Result OK NG
Result:
NG
See step 37
Result:
OK
See step 36
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - CAN JUNCTION TERMINAL)
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to CAN Junction Terminal Standard Resistance
Tester Connection Condition Specified Condition O179-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher O179-5 (CANL) - I26-4 (CG) Result
Result OK NG
Result:
OK
REPLACE NO. 19 CAN JUNCTION CONNECTOR
Result:
NG
See step 38
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))
- Disconnect the O57 blind spot monitor sensor LH (B) connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to Blind Spot Monitor Sensor LH (B) Standard Resistance
Tester Connection Condition Specified Condition O179-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher O179-7 (CANL) - I26-4 (CG) Result
Result OK NG
Result:
OK
REPLACE BLIND SPOT MONITOR SENSOR LH (B)
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - CAN JUNCTION TERMINAL)
- Disconnect the O95 CAN junction terminal connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to CAN Junction Terminal Standard Resistance
Tester Connection Condition Specified Condition O179-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher O179-5 (CANL) - I26-4 (CG) Result
Result OK NG
Result:
OK
REPLACE CAN JUNCTION TERMINAL
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - CAN JUNCTION TERMINAL)
- CHECK VEHICLE TYPE
Result:
B
See step 60
Result:
A
See step 40
- CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 18 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Disconnect the I192 No. 18 CAN junction connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 18 CAN Junction Connector)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition I192-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher I192-7 (CANL) - I26-16 (BAT) Result
Result OK NG
Result:
NG
See step 42
Result:
OK
See step 41
- CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 18 CAN JUNCTION CONNECTOR - FORWARD RECOGNITION CAMERA)
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 18 CAN Junction Connector)*b to Forward Recognition Camera Standard Resistance
Tester Connection Condition Specified Condition I192-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher I192-6 (CANL) - I26-16 (BAT) Result
Result OK NG
Result:
OK
REPLACE NO. 18 CAN JUNCTION CONNECTOR
Result:
NG
See step 43
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 18 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Disconnect the I173 central gateway ECU (network gateway ECU) connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 18 CAN Junction Connector)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition I192-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher I192-7 (CANL) - I26-16 (BAT) Result
Result OK NG
Result:
OK
REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 18 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- CHECK FOR SHORT TO +B IN CAN BUS LINE (FORWARD RECOGNITION CAMERA - NO. 18 CAN JUNCTION CONNECTOR)
- Disconnect the T21 forward recognition camera connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to Forward Recognition Camera)*b to No. 18 CAN Junction Connector Standard Resistance
Tester Connection Condition Specified Condition T21-2 (CA2P) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher T21-1 (CA2L) - I26-16 (BAT) Result
Result OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (FORWARD RECOGNITION CAMERA - NO. 18 CAN JUNCTION CONNECTOR)
Result:
OK
See step 44
- CHECK FOR SHORT TO +B IN CAN BUS LINE (FORWARD RECOGNITION CAMERA - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to Forward Recognition Camera)*b to Millimeter Wave Radar Sensor Assembly Standard Resistance
Tester Connection Condition Specified Condition T21-10 (CA1P) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher T21-9 (CA1N) - I26-16 (BAT) Result
Result OK NG
Result:
OK
REPLACE FORWARD RECOGNITION CAMERA
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
See step 45
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO +B IN CAN BUS LINE (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - FORWARD RECOGNITION CAMERA)
- Disconnect the A128 millimeter wave radar sensor assembly connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to Millimeter Wave Radar Sensor Assembly)*b to Forward Recognition Camera Standard Resistance
Tester Connection Condition Specified Condition A128-10 (CA3H) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher A128-9 (CA3L) - I26-16 (BAT) Result
Result OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - FORWARD RECOGNITION CAMERA)
Result:
OK
See step 46
- CHECK FOR SHORT TO +B IN CAN BUS LINE (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - NO. 19 CAN JUNCTION CONNECTOR)
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to Millimeter Wave Radar Sensor Assembly)*b to No. 19 CAN Junction Connector Standard Resistance
Tester Connection Condition Specified Condition A128-4 (CA2H) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher A128-3 (CA2L) - I26-16 (BAT) Result
Result OK NG
Result:
OK
REPLACE MILLIMETER WAVE RADAR SENSOR ASSEMBLY
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
See step 47
- Measure the resistance according to the value(s) in the table below.
- CHECK VEHICLE TYPE
Result:
B
See step 54
Result:
A
See step 48
- CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
- Disconnect the O179 No. 19 CAN junction connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to Millimeter Wave Radar Sensor Assembly Standard Resistance
Tester Connection Condition Specified Condition O179-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher O179-5 (CANL) - I26-16 (BAT) Result
Result OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
Result:
OK
See step 49
- CHECK VEHICLE TYPE
- Check vehicle type.
Result
Result Proceed to w/ Blind Spot Monitor System A w/o Blind Spot Monitor System B
Result:
B
See step 51
Result:
A
See step 50
- Check vehicle type.
- CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to Blind Spot Monitor Sensor LH (B) Standard Resistance
Tester Connection Condition Specified Condition O179-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher O179-7 (CANL) - I26-16 (BAT) Result
Result OK NG
Result:
NG
See step 52
Result:
OK
See step 51
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - CAN JUNCTION TERMINAL)
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to CAN Junction Terminal Standard Resistance
Tester Connection Condition Specified Condition O179-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher O179-6 (CANL) - I26-16 (BAT) Result
Result OK NG
Result:
OK
REPLACE NO. 19 CAN JUNCTION CONNECTOR
Result:
NG
See step 53
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))
- Disconnect the O57 blind spot monitor sensor LH (B) connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to Blind Spot Monitor Sensor LH (B) Standard Resistance
Tester Connection Condition Specified Condition O179-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher O179-7 (CANL) - I26-16 (BAT) Result
Result OK NG
Result:
OK
REPLACE BLIND SPOT MONITOR SENSOR LH (B)
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))
- CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - CAN JUNCTION TERMINAL)
- Disconnect the O95 CAN junction terminal connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to CAN Junction Terminal Standard Resistance
Tester Connection Condition Specified Condition O179-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher O179-6 (CANL) - I26-16 (BAT) Result
Result OK NG
Result:
OK
REPLACE CAN JUNCTION TERMINAL
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - CAN JUNCTION TERMINAL)
- CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
- Disconnect the O203 No. 19 CAN junction connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to Millimeter Wave Radar Sensor Assembly Standard Resistance
Tester Connection Condition Specified Condition O203-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher O203-5 (CANL) - I26-16 (BAT) Result
Result OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
Result:
OK
See step 55
- CHECK VEHICLE TYPE
- Check vehicle type.
Result
Result Proceed to w/ Blind Spot Monitor System A w/o Blind Spot Monitor System B
Result:
B
See step 57
Result:
A
See step 56
- Check vehicle type.
- CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to Blind Spot Monitor Sensor LH (B) Standard Resistance
Tester Connection Condition Specified Condition O203-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher O203-7 (CANL) - I26-16 (BAT) Result
Result OK NG
Result:
NG
See step 58
Result:
OK
See step 57
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - CAN JUNCTION TERMINAL)
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to CAN Junction Terminal Standard Resistance
Tester Connection Condition Specified Condition O203-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher O203-6 (CANL) - I26-16 (BAT) Result
Result OK NG
Result:
OK
REPLACE NO. 19 CAN JUNCTION CONNECTOR
Result:
NG
See step 59
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))
- Disconnect the O57 blind spot monitor sensor LH (B) connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to Blind Spot Monitor Sensor LH (B) Standard Resistance
Tester Connection Condition Specified Condition O203-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher O203-7 (CANL) - I26-16 (BAT) Result
Result OK NG
Result:
OK
REPLACE BLIND SPOT MONITOR SENSOR LH (B)
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))
- CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - CAN JUNCTION TERMINAL)
- Disconnect the O95 CAN junction terminal connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to CAN Junction Terminal Standard Resistance
Tester Connection Condition Specified Condition O203-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher O203-6 (CANL) - I26-16 (BAT) Result
Result OK NG
Result:
OK
REPLACE CAN JUNCTION TERMINAL
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - CAN JUNCTION TERMINAL)
- CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 18 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Disconnect the I192 No. 18 CAN junction connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 18 CAN Junction Connector)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition I192-4 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher I192-8 (CANL) - I26-16 (BAT) Result
Result OK NG
Result:
NG
See step 62
Result:
OK
See step 61
- CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 18 CAN JUNCTION CONNECTOR - FORWARD RECOGNITION CAMERA)
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 18 CAN Junction Connector)*b to Forward Recognition Camera Standard Resistance
Tester Connection Condition Specified Condition I192-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher I192-5 (CANL) - I26-16 (BAT) Result
Result OK NG
Result:
OK
REPLACE NO. 18 CAN JUNCTION CONNECTOR
Result:
NG
See step 63
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 18 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Disconnect the I173 central gateway ECU (network gateway ECU) connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 18 CAN Junction Connector)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition I192-4 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher I192-8 (CANL) - I26-16 (BAT) Result
Result OK NG
Result:
OK
REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 18 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- CHECK FOR SHORT TO +B IN CAN BUS LINE (FORWARD RECOGNITION CAMERA - NO. 18 CAN JUNCTION CONNECTOR)
- Disconnect the T21 forward recognition camera connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to Forward Recognition Camera)*b to No. 18 CAN Junction Connector Standard Resistance
Tester Connection Condition Specified Condition T21-2 (CA2P) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher T21-1 (CA2L) - I26-16 (BAT) Result
Result OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (FORWARD RECOGNITION CAMERA - NO. 18 CAN JUNCTION CONNECTOR)
Result:
OK
See step 64
- CHECK FOR SHORT TO +B IN CAN BUS LINE (FORWARD RECOGNITION CAMERA - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to Forward Recognition Camera)*b to Millimeter Wave Radar Sensor Assembly Standard Resistance
Tester Connection Condition Specified Condition T21-10 (CA1P) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher T21-9 (CA1N) - I26-16 (BAT) Result
Result OK NG
Result:
OK
REPLACE FORWARD RECOGNITION CAMERA
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
See step 65
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO +B IN CAN BUS LINE (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - FORWARD RECOGNITION CAMERA)
- Disconnect the A128 millimeter wave radar sensor assembly connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to Millimeter Wave Radar Sensor Assembly)*b to Forward Recognition Camera Standard Resistance
Tester Connection Condition Specified Condition A128-10 (CA3H) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher A128-9 (CA3L) - I26-16 (BAT) Result
Result OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - FORWARD RECOGNITION CAMERA)
Result:
OK
See step 66
- CHECK FOR SHORT TO +B IN CAN BUS LINE (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - NO. 19 CAN JUNCTION CONNECTOR)
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to Millimeter Wave Radar Sensor Assembly)*b to No. 19 CAN Junction Connector Standard Resistance
Tester Connection Condition Specified Condition A128-4 (CA2H) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher A128-3 (CA2L) - I26-16 (BAT) Result
Result OK NG
Result:
OK
REPLACE MILLIMETER WAVE RADAR SENSOR ASSEMBLY
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
See step 67
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
- Disconnect the O179 No. 19 CAN junction connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to Millimeter Wave Radar Sensor Assembly Standard Resistance
Tester Connection Condition Specified Condition O179-4 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher O179-8 (CANL) - I26-16 (BAT) Result
Result OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
Result:
OK
See step 68
- CHECK VEHICLE TYPE
- Check vehicle type.
Result
Result Proceed to w/ Blind Spot Monitor System A w/o Blind Spot Monitor System B
Result:
B
See step 70
Result:
A
See step 69
- Check vehicle type.
- CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to Blind Spot Monitor Sensor LH (B) Standard Resistance
Tester Connection Condition Specified Condition O179-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher O179-7 (CANL) - I26-16 (BAT) Result
Result OK NG
Result:
NG
See step 71
Result:
OK
See step 70
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - CAN JUNCTION TERMINAL)
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to CAN Junction Terminal Standard Resistance
Tester Connection Condition Specified Condition O179-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher O179-5 (CANL) - I26-16 (BAT) Result
Result OK NG
Result:
OK
REPLACE NO. 19 CAN JUNCTION CONNECTOR
Result:
NG
See step 72
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))
- Disconnect the O57 blind spot monitor sensor LH (B) connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to Blind Spot Monitor Sensor LH (B) Standard Resistance
Tester Connection Condition Specified Condition O179-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher O179-7 (CANL) - I26-16 (BAT) Result
Result OK NG
Result:
OK
REPLACE BLIND SPOT MONITOR SENSOR LH (B)
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))
- CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - CAN JUNCTION TERMINAL)
- Disconnect the O95 CAN junction terminal connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to CAN Junction Terminal Standard Resistance
Tester Connection Condition Specified Condition O179-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher O179-5 (CANL) - I26-16 (BAT) Result
Result OK NG
Result:
OK
REPLACE CAN JUNCTION TERMINAL
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - CAN JUNCTION TERMINAL)
- CHECK VEHICLE TYPE
Result:
B
See step 94
Result:
A
See step 74
- CHECK FOR SHORT IN CAN BUS LINES (NO. 18 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Disconnect the I192 No. 18 CAN junction connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 18 CAN Junction Connector)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition I192-3 (CANH) - I192-7 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
NG
See step 76
Result:
OK
See step 75
- CHECK FOR SHORT IN CAN BUS LINES (NO. 18 CAN JUNCTION CONNECTOR - FORWARD RECOGNITION CAMERA)
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 18 CAN Junction Connector)*b to Forward Recognition Camera Standard Resistance
Tester Connection Condition Specified Condition I192-2 (CANH) - I192-6 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
OK
REPLACE NO. 18 CAN JUNCTION CONNECTOR
Result:
NG
See step 77
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT IN CAN BUS LINES (NO. 18 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Disconnect the I173 central gateway ECU (network gateway ECU) connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 18 CAN Junction Connector)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition I192-3 (CANH) - I192-7 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher Result
Result OK NG
Result:
OK
REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 18 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- CHECK FOR SHORT IN CAN BUS LINES (FORWARD RECOGNITION CAMERA - NO. 18 CAN JUNCTION CONNECTOR)
- Reconnect the I192 No. 18 CAN junction connector.
- Disconnect the T21 forward recognition camera connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Forward Recognition Camera)*b to No. 18 CAN Junction Connector Standard Resistance
Tester Connection Condition Specified Condition T21-2 (CA2P) - T21-1 (CA2L) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (FORWARD RECOGNITION CAMERA - NO. 18 CAN JUNCTION CONNECTOR)
Result:
OK
See step 78
- CHECK FOR SHORT IN CAN BUS LINES (FORWARD RECOGNITION CAMERA - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Forward Recognition Camera)*b to Millimeter Wave Radar Sensor Assembly Standard Resistance
Tester Connection Condition Specified Condition T21-10 (CA1P) - T21-9 (CA1N) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
OK
REPLACE FORWARD RECOGNITION CAMERA
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
See step 79
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT IN CAN BUS LINES (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - FORWARD RECOGNITION CAMERA)
- Reconnect the T21 forward recognition camera connector.
- Disconnect the A128 millimeter wave radar sensor assembly connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Millimeter Wave Radar Sensor Assembly)*b to Forward Recognition Camera Standard Resistance
Tester Connection Condition Specified Condition A128-10 (CA3H) - A128-9 (CA3L) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - FORWARD RECOGNITION CAMERA)
Result:
OK
See step 80
- CHECK FOR SHORT IN CAN BUS LINES (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - NO. 19 CAN JUNCTION CONNECTOR)
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Millimeter Wave Radar Sensor Assembly)*b to No. 19 CAN Junction Connector Standard Resistance
Tester Connection Condition Specified Condition A128-4 (CA2H) - A128-3 (CA2L) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
OK
REPLACE MILLIMETER WAVE RADAR SENSOR ASSEMBLY
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
See step 81
- Measure the resistance according to the value(s) in the table below.
- CHECK VEHICLE TYPE
Result:
B
See step 88
Result:
A
See step 82
- CHECK FOR SHORT IN CAN BUS LINES (NO. 19 CAN JUNCTION CONNECTOR - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
- Reconnect the A128 millimeter wave radar sensor assembly connector.
- Disconnect the O179 No. 19 CAN junction connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to Millimeter Wave Radar Sensor Assembly Standard Resistance
Tester Connection Condition Specified Condition O179-1 (CANH) - O179-5 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
Result:
OK
See step 83
- CHECK VEHICLE TYPE
- Check vehicle type.
Result
Result Proceed to w/ Blind Spot Monitor System A w/o Blind Spot Monitor System B
Result:
B
See step 85
Result:
A
See step 84
- Check vehicle type.
- CHECK FOR SHORT IN CAN BUS LINES (NO. 19 CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to Blind Spot Monitor Sensor LH (B) Standard Resistance
Tester Connection Condition Specified Condition O179-3 (CANH) - O179-7 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher Result
Result OK NG
Result:
NG
See step 86
Result:
OK
See step 85
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT IN CAN BUS LINES (NO. 19 CAN JUNCTION CONNECTOR - CAN JUNCTION TERMINAL)
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to CAN Junction Terminal Standard Resistance
Tester Connection Condition Specified Condition O179-2 (CANH) - O179-6 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
OK
REPLACE NO. 19 CAN JUNCTION CONNECTOR
Result:
NG
See step 87
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT IN CAN BUS LINES (NO. 19 CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))
- Disconnect the O57 blind spot monitor sensor LH (B) connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to Blind Spot Monitor Sensor LH (B) Standard Resistance
Tester Connection Condition Specified Condition O179-3 (CANH) - O179-7 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher Result
Result OK NG
Result:
OK
REPLACE BLIND SPOT MONITOR SENSOR LH (B)
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))
- CHECK FOR SHORT IN CAN BUS LINES (NO. 19 CAN JUNCTION CONNECTOR - CAN JUNCTION TERMINAL)
- Disconnect the O95 CAN junction terminal connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to CAN Junction Terminal Standard Resistance
Tester Connection Condition Specified Condition O179-2 (CANH) - O179-6 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher Result
Result OK NG
Result:
OK
REPLACE CAN JUNCTION TERMINAL
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - CAN JUNCTION TERMINAL)
- CHECK FOR SHORT IN CAN BUS LINES (NO. 19 CAN JUNCTION CONNECTOR - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
- Reconnect the A128 millimeter wave radar sensor assembly connector.
- Disconnect the O203 No. 19 CAN junction connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to Millimeter Wave Radar Sensor Assembly Standard Resistance
Tester Connection Condition Specified Condition O203-1 (CANH) - O203-5 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
Result:
OK
See step 89
- CHECK VEHICLE TYPE
- Check vehicle type.
Result
Result Proceed to w/ Blind Spot Monitor System A w/o Blind Spot Monitor System B
Result:
B
See step 91
Result:
A
See step 90
- Check vehicle type.
- CHECK FOR SHORT IN CAN BUS LINES (NO. 19 CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to Blind Spot Monitor Sensor LH (B) Standard Resistance
Tester Connection Condition Specified Condition O203-3 (CANH) - O203-7 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher Result
Result OK NG
Result:
NG
See step 92
Result:
OK
See step 91
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT IN CAN BUS LINES (NO. 19 CAN JUNCTION CONNECTOR - CAN JUNCTION TERMINAL)
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to CAN Junction Terminal Standard Resistance
Tester Connection Condition Specified Condition O203-2 (CANH) - O203-6 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
OK
REPLACE NO. 19 CAN JUNCTION CONNECTOR
Result:
NG
See step 93
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT IN CAN BUS LINES (NO. 19 CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))
- Disconnect the O57 blind spot monitor sensor LH (B) connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to Blind Spot Monitor Sensor LH (B) Standard Resistance
Tester Connection Condition Specified Condition O203-3 (CANH) - O203-7 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher Result
Result OK NG
Result:
OK
REPLACE BLIND SPOT MONITOR SENSOR LH (B)
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))
- CHECK FOR SHORT IN CAN BUS LINES (NO. 19 CAN JUNCTION CONNECTOR - CAN JUNCTION TERMINAL)
- Disconnect the O95 CAN junction terminal connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to CAN Junction Terminal Standard Resistance
Tester Connection Condition Specified Condition O203-2 (CANH) - O203-6 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher Result
Result OK NG
Result:
OK
REPLACE CAN JUNCTION TERMINAL
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - CAN JUNCTION TERMINAL)
- CHECK FOR SHORT IN CAN BUS LINES (NO. 18 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Disconnect the I192 No. 18 CAN junction connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 18 CAN Junction Connector)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition I192-4 (CANH) - I192-8 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
NG
See step 96
Result:
OK
See step 95
- CHECK FOR SHORT IN CAN BUS LINES (NO. 18 CAN JUNCTION CONNECTOR - FORWARD RECOGNITION CAMERA)
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 18 CAN Junction Connector)*b to Forward Recognition Camera Standard Resistance
Tester Connection Condition Specified Condition I192-1 (CANH) - I192-5 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
OK
REPLACE NO. 18 CAN JUNCTION CONNECTOR
Result:
NG
See step 97
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT IN CAN BUS LINES (NO. 18 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Disconnect the I173 central gateway ECU (network gateway ECU) connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 18 CAN Junction Connector)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition I192-4 (CANH) - I192-8 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher Result
Result OK NG
Result:
OK
REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 18 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- CHECK FOR SHORT IN CAN BUS LINES (FORWARD RECOGNITION CAMERA - NO. 18 CAN JUNCTION CONNECTOR)
- Reconnect the I192 No. 18 CAN junction connector.
- Disconnect the T21 forward recognition camera connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Forward Recognition Camera)*b to No. 18 CAN Junction Connector Standard Resistance
Tester Connection Condition Specified Condition T21-2 (CA2P) - T21-1 (CA2L) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (FORWARD RECOGNITION CAMERA - NO. 18 CAN JUNCTION CONNECTOR)
Result:
OK
See step 98
- CHECK FOR SHORT IN CAN BUS LINES (FORWARD RECOGNITION CAMERA - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Forward Recognition Camera)*b to Millimeter Wave Radar Sensor Assembly Standard Resistance
Tester Connection Condition Specified Condition T21-10 (CA1P) - T21-9 (CA1N) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
OK
REPLACE FORWARD RECOGNITION CAMERA
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
See step 99
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT IN CAN BUS LINES (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - FORWARD RECOGNITION CAMERA)
- Reconnect the T21 forward recognition camera connector.
- Disconnect the A128 millimeter wave radar sensor assembly connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Millimeter Wave Radar Sensor Assembly)*b to Forward Recognition Camera Standard Resistance
Tester Connection Condition Specified Condition A128-10 (CA3H) - A128-9 (CA3L) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - FORWARD RECOGNITION CAMERA)
Result:
OK
See step 100
- CHECK FOR SHORT IN CAN BUS LINES (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - NO. 19 CAN JUNCTION CONNECTOR)
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Millimeter Wave Radar Sensor Assembly)*b to No. 19 CAN Junction Connector Standard Resistance
Tester Connection Condition Specified Condition A128-4 (CA2H) - A128-3 (CA2L) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
OK
REPLACE MILLIMETER WAVE RADAR SENSOR ASSEMBLY
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
See step 101
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT IN CAN BUS LINES (NO. 19 CAN JUNCTION CONNECTOR - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
- Reconnect the A128 millimeter wave radar sensor assembly connector.
- Disconnect the O179 No. 19 CAN junction connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to Millimeter Wave Radar Sensor Assembly Standard Resistance
Tester Connection Condition Specified Condition O179-4 (CANH) - O179-8 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
Result:
OK
See step 102
- CHECK VEHICLE TYPE
- Check vehicle type.
Result
Result Proceed to w/ Blind Spot Monitor System A w/o Blind Spot Monitor System B
Result:
B
See step 104
Result:
A
See step 103
- Check vehicle type.
- CHECK FOR SHORT IN CAN BUS LINES (NO. 19 CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to Blind Spot Monitor Sensor LH (B) Standard Resistance
Tester Connection Condition Specified Condition O179-3 (CANH) - O179-7 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher Result
Result OK NG
Result:
NG
See step 105
Result:
OK
See step 104
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT IN CAN BUS LINES (NO. 19 CAN JUNCTION CONNECTOR - CAN JUNCTION TERMINAL)
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to CAN Junction Terminal Standard Resistance
Tester Connection Condition Specified Condition O179-1 (CANH) - O179-5 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
OK
REPLACE NO. 19 CAN JUNCTION CONNECTOR
Result:
NG
See step 106
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT IN CAN BUS LINES (NO. 19 CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))
- Disconnect the O57 blind spot monitor sensor LH (B) connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to Blind Spot Monitor Sensor LH (B) Standard Resistance
Tester Connection Condition Specified Condition O179-3 (CANH) - O179-7 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher Result
Result OK NG
Result:
OK
REPLACE BLIND SPOT MONITOR SENSOR LH (B)
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))
- CHECK FOR SHORT IN CAN BUS LINES (NO. 19 CAN JUNCTION CONNECTOR - CAN JUNCTION TERMINAL)
- Disconnect the O95 CAN junction terminal connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to CAN Junction Terminal Standard Resistance
Tester Connection Condition Specified Condition O179-1 (CANH) - O179-5 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher Result
Result OK NG
Result:
OK
REPLACE CAN JUNCTION TERMINAL
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - CAN JUNCTION TERMINAL)
- CHECK FOR OPEN IN CAN MAIN BUS LINES (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Disconnect the I173 central gateway ECU (network gateway ECU) connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Central Gateway ECU (Network Gateway ECU))Standard Resistance
Tester Connection Condition Specified Condition I173-28 (CA1H) - I173-27 (CA1L) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
OK
REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
See step 108
- CHECK VEHICLE TYPE
Result:
B
See step 122
Result:
A
See step 109
- CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 18 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Reconnect the I173 central gateway ECU (network gateway ECU) connector.
- Disconnect the I192 No. 18 CAN junction connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 18 CAN Junction Connector)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition I192-3 (CANH) - I192-7 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 18 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
Result:
OK
See step 110
- CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 18 CAN JUNCTION CONNECTOR - FORWARD RECOGNITION CAMERA)
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 18 CAN Junction Connector)*b to Forward Recognition Camera Standard Resistance
Tester Connection Condition Specified Condition I192-2 (CANH) - I192-6 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
OK
REPLACE NO. 18 CAN JUNCTION CONNECTOR
Result:
NG
See step 111
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR OPEN IN CAN MAIN BUS LINES (FORWARD RECOGNITION CAMERA - NO. 18 CAN JUNCTION CONNECTOR)
- Reconnect the I192 No. 18 CAN junction connector.
- Disconnect the T21 forward recognition camera connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Forward Recognition Camera)*b to No. 18 CAN Junction Connector Standard Resistance
Tester Connection Condition Specified Condition T21-2 (CA2P) - T21-1 (CA2L) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (FORWARD RECOGNITION CAMERA - NO. 18 CAN JUNCTION CONNECTOR)
Result:
OK
See step 112
- CHECK FOR OPEN IN CAN MAIN BUS LINES (FORWARD RECOGNITION CAMERA - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Forward Recognition Camera)*b to Millimeter Wave Radar Sensor Assembly Standard Resistance
Tester Connection Condition Specified Condition T21-10 (CA1P) - T21-9 (CA1N) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
OK
REPLACE FORWARD RECOGNITION CAMERA
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
See step 113
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR OPEN IN CAN MAIN BUS LINES (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - FORWARD RECOGNITION CAMERA)
- Reconnect the T21 forward recognition camera connector.
- Disconnect the A128 millimeter wave radar sensor assembly connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Millimeter Wave Radar Sensor Assembly)*b to Forward Recognition Camera Standard Resistance
Tester Connection Condition Specified Condition A128-10 (CA3H) - A128-9 (CA3L) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - FORWARD RECOGNITION CAMERA)
Result:
OK
See step 114
- CHECK FOR OPEN IN CAN MAIN BUS LINES (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - NO. 19 CAN JUNCTION CONNECTOR)
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Millimeter Wave Radar Sensor Assembly)*b to No. 19 CAN Junction Connector Standard Resistance
Tester Connection Condition Specified Condition A128-4 (CA2H) - A128-3 (CA2L) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
OK
REPLACE MILLIMETER WAVE RADAR SENSOR ASSEMBLY
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
See step 115
- Measure the resistance according to the value(s) in the table below.
- CHECK VEHICLE TYPE
Result:
B
See step 119
Result:
A
See step 116
- CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 19 CAN JUNCTION CONNECTOR - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
- Reconnect the A128 millimeter wave radar sensor assembly connector.
- Disconnect the O179 No. 19 CAN junction connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to Millimeter Wave Radar Sensor Assembly Standard Resistance
Tester Connection Condition Specified Condition O179-1 (CANH) - O179-5 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
Result:
OK
See step 117
- CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 19 CAN JUNCTION CONNECTOR - CAN JUNCTION TERMINAL)
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to CAN Junction Terminal Standard Resistance
Tester Connection Condition Specified Condition O179-2 (CANH) - O179-6 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
OK
REPLACE NO. 19 CAN JUNCTION CONNECTOR
Result:
NG
See step 118
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR OPEN IN CAN MAIN BUS LINES (CAN JUNCTION TERMINAL)
- Reconnect the O179 No. 19 CAN junction connector.
- Disconnect the O95 CAN junction terminal connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to CAN Junction Terminal)*b to No. 19 CAN Junction Connector Standard Resistance
Tester Connection Condition Specified Condition O95-3 (CANH) - O95-2 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
OK
REPLACE CAN JUNCTION TERMINAL
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (CAN JUNCTION TERMINAL - NO. 19 CAN JUNCTION CONNECTOR)
- CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 19 CAN JUNCTION CONNECTOR - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
- Reconnect the A128 millimeter wave radar sensor assembly connector.
- Disconnect the O203 No. 19 CAN junction connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to Millimeter Wave Radar Sensor Assembly Standard Resistance
Tester Connection Condition Specified Condition O203-1 (CANH) - O203-5 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
Result:
OK
See step 120
- CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 19 CAN JUNCTION CONNECTOR - CAN JUNCTION TERMINAL)
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to CAN Junction Terminal Standard Resistance
Tester Connection Condition Specified Condition O203-2 (CANH) - O203-6 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
OK
REPLACE NO. 19 CAN JUNCTION CONNECTOR
Result:
NG
See step 121
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR OPEN IN CAN MAIN BUS LINES (CAN JUNCTION TERMINAL)
- Reconnect the O203 No. 19 CAN junction connector.
- Disconnect the O95 CAN junction terminal connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to CAN Junction Terminal)*b to No. 19 CAN Junction Connector Standard Resistance
Tester Connection Condition Specified Condition O95-3 (CANH) - O95-2 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
OK
REPLACE CAN JUNCTION TERMINAL
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (CAN JUNCTION TERMINAL - NO. 19 CAN JUNCTION CONNECTOR)
- CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 18 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Reconnect the I173 central gateway ECU (network gateway ECU) connector.
- Disconnect the I192 No. 18 CAN junction connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 18 CAN Junction Connector)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition I192-4 (CANH) - I192-8 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 18 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
Result:
OK
See step 123
- CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 18 CAN JUNCTION CONNECTOR - FORWARD RECOGNITION CAMERA)
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 18 CAN Junction Connector)*b to Forward Recognition Camera Standard Resistance
Tester Connection Condition Specified Condition I192-1 (CANH) - I192-5 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
OK
REPLACE NO. 18 CAN JUNCTION CONNECTOR
Result:
NG
See step 124
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR OPEN IN CAN MAIN BUS LINES (FORWARD RECOGNITION CAMERA - NO. 18 CAN JUNCTION CONNECTOR)
- Reconnect the I192 No. 18 CAN junction connector.
- Disconnect the T21 forward recognition camera connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Forward Recognition Camera)*b to No. 18 CAN Junction Connector Standard Resistance
Tester Connection Condition Specified Condition T21-2 (CA2P) - T21-1 (CA2L) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (FORWARD RECOGNITION CAMERA - NO. 18 CAN JUNCTION CONNECTOR)
Result:
OK
See step 125
- CHECK FOR OPEN IN CAN MAIN BUS LINES (FORWARD RECOGNITION CAMERA - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Forward Recognition Camera)*b to Millimeter Wave Radar Sensor Assembly Standard Resistance
Tester Connection Condition Specified Condition T21-10 (CA1P) - T21-9 (CA1N) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
OK
REPLACE FORWARD RECOGNITION CAMERA
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
See step 126
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR OPEN IN CAN MAIN BUS LINES (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - FORWARD RECOGNITION CAMERA)
- Reconnect the T21 forward recognition camera connector.
- Disconnect the A128 millimeter wave radar sensor assembly connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Millimeter Wave Radar Sensor Assembly)*b to Forward Recognition Camera Standard Resistance
Tester Connection Condition Specified Condition A128-10 (CA3H) - A128-9 (CA3L) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - FORWARD RECOGNITION CAMERA)
Result:
OK
See step 127
- CHECK FOR OPEN IN CAN MAIN BUS LINES (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - NO. 19 CAN JUNCTION CONNECTOR)
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Millimeter Wave Radar Sensor Assembly)*b to No. 19 CAN Junction Connector Standard Resistance
Tester Connection Condition Specified Condition A128-4 (CA2H) - A128-3 (CA2L) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
OK
REPLACE MILLIMETER WAVE RADAR SENSOR ASSEMBLY
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
See step 128
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 19 CAN JUNCTION CONNECTOR - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
- Reconnect the A128 millimeter wave radar sensor assembly connector.
- Disconnect the O179 No. 19 CAN junction connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to Millimeter Wave Radar Sensor Assembly Standard Resistance
Tester Connection Condition Specified Condition O179-4 (CANH) - O179-8 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
Result:
OK
See step 129
- CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 19 CAN JUNCTION CONNECTOR - CAN JUNCTION TERMINAL)
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector)*b to CAN Junction Terminal Standard Resistance
Tester Connection Condition Specified Condition O179-1 (CANH) - O179-5 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
OK
REPLACE NO. 19 CAN JUNCTION CONNECTOR
Result:
NG
See step 130
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR OPEN IN CAN MAIN BUS LINES (CAN JUNCTION TERMINAL)
- Reconnect the O179 No. 19 CAN junction connector.
- Disconnect the O95 CAN junction terminal connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to CAN Junction Terminal)*b to No. 19 CAN Junction Connector Standard Resistance
Tester Connection Condition Specified Condition O95-3 (CANH) - O95-2 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Result
Result OK NG
Result:
OK
REPLACE CAN JUNCTION TERMINAL
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (CAN JUNCTION TERMINAL - NO. 19 CAN JUNCTION CONNECTOR)
