Check Bus 6 Line [09/2022 - 11/2022]: Procedure

WARNING: This page is about a different car, the 2023 Toyota GR Corolla and 2023 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FOR OPEN IN CAN MAIN BUS LINES
    1. Disconnect the cable from the negative (-) battery terminal.
    2. Measure the resistance according to the value(s) in the table below.

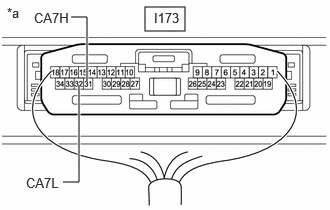

      GTY1117570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      I173-31 (CA7H) - I173-32 (CA7L) Cable disconnected from negative (-) battery terminal Below 70 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  50

    Result:

    OK

    See step  2

  2. CHECK FOR SHORT IN CAN BUS LINES
    1. Measure the resistance according to the value(s) in the table below.
      GTY1117570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      I173-31 (CA7H) - I173-32 (CA7L) Cable disconnected from negative (-) battery terminal 54 Ω or higher

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  35

    Result:

    OK

    See step  3

  3. CHECK FOR SHORT TO +B IN CAN BUS LINE
    1. Measure the resistance according to the value(s) in the table below.

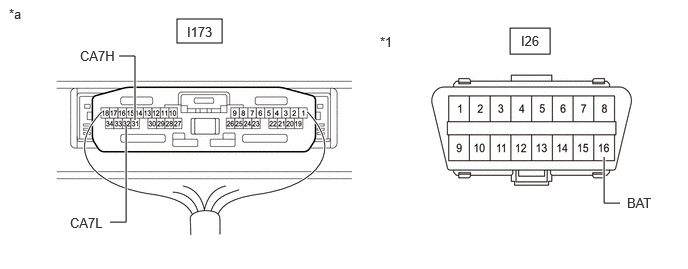

      GTY1115390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      I173-31 (CA7H) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      I173-32 (CA7L) - I26-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  20

    Result:

    OK

    See step  4

  4. CHECK FOR SHORT TO GND IN CAN BUS LINE
    1. Measure the resistance according to the value(s) in the table below.

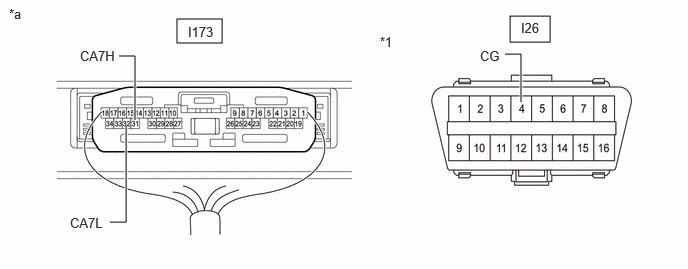

      GTY1115389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      I173-31 (CA7H) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      I173-32 (CA7L) - I26-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [09/2022 - 11/2022]

    Result:

    NG

    See step  5

  5. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      except G16E-GTS A
      for G16E-GTS B

    Result:

    B

    See step  12

    Result:

    A

    See step  6

  6. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the I215 No. 16 CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1112990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      I215-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      I215-7 (CANL) - I26-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  9

    Result:

    OK

    See step  7

  7. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Measure the resistance according to the value(s) in the table below.
      GTY1112991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      I215-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      I215-8 (CANL) - I26-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  10

    Result:

    OK

    See step  8

  8. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1112992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to Tire Pressure Warning ECU and Receiver

      Standard Resistance

      Tester Connection Condition Specified Condition
      I215-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      I215-9 (CANL) - I26-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 16 CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  11

  9. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the I173 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1112990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      I215-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      I215-7 (CANL) - I26-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [09/2022 - 11/2022]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  10. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the I173 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1112991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      I215-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      I215-8 (CANL) - I26-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [09/2022 - 11/2022]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  11. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)
    1. Disconnect the O170 or O171 tire pressure warning ECU and receiver connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1112992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to Tire Pressure Warning ECU and Receiver

      Standard Resistance

      Tester Connection Condition Specified Condition
      I215-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      I215-9 (CANL) - I26-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE TIRE PRESSURE WARNING ECU AND RECEIVER

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 16 CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)

  12. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the I189 No. 16 CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1115503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      I189-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      I189-6 (CANL) - I26-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  16

    Result:

    OK

    See step  13

  13. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Measure the resistance according to the value(s) in the table below.
      GTY1115502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      I189-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      I189-7 (CANL) - I26-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  17

    Result:

    OK

    See step  14

  14. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1115501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to Tire Pressure Warning ECU and Receiver

      Standard Resistance

      Tester Connection Condition Specified Condition
      I189-4 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      I189-8 (CANL) - I26-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  18

    Result:

    OK

    See step  15

  15. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - 4WD ECU ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1115500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to 4WD ECU Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      I189-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      I189-5 (CANL) - I26-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 16 CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  19

  16. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the I173 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1115503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      I189-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      I189-6 (CANL) - I26-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [09/2022 - 11/2022]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  17. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the I173 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1115502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      I189-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      I189-7 (CANL) - I26-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [09/2022 - 11/2022]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  18. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)
    1. Disconnect the O170 tire pressure warning ECU and receiver connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1115501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to Tire Pressure Warning ECU and Receiver

      Standard Resistance

      Tester Connection Condition Specified Condition
      I189-4 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      I189-8 (CANL) - I26-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE TIRE PRESSURE WARNING ECU AND RECEIVER

    Refer to REMOVAL [09/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 16 CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)

  19. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - 4WD ECU ASSEMBLY)
    1. Disconnect the O177 4WD ECU assembly connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1115500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to 4WD ECU Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      I189-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      I189-5 (CANL) - I26-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE 4WD ECU ASSEMBLY

    Refer to REMOVAL [09/2022 - 11/2022]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 16 CAN JUNCTION CONNECTOR - 4WD ECU ASSEMBLY)

  20. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      except G16E-GTS A
      for G16E-GTS B

    Result:

    B

    See step  27

    Result:

    A

    See step  21

  21. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the I215 No. 16 CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1112993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      I215-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      I215-7 (CANL) - I26-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  24

    Result:

    OK

    See step  22

  22. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Measure the resistance according to the value(s) in the table below.
      GTY1112994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      I215-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      I215-8 (CANL) - I26-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  25

    Result:

    OK

    See step  23

  23. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1118437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to Tire Pressure Warning ECU and Receiver

      Standard Resistance

      Tester Connection Condition Specified Condition
      I215-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      I215-9 (CANL) - I26-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 16 CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  26

  24. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

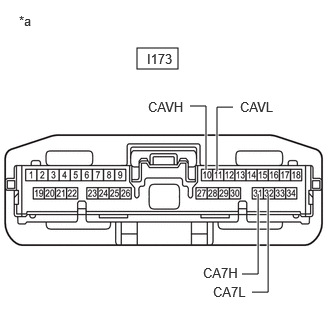

    1. Disconnect the I173 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1112993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      I215-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      I215-7 (CANL) - I26-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [09/2022 - 11/2022]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  25. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the I173 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1112994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      I215-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      I215-8 (CANL) - I26-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [09/2022 - 11/2022]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  26. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)
    1. Disconnect the O170 or O171 tire pressure warning ECU and receiver connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1118437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to Tire Pressure Warning ECU and Receiver

      Standard Resistance

      Tester Connection Condition Specified Condition
      I215-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      I215-9 (CANL) - I26-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE TIRE PRESSURE WARNING ECU AND RECEIVER

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 16 CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)

  27. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the I189 No. 16 CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1119252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      I189-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      I189-6 (CANL) - I26-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  31

    Result:

    OK

    See step  28

  28. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Measure the resistance according to the value(s) in the table below.
      GTY1116907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      I189-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      I189-7 (CANL) - I26-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  32

    Result:

    OK

    See step  29

  29. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1116909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to Tire Pressure Warning ECU and Receiver

      Standard Resistance

      Tester Connection Condition Specified Condition
      I189-4 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      I189-8 (CANL) - I26-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  33

    Result:

    OK

    See step  30

  30. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - 4WD ECU ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1116908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to 4WD ECU Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      I189-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      I189-5 (CANL) - I26-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 16 CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  34

  31. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the I173 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1119252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      I189-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      I189-6 (CANL) - I26-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [09/2022 - 11/2022]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  32. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the I173 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1116907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      I189-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      I189-7 (CANL) - I26-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [09/2022 - 11/2022]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  33. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)
    1. Disconnect the O170 tire pressure warning ECU and receiver connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1116909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to Tire Pressure Warning ECU and Receiver

      Standard Resistance

      Tester Connection Condition Specified Condition
      I189-4 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      I189-8 (CANL) - I26-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE TIRE PRESSURE WARNING ECU AND RECEIVER

    Refer to REMOVAL [09/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 16 CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)

  34. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - 4WD ECU ASSEMBLY)
    1. Disconnect the O177 4WD ECU assembly connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1116908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to 4WD ECU Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      I189-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      I189-5 (CANL) - I26-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE 4WD ECU ASSEMBLY

    Refer to REMOVAL [09/2022 - 11/2022]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 16 CAN JUNCTION CONNECTOR - 4WD ECU ASSEMBLY)

  35. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      except G16E-GTS A
      for G16E-GTS B

    Result:

    B

    See step  42

    Result:

    A

    See step  36

  36. CHECK FOR SHORT IN CAN BUS LINES (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the I215 No. 16 CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1111185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      I215-1 (CANH) - I215-7 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  39

    Result:

    OK

    See step  37

  37. CHECK FOR SHORT IN CAN BUS LINES (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Measure the resistance according to the value(s) in the table below.
      GTY1111186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      I215-2 (CANH) - I215-8 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  40

    Result:

    OK

    See step  38

  38. CHECK FOR SHORT IN CAN BUS LINES (NO. 16 CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1118059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to Tire Pressure Warning ECU and Receiver

      Standard Resistance

      Tester Connection Condition Specified Condition
      I215-3 (CANH) - I215-9 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 16 CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  41

  39. CHECK FOR SHORT IN CAN BUS LINES (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the I173 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1111185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      I215-1 (CANH) - I215-7 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [09/2022 - 11/2022]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  40. CHECK FOR SHORT IN CAN BUS LINES (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the I173 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1111186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      I215-2 (CANH) - I215-8 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [09/2022 - 11/2022]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  41. CHECK FOR SHORT IN CAN BUS LINES (NO. 16 CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)
    1. Disconnect the O170 or O171 tire pressure warning ECU and receiver connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1118059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to Tire Pressure Warning ECU and Receiver

      Standard Resistance

      Tester Connection Condition Specified Condition
      I215-3 (CANH) - I215-9 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE TIRE PRESSURE WARNING ECU AND RECEIVER

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 16 CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)

  42. CHECK FOR SHORT IN CAN BUS LINES (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the I189 No. 16 CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1116990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      I189-2 (CANH) - I189-6 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  46

    Result:

    OK

    See step  43

  43. CHECK FOR SHORT IN CAN BUS LINES (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Measure the resistance according to the value(s) in the table below.
      GTY1119268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      I189-3 (CANH) - I189-7 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  47

    Result:

    OK

    See step  44

  44. CHECK FOR SHORT IN CAN BUS LINES (NO. 16 CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1116992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to Tire Pressure Warning ECU and Receiver

      Standard Resistance

      Tester Connection Condition Specified Condition
      I189-4 (CANH) - I189-8 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  48

    Result:

    OK

    See step  45

  45. CHECK FOR SHORT IN CAN BUS LINES (NO. 16 CAN JUNCTION CONNECTOR - 4WD ECU ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1116991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to 4WD ECU Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      I189-1 (CANH) - I189-5 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 16 CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  49

  46. CHECK FOR SHORT IN CAN BUS LINES (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the I173 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1116990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      I189-2 (CANH) - I189-6 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [09/2022 - 11/2022]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  47. CHECK FOR SHORT IN CAN BUS LINES (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the I173 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1119268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      I189-3 (CANH) - I189-7 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [09/2022 - 11/2022]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  48. CHECK FOR SHORT IN CAN BUS LINES (NO. 16 CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)
    1. Disconnect the O170 tire pressure warning ECU and receiver connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1116992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to Tire Pressure Warning ECU and Receiver

      Standard Resistance

      Tester Connection Condition Specified Condition
      I189-4 (CANH) - I189-8 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE TIRE PRESSURE WARNING ECU AND RECEIVER

    Refer to REMOVAL [09/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 16 CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)

  49. CHECK FOR SHORT IN CAN BUS LINES (NO. 16 CAN JUNCTION CONNECTOR - 4WD ECU ASSEMBLY)
    1. Disconnect the O177 4WD ECU assembly connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1116991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to 4WD ECU Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      I189-1 (CANH) - I189-5 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE 4WD ECU ASSEMBLY

    Refer to REMOVAL [09/2022 - 11/2022]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 16 CAN JUNCTION CONNECTOR - 4WD ECU ASSEMBLY)

  50. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      except G16E-GTS A
      for G16E-GTS B

    Result:

    B

    See step  54

    Result:

    A

    See step  51

  51. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the I215 No. 16 CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1111185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      I215-1 (CANH) - I215-7 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  53

    Result:

    OK

    See step  52

  52. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Measure the resistance according to the value(s) in the table below.
      GTY1111186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      I215-2 (CANH) - I215-8 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 16 CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  53

  53. CHECK FOR OPEN IN CAN MAIN BUS LINES (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Reconnect the I215 No. 16 CAN junction connector.
    2. Disconnect the I173 central gateway ECU (network gateway ECU) connector.
    3. Measure the resistance according to the value(s) in the table below.
      GTY1115369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      I173-31 (CA7H) - I173-10 (CAVH) Cable disconnected from negative (-) battery terminal Below 1 Ω
      I173-32 (CA7L) - I173-11 (CAVL) Cable disconnected from negative (-) battery terminal Below 1 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [09/2022 - 11/2022]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) - NO. 16 CAN JUNCTION CONNECTOR)

  54. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the I189 No. 16 CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1116993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      I189-2 (CANH) - I189-6 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  56

    Result:

    OK

    See step  55

  55. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Measure the resistance according to the value(s) in the table below.
      GTY1119268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 16 CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      I189-3 (CANH) - I189-7 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 16 CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  56

  56. CHECK FOR OPEN IN CAN MAIN BUS LINES (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Reconnect the I189 No. 16 CAN junction connector.
    2. Disconnect the I173 central gateway ECU (network gateway ECU) connector.
    3. Measure the resistance according to the value(s) in the table below.
      GTY1115369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      I173-31 (CA7H) - I173-10 (CAVH) Cable disconnected from negative (-) battery terminal Below 1 Ω
      I173-32 (CA7L) - I173-11 (CAVL) Cable disconnected from negative (-) battery terminal Below 1 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [09/2022 - 11/2022]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) - NO. 16 CAN JUNCTION CONNECTOR)

scientia non olet · About LEMON Manuals
