Check Bus 5 Line [09/2022 - 11/2022]: Wiring Diagram

WARNING: This page is about a different car, the 2023 Toyota GR Corolla and 2023 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

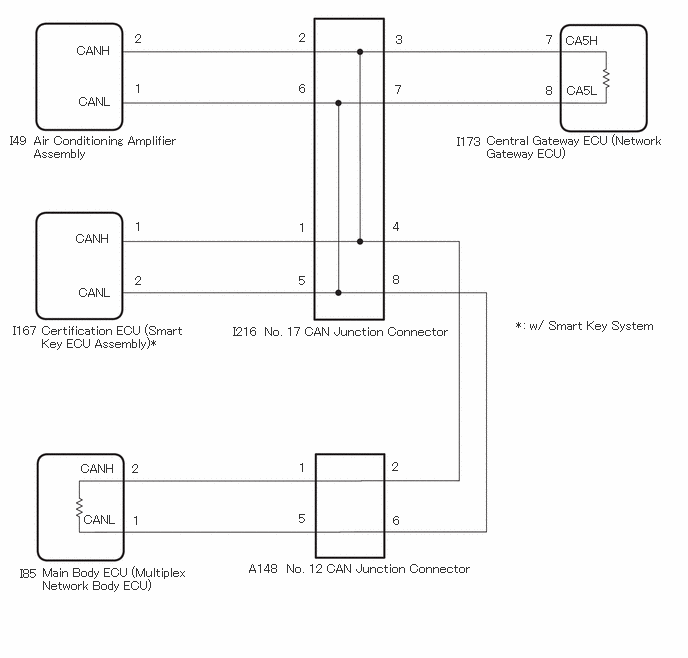

except G16E-GTS

GTY1118382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

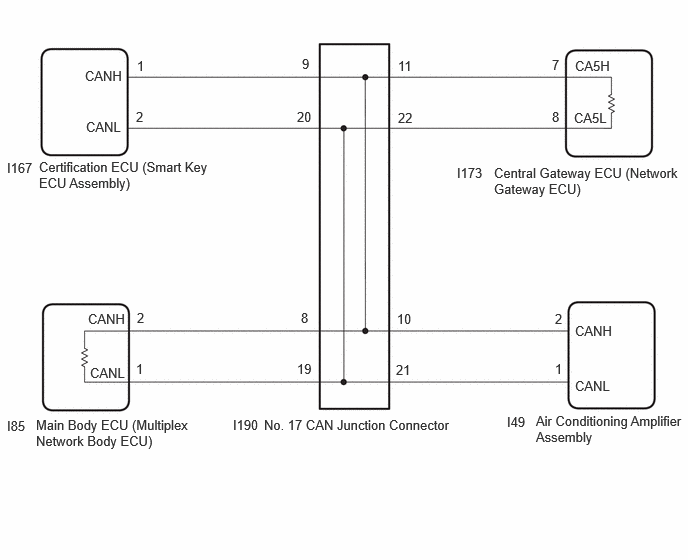

for G16E-GTS

GTY1116466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
