Reassembly [09/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

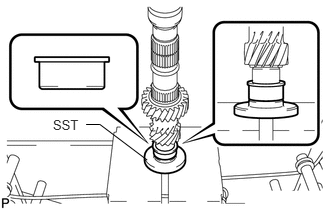

  1. INSTALL INPUT SHAFT FRONT BEARING INNER RACE
    1. Using SST and a press, install the input shaft front bearing inner race to the input shaft.
      GTY1022133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09608-00071
  2. INSTALL INPUT SHAFT SNAP RING
    1. Using a brass bar and hammer, tap a new input shaft snap ring to the input shaft.
      GTY1021750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

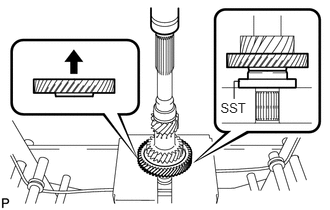

  3. INSTALL 4TH DRIVE GEAR
    1. Using SST and a press, install the 4th drive gear to the input shaft.
      GTY1022030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09309-14040
  4. INSTALL 3RD DRIVE GEAR
    1. Install the spacer to the input shaft.
      GTY1021661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

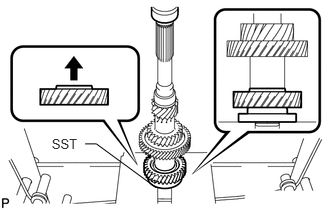

    2. Using SST and a press, install the 3rd drive gear to the input shaft.
      GTY1022426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09309-14040

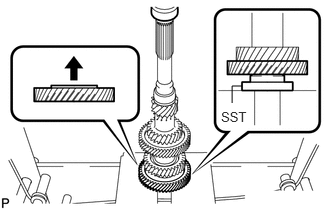

  5. INSTALL 6TH DRIVE GEAR
    1. Using SST and a press, install the 6th drive gear to the input shaft.
      GTY1021912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09309-14040

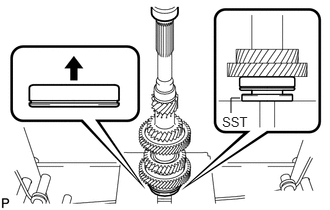

  6. INSTALL INPUT SHAFT REAR RADIAL BALL BEARING
    1. Using SST and a press, install the input shaft rear radial ball bearing to the input shaft.
      GTY1021992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09506-30012
  7. INSTALL INPUT SHAFT REAR BEARING SHAFT SNAP RING
    1. Select a new input shaft rear bearing shaft snap ring, using the table below, that makes the thrust clearance of the input shaft rear radial ball bearing less than 0.1 mm (0.00394 in.).
      GTY1022050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Mark
      INPUT SHAFT REAR BEARING SHAFT SNAP RING THICKNESS:

      Mark Thickness mm (in.) Mark Thickness mm (in.)
      A 1.80 to 1.85 (0.0709 to 0.0728) 3 2.20 to 2.25 (0.0866 to 0.0886)
      B 1.85 to 1.90 (0.0728 to 0.0748) 4 2.25 to 2.30 (0.0886 to 0.0906)
      C 1.90 to 1.95 (0.0748 to 0.0768) 5 2.30 to 2.35 (0.0906 to 0.0925)
      D 1.95 to 2.00 (0.0768 to 0.0787) 6 2.35 to 2.40 (0.0925 to 0.0945)
      E 2.00 to 2.05 (0.0787 to 0.0807) F 2.40 to 2.45 (0.0945 to 0.0965)
      0 2.05 to 2.10 (0.0807 to 0.0827) G 2.45 to 2.50 (0.0965 to 0.0984)
      1 2.10 to 2.15 (0.0827 to 0.0846) H 2.50 to 2.55 (0.0984 to 0.1004)
      2 2.15 to 2.20 (0.0846 to 0.0866) - -
    2. Using a snap ring expander, install the input shaft rear bearing shaft snap ring to the input shaft.
      GTY1022307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
