Disassembly [09/2022 - ]: Procedure
WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE INPUT SHAFT REAR BEARING SHAFT SNAP RING
- Using a snap ring expander, remove the input shaft rear bearing shaft snap ring from the input shaft.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE INPUT SHAFT REAR RADIAL BALL BEARING

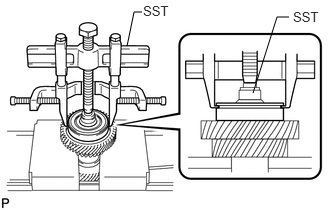

- Using SST, remove the input shaft rear radial ball bearing from the input shaft.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- SST: 09950-40011
- 09951-04020
- 09952-04010
- 09953-04020
- 09954-04010
- 09955-04011
- 09957-04010
- 09958-04011
- SST: 09631-20031
- REMOVE 6TH DRIVE GEAR

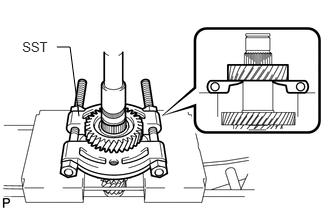

- Using SST and a press, remove the 6th drive gear from the input shaft.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE 3RD DRIVE GEAR

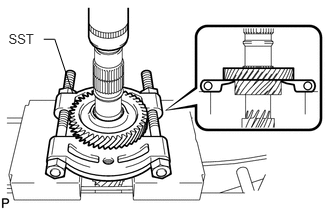

- Using SST and a press, remove the 3rd drive gear from the input shaft.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the spacer from the input shaft.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE 4TH DRIVE GEAR

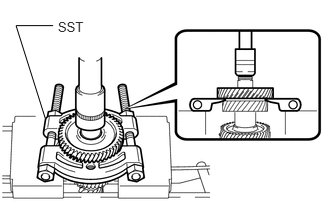

- Using SST and a press, remove the 4th drive gear from the input shaft.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE INPUT SHAFT SNAP RING
- Using 2 screwdrivers and a hammer, remove the input shaft snap ring from the input shaft.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE INPUT SHAFT FRONT BEARING INNER RACE

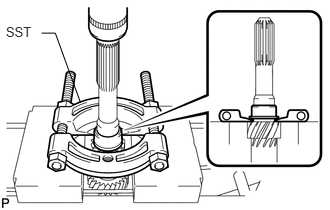

- Using SST and a press, remove the input shaft front bearing inner race from the input shaft.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
