Components [09/2022 - ]
WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

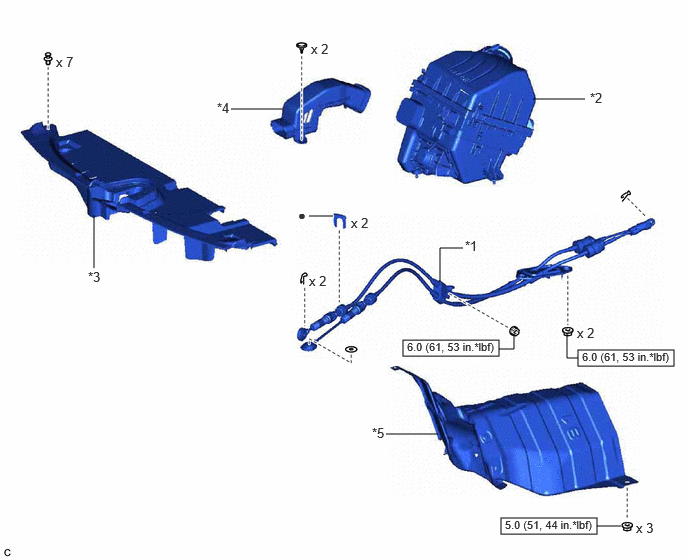

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | TRANSMISSION CONTROL CABLE ASSEMBLY | *2 | AIR CLEANER WITH AIR CLEANER HOSE |
| *3 | RADIATOR SUPPORT OPENING COVER | *4 | NO. 1 AIR CLEANER INLET |
| *5 | NO. 1 FRONT FLOOR HEAT INSULATOR SUB-ASSEMBLY | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
