Components [09/2022 - ]
WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

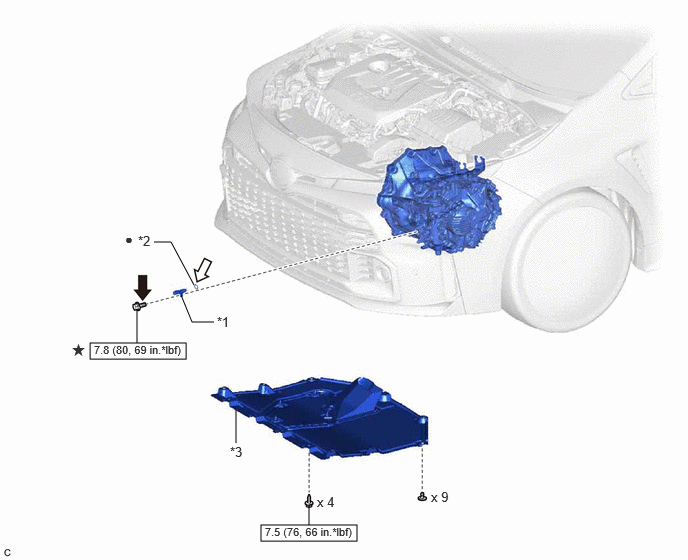

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | TRANSMISSION REVOLUTION SENSOR | *2 | O-RING |
| *3 | NO. 1 ENGINE UNDER COVER ASSEMBLY | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent | Gear Oil | ||
| * | Precoated part | - | - |
