Removal [09/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. SECURE VEHICLE
    1. Fully apply the parking brake and chock a wheel.
      WARNING:
      • Make sure to apply the parking brake and chock a wheel before performing this procedure.
        GTY655852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • If the vehicle is not secure and the shift lever is moved to neutral, the vehicle may suddenly move, possibly resulting in an accident or serious injury.
  2. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [09/2022 - 11/2022] , or refer to REMOVAL [11/2022 - 09/2024] , or refer to REMOVAL [09/2024 - ]

  3. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

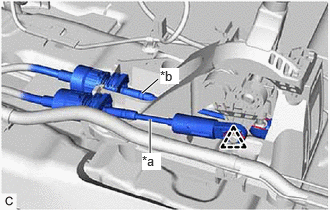

    1. Remove the clip and disconnect the transmission control select cable from the floor shift shift lever assembly.
      GTY1112286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Transmission Control Select Cable
      *b Transmission Control Shift Cable
    2. Disconnect the transmission control shift cable from the floor shift shift lever assembly.

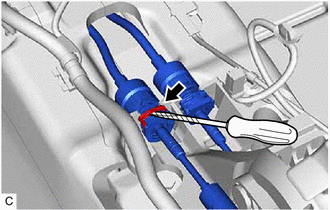

    3. Using a screwdriver with its tip wrapped with protective tape, pull out the stopper of the transmission control select cable.
      NOTE:

      Do not remove the stopper. If it is removed, reinstall it to its original position.

      GTY1109654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

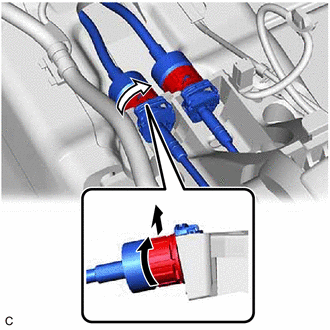

    4. Rotate the nut counterclockwise approximately 180° and, while holding the nut in that position, disconnect the transmission control select cable from the floor shift shift lever assembly.
      NOTE:
      • Do not rotate the nut excessively as the internal spring may jump out and the transmission control cable assembly will not be reusable.
      • Do not forcibly pull the transmission control cable assembly into the cabin.
      GTY1109655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disconnect the transmission control shift cable from the floor shift shift lever assembly in the same manner as the transmission control select cable.
  4. REMOVE FLOOR SHIFT SHIFT LEVER ASSEMBLY

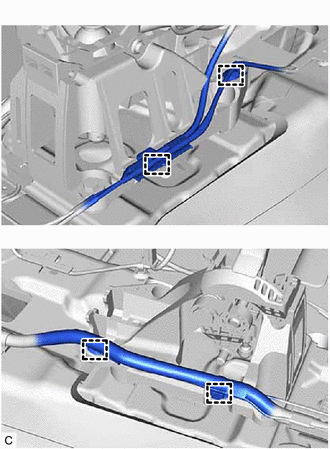

    1. Disengage the 4 clamps to disconnect the wire harness from the floor shift shift lever assembly.
      GTY1109645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

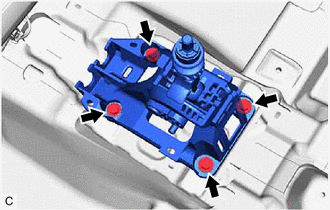

    2. Remove the 4 bolts and floor shift shift lever assembly from the vehicle body.
      GTY1109689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
