Components [09/2024 - ]
WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH | *2 | PIN HOLD CLIP |
| *3 | FRONT FENDER LINER RETAINER | - | - |

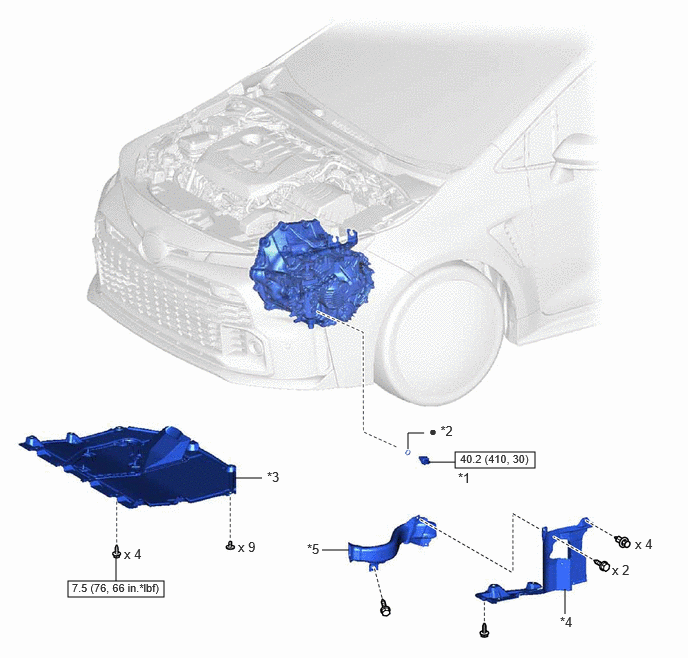

Fig 2: Neutral Position Switch Replacement Components With Torque Specifications [09/2024 - ] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NEUTRAL POSITION SWITCH | *2 | GASKET |
| *3 | NO. 1 ENGINE UNDER COVER ASSEMBLY | *4 | REAR ENGINE UNDER COVER LH |
| *5 | NO. 3 ENGINE UNDER COVER AIR GUIDE | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
