INSPECT REVERSE IDLER GEAR THRUST CLEARANCE

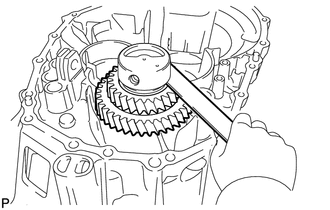

Using a feeler gauge, measure the reverse idler gear thrust clearance.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Clearance

0.40 to 1.05 mm (0.0157 to 0.0413 in.)

Maximum Clearance

1.05 mm (0.0413 in.)

If the clearance exceeds the maximum, replace the reverse idler gear, needle roller bearing or reverse idler gear shaft.

INSPECT REVERSE IDLER GEAR RADIAL CLEARANCE

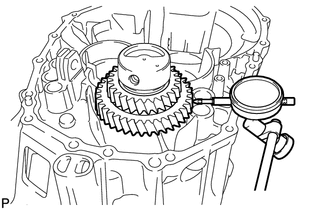

Using a dial indicator, measure the reverse idler gear radial clearance.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Clearance

0.015 to 0.048 mm (0.000591 to 0.00189 in.)

Maximum Clearance

0.048 mm (0.00189 in.)

If the clearance exceeds the maximum, replace the reverse idler gear, needle roller bearing or reverse idler gear shaft.

INSPECT NO. 1 GEAR SHIFT FORK

Using a micrometer, measure the outer diameter of the No. 1 gear shift fork.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Outer Diameter

13.982 to 14.00 mm (0.5505 to 0.5512 in.)

Minimum Outer Diameter

13.982 mm (0.5505 in.)

If the outer diameter is less than the minimum, replace the No. 1 gear shift fork.

Using a vernier caliper, measure the No. 1 gear shift fork.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Thickness

9.50 to 9.80 mm (0.374 to 0.386 in.)

If the thickness is not as specified, replace the No. 1 gear shift fork.

INSPECT 3RD AND 4TH SHIFT FORK SHAFT

Using a micrometer, measure the outer diameter of the 3rd and 4th shift fork shaft.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Outer Diameter

13.982 to 14.00 mm (0.5505 to 0.5512 in.)

Minimum Outer Diameter

13.982 mm (0.5505 in.)

If the outer diameter is less than the minimum, replace the 3rd and 4th shift fork shaft.

INSPECT NO. 3 GEAR SHIFT FORK

Using a micrometer, measure the outer diameter of the No. 3 gear shift fork.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Outer Diameter

13.982 to 14.00 mm (0.5505 to 0.5512 in.)

Minimum Outer Diameter

13.982 mm (0.5505 in.)

If the outer diameter is less than the minimum, replace the No. 3 gear shift fork.

Using a vernier caliper, measure the No. 3 gear shift fork.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Thickness

9.50 to 9.80 mm (0.374 to 0.386 in.)

If the thickness is not as specified, replace the No. 3 gear shift fork.

INSPECT REVERSE SHIFT FORK SHAFT

Using a micrometer, measure the outer diameter of the reverse shift fork shaft.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Outer Diameter

13.982 to 14.00 mm (0.5505 to 0.5512 in.)

Minimum Outer Diameter

13.982 mm (0.5505 in.)

If the outer diameter is less than the minimum, replace the reverse shift fork shaft.

INSPECT NO. 5 GEAR SHIFT FORK SHAFT

Using a micrometer, measure the outer diameter of the No. 5 gear shift fork shaft.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Outer Diameter

15.966 to 15.984 mm (0.6286 to 0.6293 in.)

Minimum Outer Diameter

15.966 mm (0.6286 in.)

If the outer diameter is less than the minimum, replace the No. 5 gear shift fork shaft.

INSPECT NO. 2 GEAR SHIFT FORK

Using a vernier caliper, measure the No. 2 gear shift fork.

Standard Inside Diameter and Thickness

9.50 to 9.80 mm (0.374 to 0.386 in.)

14.010 to 14.043 mm (0.552 to 0.553 in.)

14.70 to 15.30 mm (0.579 to 0.602 in.)

If the inside diameter or thickness is not as specified, replace the No. 2 gear shift fork.

INSPECT REVERSE SHIFT FORK

Using a vernier caliper, measure the reverse shift fork.

Standard Inside Diameter and Thickness

4.40 to 4.56 mm (0.173 to 0.178 in.)

14.010 to 14.043 mm (0.552 to 0.553 in.)

14.7 to 15.3 mm (0.579 to 0.602 in.)

If the inside diameter or thickness is not as specified, replace the reverse shift fork.

INSPECT NO. 2 GEAR SHIFT HEAD

Using a vernier caliper, measure the No. 2 gear shift head.

Standard Inside Diameter

13.994 to 14.054 mm (0.551 to 0.553 in.)

Maximum Inside Diameter

14.054 mm (0.553 in.)

If the inside diameter exceeds the maximum, replace the No. 2 gear shift head.

INSPECT NO. 3 GEAR SHIFT HEAD

Using a vernier caliper, measure the No. 3 gear shift head.

Standard Inside Diameter

15.994 to 16.054 mm (0.63 to 0.632 in.)

14.20 to 14.25 mm (0.559 to 0.561 in.)

Maximum Inside Diameter

16.054 mm (0.632 in.)

14.25 mm (0.561 in.)

If the inside diameter exceeds the maximum, replace the No. 3 gear shift head.
