Components [09/2022 - ]
WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

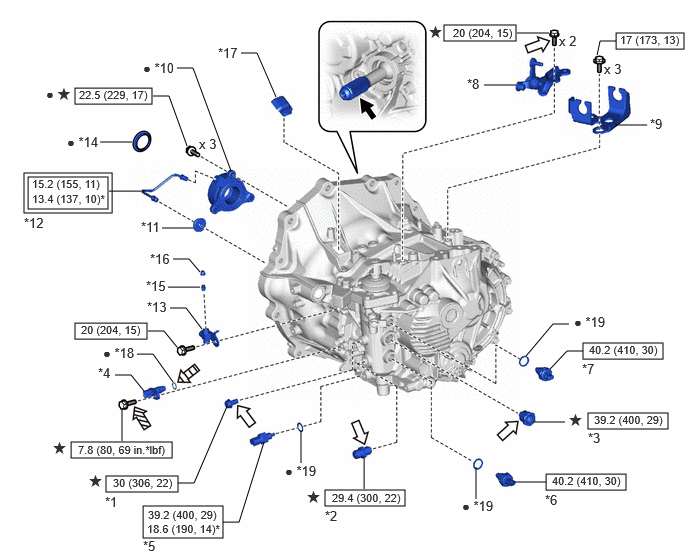

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
SHIFT GATE PIN |
*2 |
NO. 2 LOCK BALL ASSEMBLY |
| *3 |
NO. 1 LOCK BALL ASSEMBLY |
*4 |
TRANSMISSION REVOLUTION SENSOR |
| *5 |
TEMPERATURE SENSOR |
*6 |
NEUTRAL POSITION SWITCH |
| *7 |
BACK-UP LIGHT SWITCH ASSEMBLY |
*8 |
SELECTING BELL CRANK ASSEMBLY |
| *9 |
CONTROL CABLE BRACKET ASSEMBLY |
*10 |
CLUTCH RELEASE CYLINDER WITH BEARING ASSEMBLY |
| *11 |
CLUTCH TUBE BOOT |
*12 |
BLEEDER CLUTCH RELEASE TUBE |
| *13 |
CLUTCH RELEASE BLEEDER SUB-ASSEMBLY |
*14 |
CLUTCH RELEASE BEARING PLATE |
| *15 |
RELEASE CYLINDER BLEEDER PLUG |
*16 |
RELEASE CYLINDER BLEEDER PLUG CAP |
| *17 |
NO. 1 CLUTCH HOUSING COVER |
*18 |
O-RING |
| *19 |
GASKET |
- |
- |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
| * |
For use with SST or union nut wrench |
• |
Non-reusable part |
|
Clutch spline grease |
|
Adhesive 1344 |
|
Adhesive 1324 |
|
Gear Oil |
| * |
Precoated part |
- |
- |

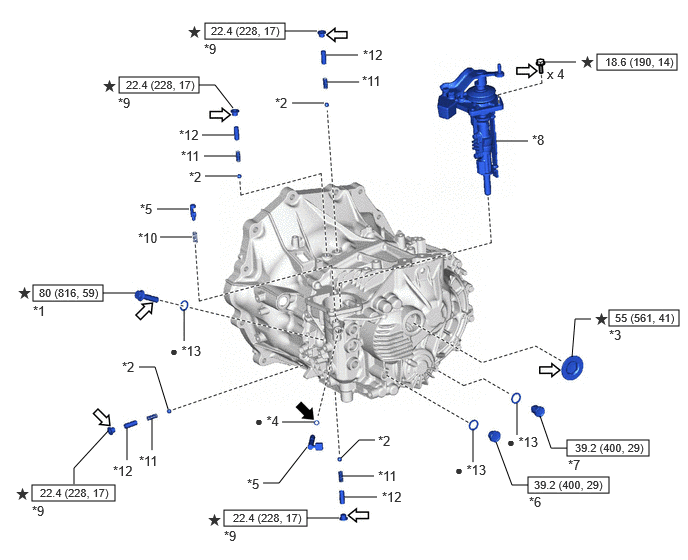

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
REVERSE IDLER GEAR SHAFT BOLT |
*2 |
SHIFT DETENT BALL |
| *3 |
MANUAL TRANSMISSION CASE PLUG |
*4 |
SHIFT ARM PIVOT O-RING |
| *5 |
SHIFT AND SELECT LEVER SHAFT STRAIGHT PIN |
*6 |
MANUAL TRANSMISSION FILLER PLUG |
| *7 |
DRAIN PLUG |
*8 |
SHIFT AND SELECT LEVER ASSEMBLY |
| *9 |
DETENT BALL PLUG |
*10 |
SPRING |
| *11 |
SHIFT DETENT BALL COMPRESSION SPRING |
*12 |
SHIFT DETENT BALL COMPRESSION SPRING SEAT |
| *13 |
GASKET |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
MP grease |
|
Adhesive 1344 |
| * |
Precoated part |
- |
- |

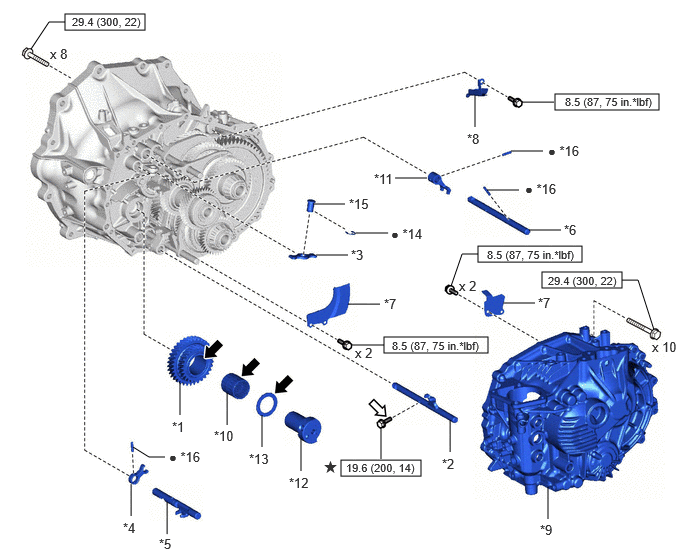

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
REVERSE IDLER GEAR |
*2 |
REVERSE SHIFT FORK SHAFT |
| *3 |
SHIFT ARM |
*4 |
NO. 3 GEAR SHIFT HEAD |
| *5 |
NO. 5 GEAR SHIFT FORK SHAFT |
*6 |
3RD AND 4TH SHIFT FORK SHAFT |
| *7 |
TRANSMISSION OIL SEPARATOR |
*8 |
NO. 1 OIL RECEIVER PIPE |
| *9 |
MANUAL TRANSMISSION CASE |
*10 |
NEEDLE ROLLER BEARING |
| *11 |
NO. 2 GEAR SHIFT HEAD |
*12 |
REVERSE IDLER GEAR SHAFT |
| *13 |
REVERSE IDLER THRUST WASHER |
*14 |
E-RING |
| *15 |
SHIFT ARM PIVOT |
*16 |
SLOTTED SPRING PIN |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
MP grease |
|
Adhesive 1344 |
| * |
Precoated part |
- |
- |

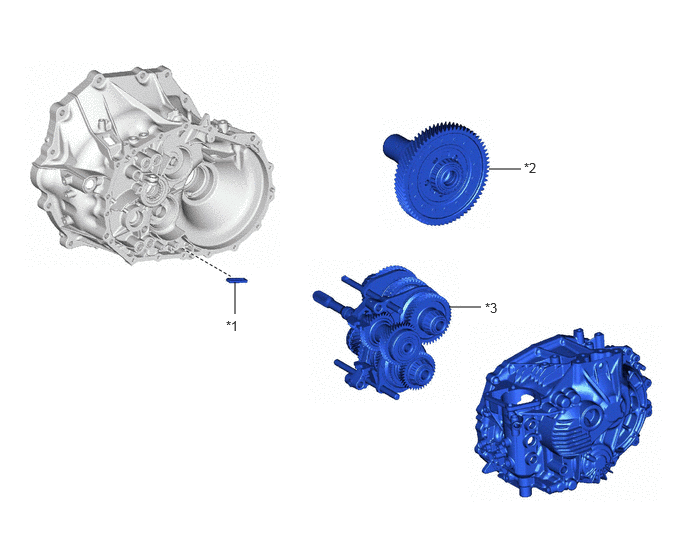

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
TRANSMISSION MAGNET |
*2 |
DIFFERENTIAL GEAR ASSEMBLY |
| *3 |
INPUT SHAFT, NO. 1 OUTPUT SHAFT AND NO. 2 OUTPUT SHAFT |
- |
- |

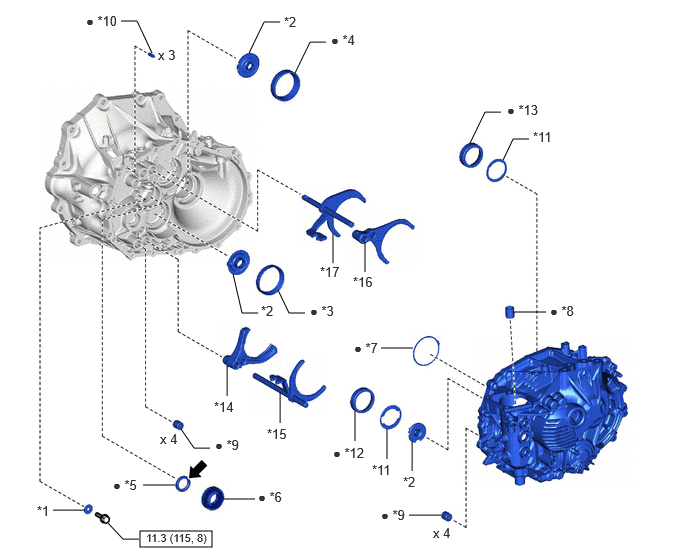

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
BEARING LOCK PLATE |
*2 |
OUTPUT SHAFT COVER |
| *3 |
NO. 2 OUTPUT SHAFT FRONT BEARING |
*4 |
OUTPUT SHAFT FRONT BEARING |
| *5 |
FRONT TRANSAXLE CASE OIL SEAL |
*6 |
INPUT SHAFT FRONT BEARING |
| *7 |
INPUT SHAFT REAR BEARING SHAFT SNAP RING |
*8 |
SHIFT AND SELECT LEVER SHAFT NEEDLE ROLLER BEARING |
| *9 |
SHIFT FORK SHAFT BEARING |
*10 |
MANUAL TRANSMISSION CASE STRAIGHT PIN |
| *11 |
OUTPUT SHAFT REAR BEARING SHIM |
*12 |
NO. 2 OUTPUT SHAFT REAR BEARING |
| *13 |
OUTPUT SHAFT REAR BEARING |
*14 |
REVERSE SHIFT FORK |
| *15 |
NO. 3 GEAR SHIFT FORK |
*16 |
NO. 2 GEAR SHIFT FORK |
| *17 |
NO. 1 GEAR SHIFT FORK |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
MP grease |
- |
- |

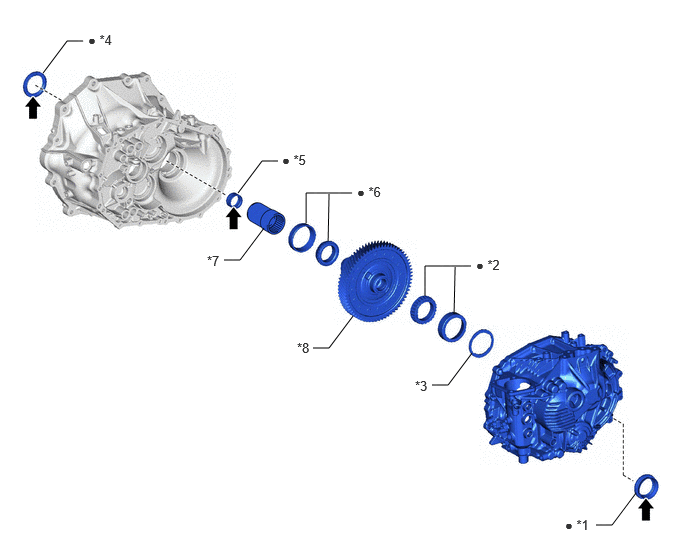

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
FRONT DRIVE SHAFT OIL SEAL LH |
*2 |
FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING |
| *3 |
FRONT DIFFERENTIAL CASE REAR SHIM |
*4 |
TRANSAXLE CASE OIL SEAL |
| *5 |
FRONT DRIVE SHAFT OIL SEAL RH |
*6 |
FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING |
| *7 |
TRANSMISSION SLEEVE YOKE |
*8 |
FRONT NO. 1 DIFFERENTIAL CASE SUB-ASSEMBLY |
| • |
Non-reusable part |
|
MP grease |
