Components [09/2022 - ]
WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

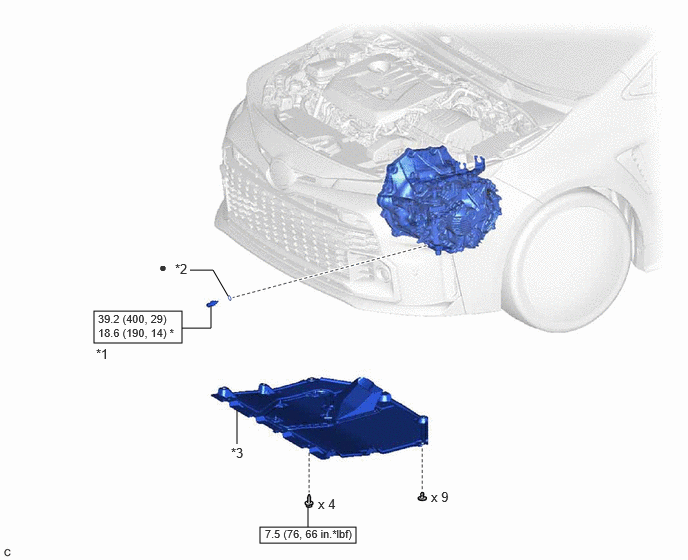

Fig 1: Manual Transaxle Oil Temperature Sensor Replacement Components With Torque Specifications [09/2022 - ]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | TEMPERATURE SENSOR | *2 | GASKET |
| *3 | NO. 1 ENGINE UNDER COVER ASSEMBLY | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | * | For use with SST | |
| • | Non-reusable part | - | - |
