Components [09/2022 - ]

WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

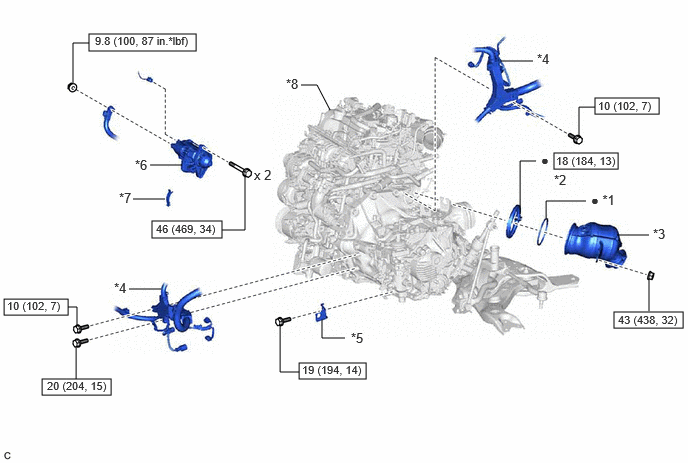

Fig 1: Manual Transaxle Assembly Replacement Components With Torque Specifications (1 Of 4)
GTY1251038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 OUTLET TURBINE ELBOW GASKET *2 EXHAUST PIPE CLAMP
*3 EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY *4 ENGINE WIRE
*5 CLUTCH FLEXIBLE HOSE BRACKET *6 STARTER ASSEMBLY
*7 FLYWHEEL HOUSING SIDE COVER *8 ENGINE ASSEMBLY WITH TRANSAXLE
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) N*m (kgf*cm, ft.*lbf): Specified torque
• Non-reusable part - -

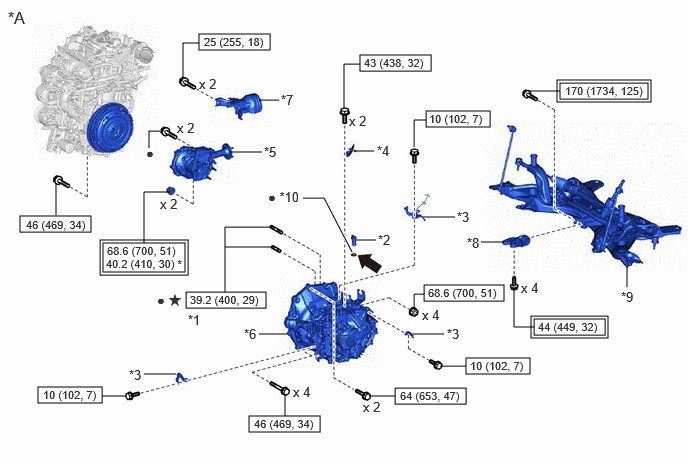

Fig 2: Manual Transaxle Assembly Replacement Components With Torque Specifications (2 Of 4)
GTY1112570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A Type A - -
*1 TRANSFER AND TRANSAXLE SETTING STUD BOLT *2 TRANSMISSION CASE PLUG ASSEMBLY
*3 WIRE HARNESS CLAMP BRACKET *4 EXHAUST PIPE SUPPORT STAY
*5 TRANSFER ASSEMBLY *6 MANUAL TRANSAXLE ASSEMBLY
*7 PROPELLER SHAFT HEAT INSULATOR *8 NO. 2 ENGINE MOVING CONTROL ROD
*9 FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY *10 O-RING
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) N*m (kgf*cm, ft.*lbf): Specified torque
* For use with SST and union nut wrench • Non-reusable part
Gear Oil * Precoated part

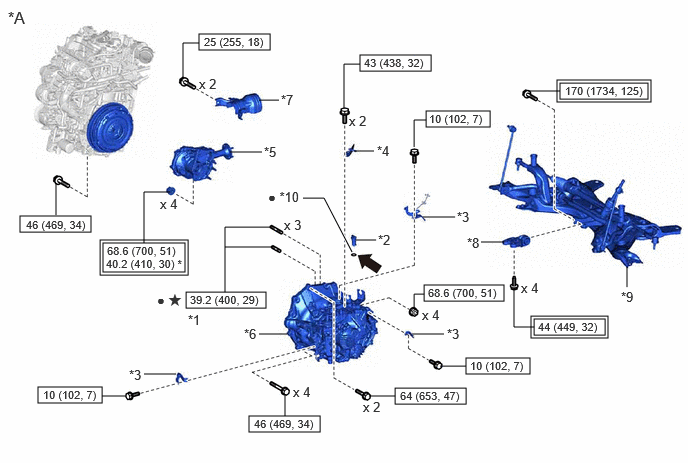

Fig 3: Manual Transaxle Assembly Replacement Components With Torque Specifications (3 Of 4)
GTY1115808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A Type B - -
*1 TRANSFER AND TRANSAXLE SETTING STUD BOLT *2 TRANSMISSION CASE PLUG ASSEMBLY
*3 WIRE HARNESS CLAMP BRACKET *4 EXHAUST PIPE SUPPORT STAY
*5 TRANSFER ASSEMBLY *6 MANUAL TRANSAXLE ASSEMBLY
*7 PROPELLER SHAFT HEAT INSULATOR *8 NO. 2 ENGINE MOVING CONTROL ROD
*9 FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY *10 O-RING
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) N*m (kgf*cm, ft.*lbf): Specified torque
* For use with SST and union nut wrench • Non-reusable part
Gear Oil * Precoated part

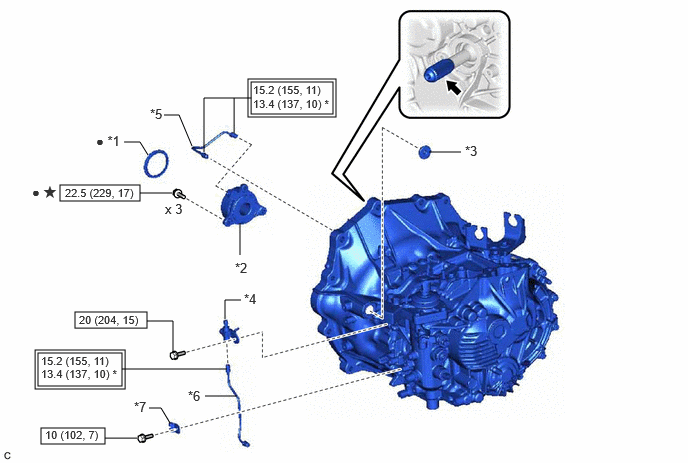

Fig 4: Manual Transaxle Assembly Replacement Components With Torque Specifications (4 Of 4)
GTY1113882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CLUTCH RELEASE BEARING PLATE *2 CLUTCH RELEASE CYLINDER WITH BEARING ASSEMBLY
*3 CLUTCH TUBE BOOT *4 CLUTCH RELEASE BLEEDER SUB-ASSEMBLY
*5 BLEEDER CLUTCH RELEASE TUBE *6 BLEEDER TO FLEXIBLE HOSE TUBE
*7 CLAMP - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) N*m (kgf*cm, ft.*lbf): Specified torque
* For use with union nut wrench • Non-reusable part
Clutch spline grease * Precoated part
