Components [09/2022 - ]
WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

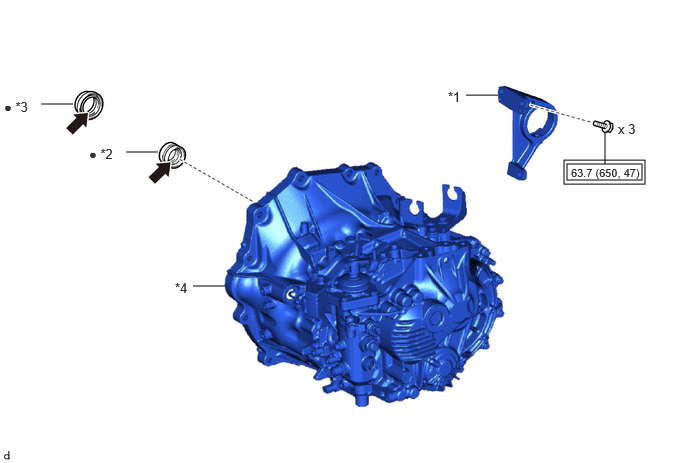

Fig 1: Differential Oil Seal (For RH Side) Replacement Components With Torque Specifications [09/2022 - ]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | DRIVE SHAFT BEARING BRACKET | *2 | FRONT DRIVE SHAFT OIL SEAL RH |
| *3 | TRANSAXLE CASE OIL SEAL | *4 | MANUAL TRANSAXLE ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part | |
| MP grease | - | - |
