Components [09/2022 - ]

WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

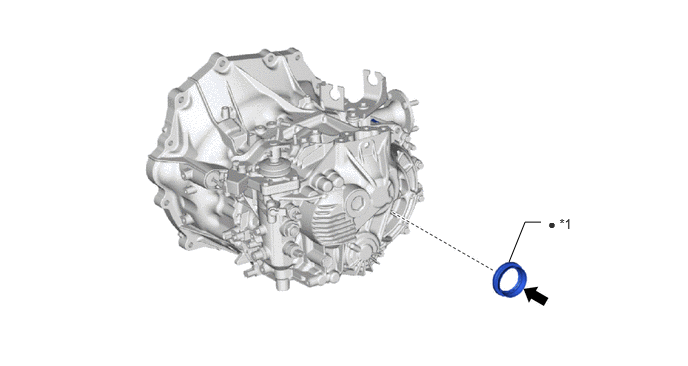

Fig 1: Differential Oil Seal (For LH Side) Replacement Components [09/2022 - ]
GTY1023645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT DRIVE SHAFT OIL SEAL LH - -
• Non-reusable part MP grease
