Section 318 (Manual Transaxle System - Service Information (1 Of 2))
>>
Back-Up Light Switch
>>
Components [09/2022 - 11/2022]
Components [09/2022 - 11/2022]
WARNING:
This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

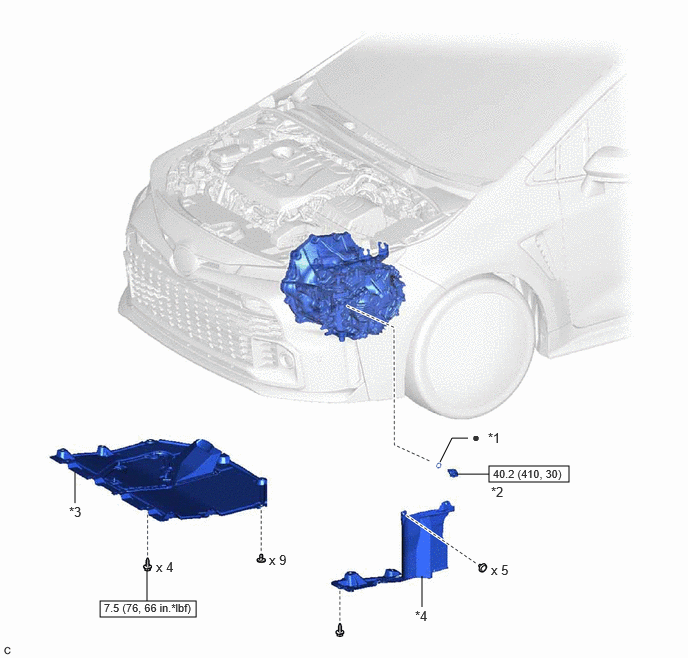

Fig 1: Back-Up Light Switch Replacement Components With Torque Specifications [09/2022 - 11/2022]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
GASKET
*2
BACK-UP LIGHT SWITCH ASSEMBLY
*3
NO. 1 ENGINE UNDER COVER ASSEMBLY
*4
REAR ENGINE UNDER COVER LH
N*m (kgf*cm, ft.*lbf): Specified torque
•
Non-reusable part
