Components [01/2019 - 11/2022]
WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

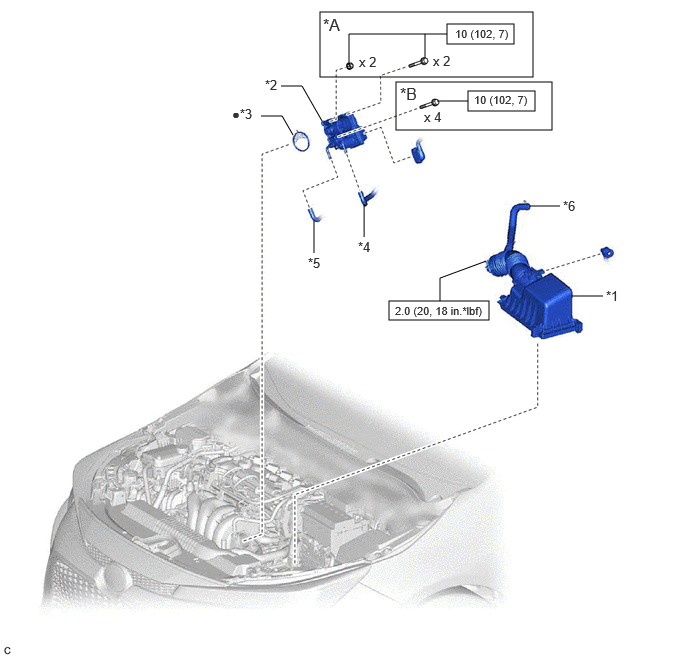

| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Stud Bolt | *B | w/o Stud Bolt |
| *1 | AIR CLEANER CAP WITH AIR CLEANER HOSE | *2 | THROTTLE BODY ASSEMBLY |
| *3 | THROTTLE BODY GASKET | *4 | WATER BY-PASS HOSE |
| *5 | NO. 2 WATER BY-PASS HOSE | *6 | NO. 2 VENTILATION HOSE |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
