Removal [01/2019 - 11/2022]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE MASS AIR FLOW METER SUB-ASSEMBLY

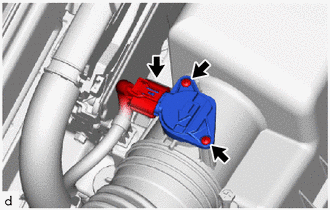

    1. Disconnect the mass air flow meter sub-assembly connector.
      GTY767230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and mass air flow meter sub-assembly from the air cleaner cap sub-assembly.
      NOTE:

      If the mass air flow meter sub-assembly has been struck or dropped, replace it.
