Components [01/2019 - 11/2022]

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

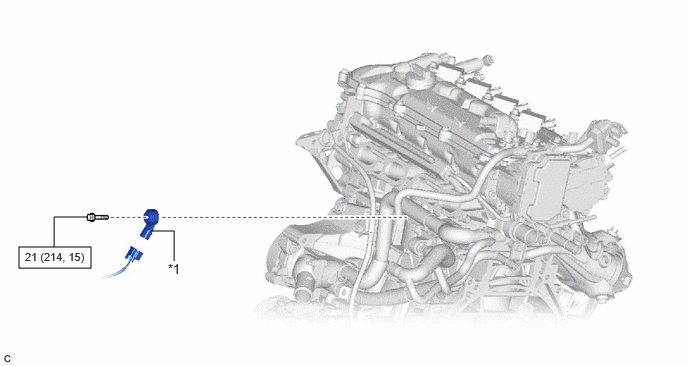

Fig 1: Knock Sensor Replacement Components With Torque Specifications
GTY869412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 KNOCK CONTROL SENSOR - -
N.m (kgf/cm, ft.lbf): Specified torque - -
