Components [01/2019 - 11/2022]

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

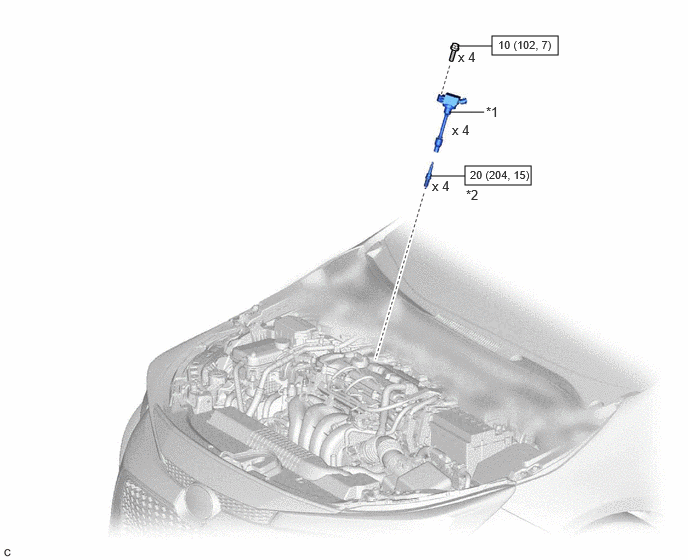

Fig 1: Ignition Coil And Spark Plug Replacement Components With Torque Specifications

Callout	Description	Callout	Description
*1	IGNITION COIL ASSEMBLY	*2	SPARK PLUG
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
