Components [01/2019 - 11/2022]

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

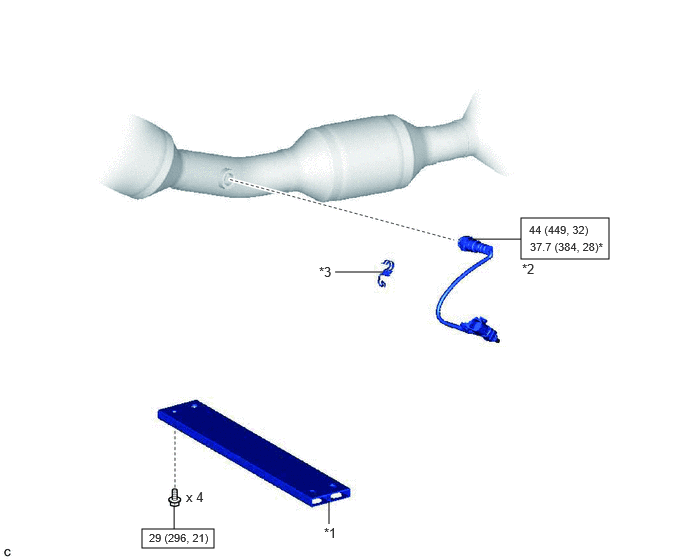

Fig 1: Heated Oxygen Sensor Replacement Components With Torque Specifications

Callout	Description	Callout	Description
*1	FRONT FLOOR CENTER BRACE	*2	HEATED OXYGEN SENSOR
*3	WIRE HARNESS CLAMP BRACKET	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with SST
