Components [01/2019 - 11/2022]

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Engine Oil Temperature Sensor Replacement Components [01/2019 - 11/2022] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	REAR ENGINE UNDER COVER RH	-	-
*a	Type A: x 7 Type B: x 8	-	-

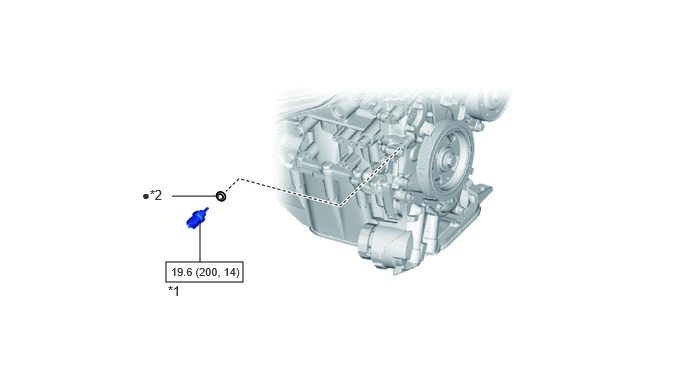

Fig 2: Engine Oil Temperature Sensor Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	ENGINE OIL TEMPERATURE SENSOR	*2	GASKET
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
