Removal [09/2022 - 11/2022]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE BATTERY

    Refer to REMOVAL [09/2022 - 11/2022]

  2. DISCONNECT ENGINE WIRE
    1. w/ Canister Pump Module:
      GTY869352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Bolt *b Nut
      1. Disengage the 9 clamps, and then disconnect the 21 connectors.
      2. Remove the 4 bolts and nut, and disconnect the engine wire.
    2. w/o Canister Pump Module:

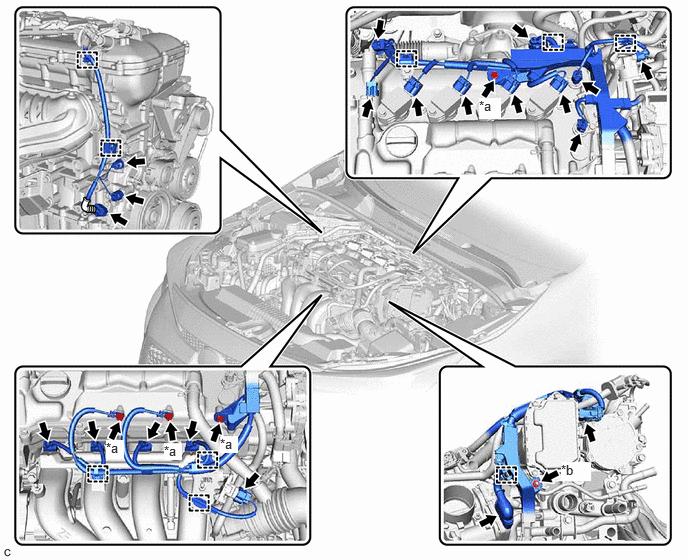

      GTY846226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Bolt *b Nut
      1. Disengage the 9 clamps, and then disconnect the 20 connectors.
      2. Remove the 4 bolts and nut, and disconnect the engine wire.
  3. DISCONNECT NO. 2 VENTILATION HOSE
    1. Slide the clip and disconnect the No. 2 ventilation hose from the cylinder head cover sub-assembly.
      GTY888987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE PURGE VALVE (PURGE VSV)
    1. Disconnect the No. 1 fuel vapor feed hose from the intake manifold.

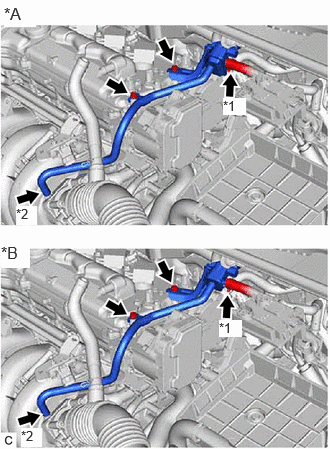

      GTY885378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Canister Pump Module
      *B w/o Canister Pump Module
      *1 Fuel Vapor Feed Hose
      *2 No. 1 Fuel Vapor Feed Hose
    2. Slide the clip and disconnect the fuel vapor feed hose from the purge valve (purge VSV).
    3. Remove the 2 bolts and purge valve (purge VSV) from the cylinder head cover sub-assembly.
  5. REMOVE IGNITION COIL ASSEMBLY

    See step  1

  6. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 12

  7. REMOVE CYLINDER HEAD COVER GASKET

    Refer to PROCEDURE - Step 13

  8. REMOVE CONTINUOUSLY VARIABLE VALVE LIFT CONTROLLER ASSEMBLY
    1. Using a screwdriver, slide the valve lift control actuator connector clip from the valve lift control actuator connector.
      GTY426427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Slide only the upper part of the valve lift control actuator connector clip, as the straight pin will fall out from the bottom if the valve lift control actuator connector clip is completely removed.

    2. Rotate the crankshaft clockwise until the intake camshaft position at the No. 1 cylinder and No. 3 cylinder are as shown in the illustration.

      HINT:

      If the intake camshaft position is not as shown in the illustration, rotate the crankshaft clockwise again so that the intake camshaft is aligned as shown in the illustration.

      GTY756423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a No. 1 Cylinder
      *b No. 3 Cylinder
    3. Turn the crankshaft counterclockwise approximately 10 to 15°.
    4. Using 2 screwdrivers, lightly pry the valve lift control actuator connector to make a space between the continuously variable valve lift controller assembly and camshaft housing sub-assembly.
      GTY705685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not forcibly pry the valve lift control actuator connector.
      • Do not damage the camshaft housing sub-assembly and camshaft bearing cap.
    5. Using a Magnet Hand, remove the straight pin from the valve lift control actuator connector.
      GTY423229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not drop the straight pin into the engine.

      HINT:

      • The straight pin can be removed by utilizing the space between the continuously variable valve lift controller assembly and camshaft housing sub-assembly to move the continuously variable valve lift controller assembly so that there is no load on the straight pin.
      • If the straight pin cannot removed easily, slightly turn the crankshaft clockwise and then counterclockwise.
      • If the straight pin could not be removed using a Magnet Hand, proceed to *1. If the straight pin could be removed, proceed to *2.
    6. *1 (If straight pin could not be removed)
      GTY447465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a screwdriver, remove the valve lift control actuator connector clip from the valve lift control actuator connector.
        NOTE:

        Do not drop the valve lift control actuator connector clip into the engine.

      2. Align the end of SST with the straight pin hole of the valve lift control actuator connector and push up the straight pin approximately 5 mm (0.197 in.) as shown in the illustration.
        GTY875318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *1 Valve Lift Control Actuator Connector *2 Straight Pin
        *a Straight Pin Hole *b Tilt
        *c Push up - -
        • SST: 09249-37020
      3. Using pliers, remove the straight pin from the valve lift control actuator connector.
        GTY870907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Protective Tape
        NOTE:
        • Make sure to wrap the tips of the pliers with protective tape.
        • Do not drop the straight pin into the engine.
    7. GTY447465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *2 (If straight pin could be removed)

      1. Using a screwdriver, remove the valve lift control actuator connector clip from the valve lift control actuator connector.
        NOTE:

        Do not drop the valve lift control actuator connector clip into the engine.

    8. Remove the 2 nuts and wire harness clamp bracket from the camshaft housing sub-assembly.
      GTY450969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Remove the bolt from the continuously variable valve lift controller assembly.
    10. Remove the continuously variable valve lift controller assembly from the camshaft housing sub-assembly.
      GTY426418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      If the continuously variable valve lift controller assembly has been struck or dropped, replace it.

    11. Remove the O-ring from the continuously variable valve lift controller assembly.
      GTY444623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 O-ring
    12. Remove the valve lift control actuator connector from the valve rocker shaft assembly.
      GTY447425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
