Removal [01/2019 - 11/2022]: Procedure
WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Intake Side)
- Disconnect the camshaft timing oil control valve assembly connector.

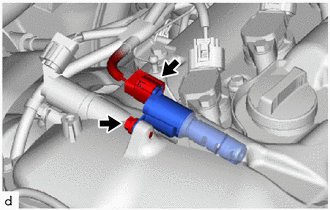

- Remove the bolt and camshaft timing oil control valve assembly from the cylinder head cover sub-assembly.NOTE:
- Do not allow foreign matter to contact the oil seal face of the camshaft timing oil control valve assembly (connecting surface with the cylinder head cover sub-assembly).
- If the camshaft timing oil control valve assembly has been struck or dropped, replace it.
- Remove the O-ring from the camshaft timing oil control valve assembly.
*1 O-ring
- Disconnect the camshaft timing oil control valve assembly connector.
- REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Side)
- Disconnect the camshaft timing oil control valve assembly connector.

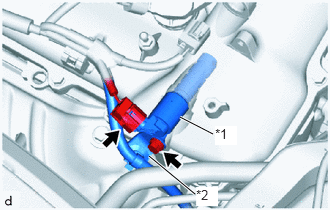

*1 Camshaft Timing Oil Control Valve Assembly *2 Wire Harness Bracket - Remove the bolt, wire harness bracket and camshaft timing oil control valve assembly from the cylinder head cover sub-assembly.NOTE:
- Do not allow foreign matter to contact the oil seal face of the camshaft timing oil control valve assembly (connecting surface with the cylinder head cover sub-assembly).
- If the camshaft timing oil control valve assembly has been struck or dropped, replace it.
- Remove the O-ring from the camshaft timing oil control valve assembly.
*1 O-ring
- Disconnect the camshaft timing oil control valve assembly connector.
