Removal [01/2019 - 09/2022]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, and 2020 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE RADIATOR SUPPORT OPENING COVER

    Refer to PROCEDURE - Step 2

  2. REMOVE VEHICLE APPROACHING SPEAKER ASSEMBLY

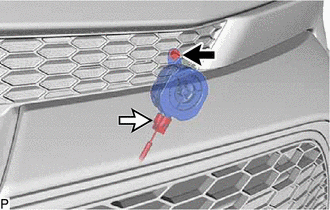

    1. Remove the bolt.
      GTY942252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the vehicle approaching speaker assembly.
