Components [01/2019 - 09/2022]
WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, and 2020 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

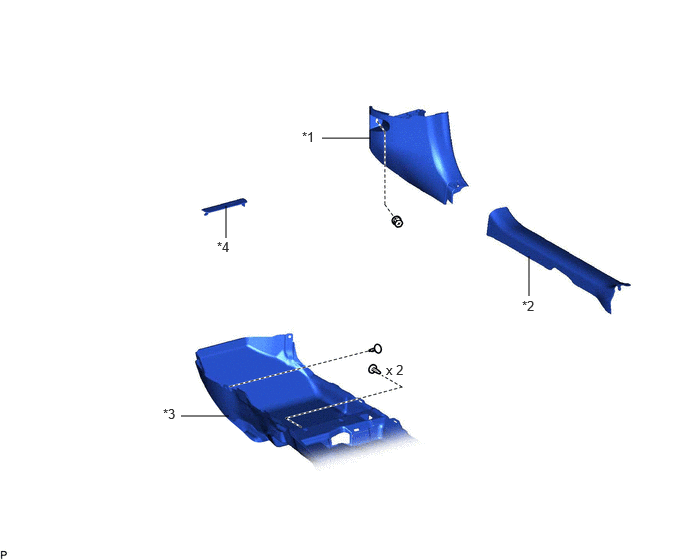

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | COWL SIDE TRIM SUB-ASSEMBLY RH | *2 | FRONT DOOR SCUFF PLATE RH |
| *3 | FRONT FLOOR CARPET ASSEMBLY | *4 | FRONT FLOOR CAUTION PLATE COVER |

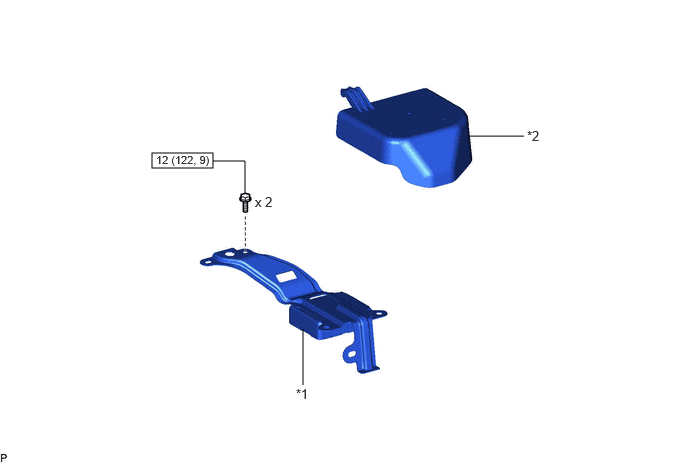

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | VEHICLE APPROACHING SPEAKER CONTROLLER | *2 | VEHICLE APPROACHING SPEAKER CONTROLLER COVER |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
