Inspection [09/2024 - ]: Procedure
WARNING: This page is about a different car, the 2025 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT DIFFERENTIAL CASE ASSEMBLY (w/o LSD)

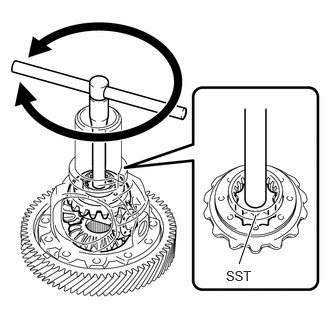

- Using SST, rotate the front differential side gear as shown in the illustration.
- SST: 09528-52010
- 09528-05030
Standard
The front differential side gear does not lock when rotated in either direction.
If the result is not as specified, replace the differential case assembly.
