Components [09/2024 - ]

WARNING: This page is about a different car, the 2025 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

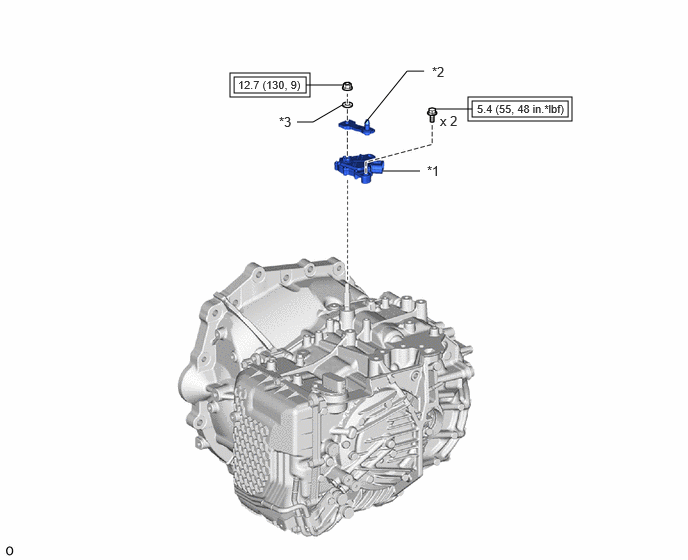

Fig 1: Automatic Transaxle Unit Replacement Components With Torque Specifications (1 Of 19)
GTY1252595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 PARK/NEUTRAL POSITION SWITCH ASSEMBLY *2 TRANSMISSION CONTROL SHAFT LEVER
*3 WASHER - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) - -

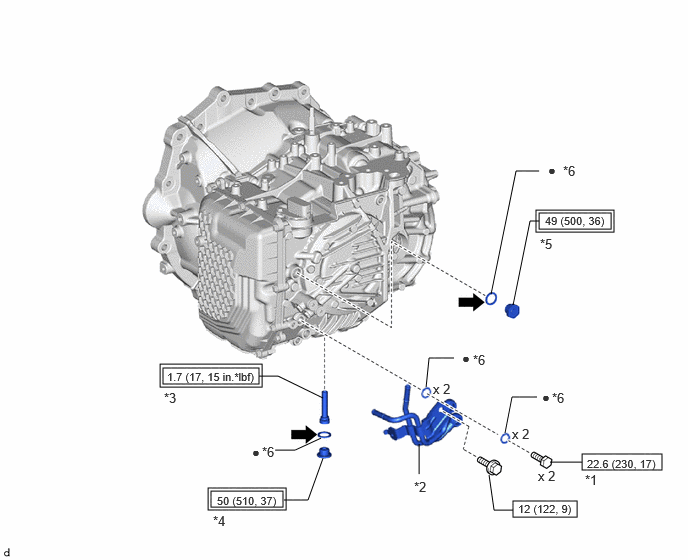

Fig 2: Automatic Transaxle Unit Replacement Components With Torque Specifications (2 Of 19)
GTY1251604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 OIL COOLER UNION BOLT *2 OIL COOLER UNION SUB-ASSEMBLY
*3 NO. 1 TRANSMISSION OIL FILLER TUBE *4 OVERFLOW PLUG
*5 REFILL PLUG *6 GASKET
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque
• Non-reusable part Toyota Genuine ATF WS

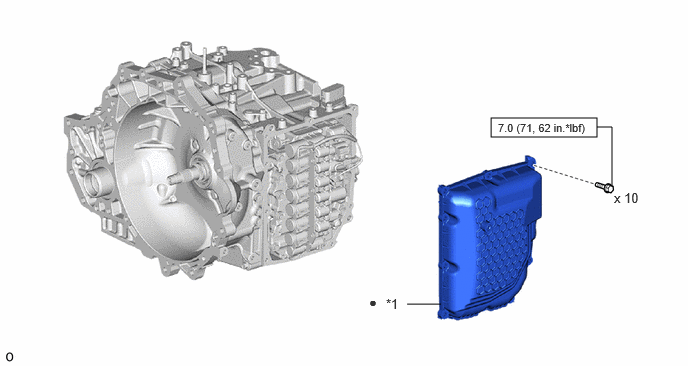

Fig 3: Automatic Transaxle Unit Replacement Components With Torque Specifications (3 Of 19)
GTY1251843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 TRANSMISSION CASE SIDE COVER - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part

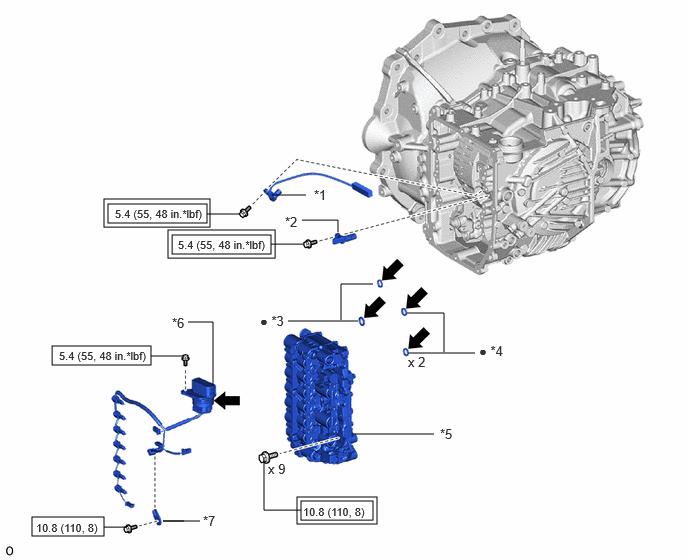

Fig 4: Automatic Transaxle Unit Replacement Components With Torque Specifications (4 Of 19)
GTY1250972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 TRANSMISSION REVOLUTION SENSOR (NC) *2 TRANSMISSION REVOLUTION SENSOR (NT)
*3 FRONT OIL PUMP COVER GASKET *4 TRANSAXLE CASE GASKET
*5 TRANSMISSION VALVE BODY ASSEMBLY *6 TRANSMISSION WIRE
*7 TEMPERATURE SENSOR CLAMP - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque
• Non-reusable part Toyota Genuine ATF WS

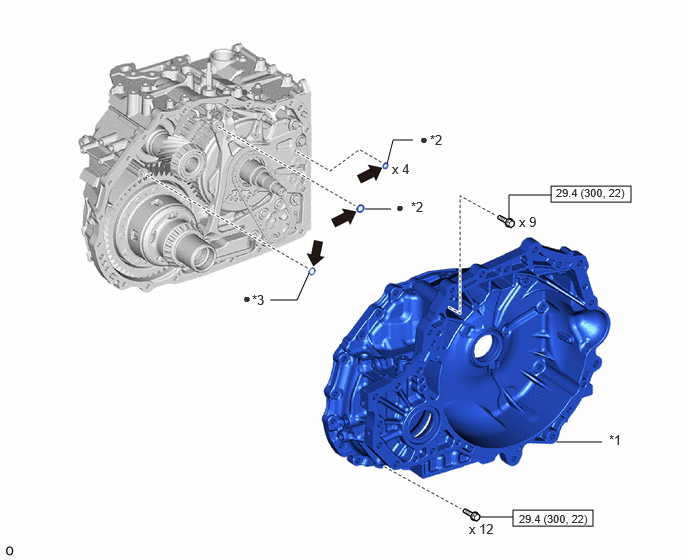

Fig 5: Automatic Transaxle Unit Replacement Components With Torque Specifications (5 Of 19)
GTY1251547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 TRANSAXLE HOUSING *2 TRANSAXLE CASE GASKET
*3 O-RING - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Toyota Genuine ATF WS - -

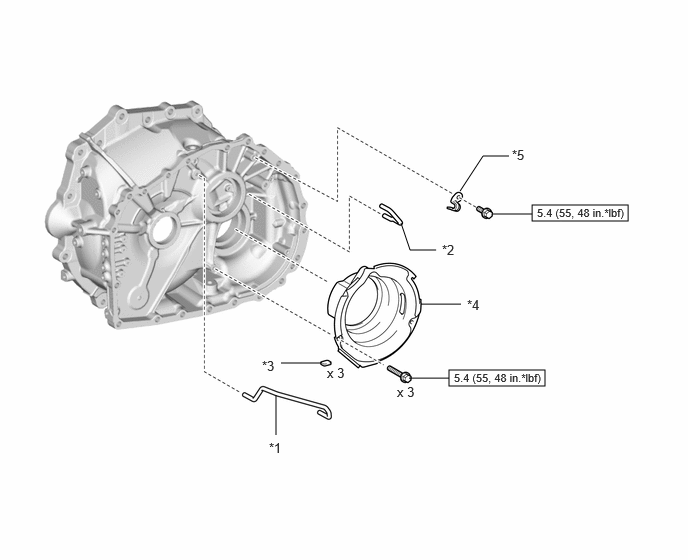

Fig 6: Automatic Transaxle Unit Replacement Components With Torque Specifications (6 Of 19)
GTY1250672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 TRANSMISSION LUBE APPLY TUBE *2 DIFFERENTIAL GEAR LUBE APPLY TUBE
*3 TRANSMISSION OIL CLEANER MAGNET *4 TRANSAXLE HOUSING OIL SEPARATOR
*5 CLAMP - -
N.m (kgf/cm, ft.lbf): Specified torque - -

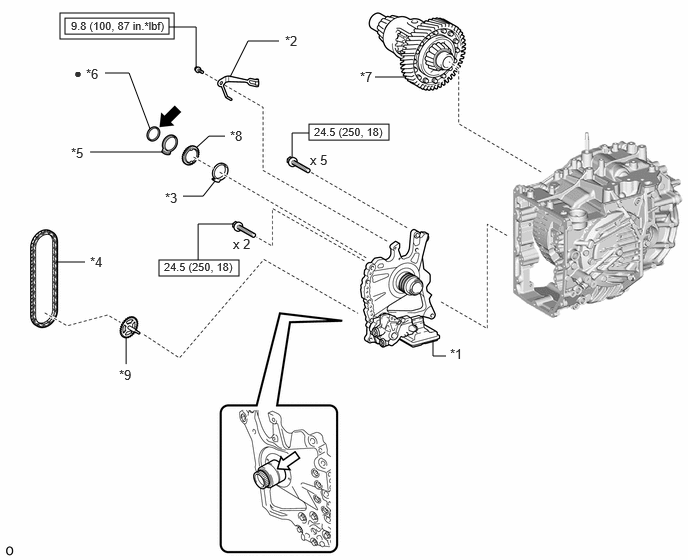

Fig 7: Automatic Transaxle Unit Replacement Components With Torque Specifications (7 Of 19)
GTY1250689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT OIL PUMP ASSEMBLY *2 MANUAL DETENT SPRING SUB-ASSEMBLY
*3 OIL PUMP SPROCKET REAR THRUST WASHER *4 TRANSMISSION DRIVE CHAIN
*5 OIL PUMP SPROCKET FRONT THRUST WASHER *6 CLUTCH DRUM OIL SEAL RING
*7 DIFFERENTIAL CASE ASSEMBLY *8 TRANSMISSION OIL PUMP DRIVE SPROCKET
*9 OIL PUMP DRIVE SHAFT SUB-ASSEMBLY - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque
• Non-reusable part Toyota Genuine ATF WS
MP grease - -

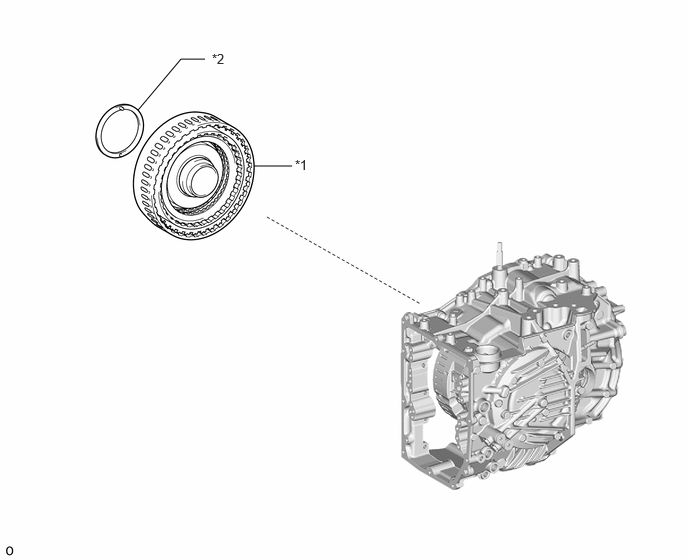

Fig 8: Automatic Transaxle Unit Replacement Components (8 Of 19)
GTY1250706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 C-3 AND C-4 CLUTCH ASSEMBLY *2 PLANETARY CARRIER THRUST WASHER
Fig 9: Automatic Transaxle Unit Replacement Components (9 Of 19)

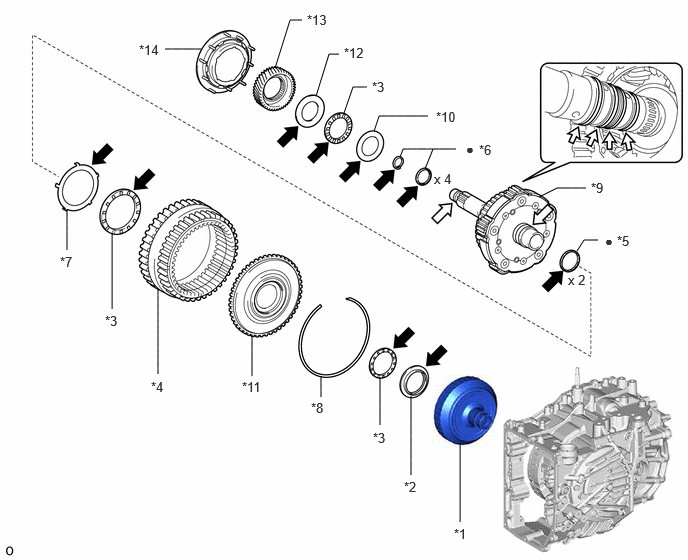

GTY1251721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 C-1 CLUTCH ASSEMBLY *2 NO. 6 THRUST BEARING RACE
*3 THRUST NEEDLE ROLLER BEARING *4 FRONT PLANETARY RING GEAR
*5 REAR INPUT SHAFT OIL SEAL RING *6 INPUT SHAFT OIL SEAL RING
*7 NO. 7 THRUST BEARING RACE *8 SNAP RING
*9 FRONT PLANETARY GEAR ASSEMBLY *10 NO. 8 THRUST BEARING RACE
*11 FRONT PLANETARY RING GEAR FLANGE *12 NO. 9 THRUST BEARING RACE
*13 PLANETARY SUN GEAR *14 NO. 2 PLANETARY CARRIER THRUST WASHER
• Non-reusable part Toyota Genuine ATF WS
MP grease - -

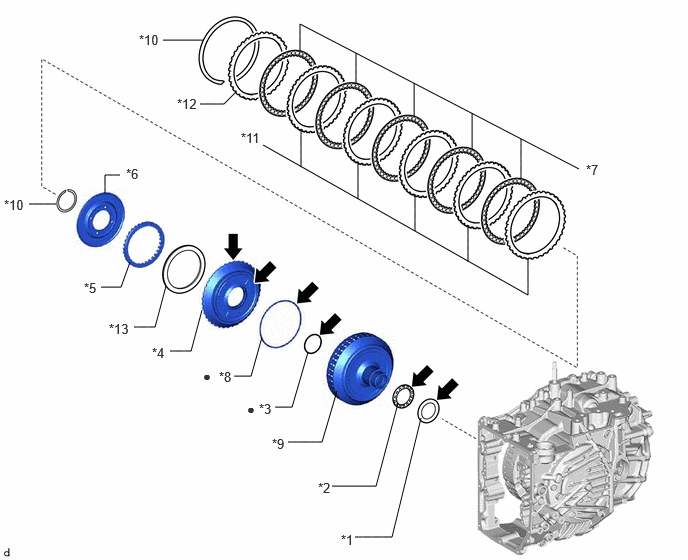

Fig 10: Automatic Transaxle Unit Replacement Components (10 Of 19)
GTY1250666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 5 THRUST BEARING RACE *2 THRUST NEEDLE ROLLER BEARING
*3 D-RING *4 FORWARD CLUTCH PISTON
*5 FORWARD CLUTCH RETURN SPRING SUB-ASSEMBLY *6 NO. 1 CLUTCH BALANCER
*7 FRONT CLUTCH DISC *8 O-RING
*9 CLUTCH DRUM SUB-ASSEMBLY *10 SNAP RING
*11 FORWARD MULTIPLE DISC CLUTCH PLATE *12 FORWARD CLUTCH FLANGE
*13 WASHER - -
• Non-reusable part Toyota Genuine ATF WS

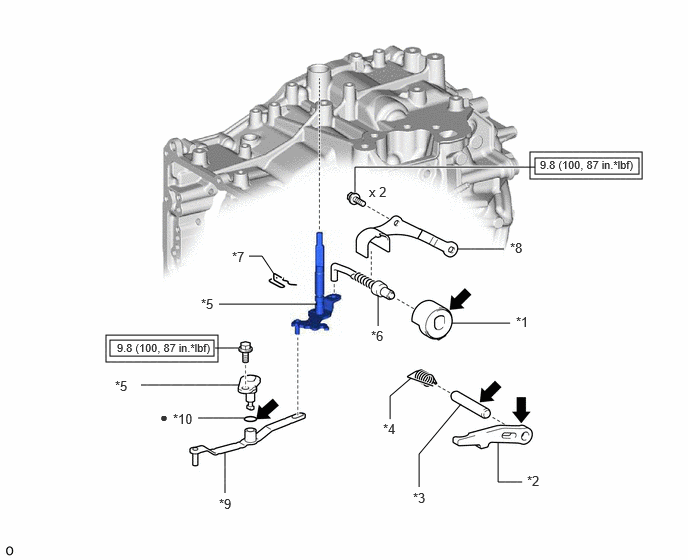

Fig 11: Automatic Transaxle Unit Replacement Components With Torque Specifications (11 Of 19)
GTY1251358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 PARKING LOCK SLEEVE *2 PARKING LOCK PAWL
*3 PARKING LOCK PAWL SHAFT *4 PARKING LOCK PAWL TORSION SPRING
*5 MANUAL VALVE LEVER SHAFT SUB-ASSEMBLY *6 PARKING LOCK ROD SUB-ASSEMBLY
*7 MANUAL VALVE LEVER SHAFT RETAINER SPRING *8 PAWL STOPPER PLATE
*9 MANUAL VALVE LEVER SUB-ASSEMBLY *10 O-RING
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) • Non-reusable part
Toyota Genuine ATF WS - -

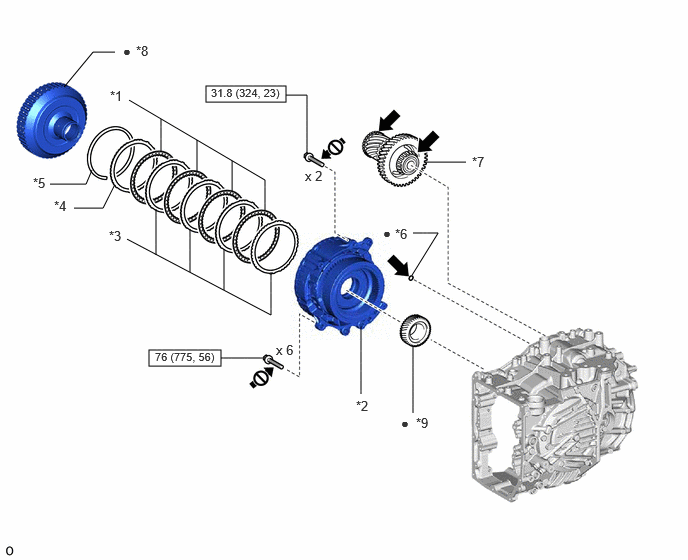

Fig 12: Automatic Transaxle Unit Replacement Components With Torque Specifications (12 Of 19)
GTY1252626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 1 BRAKE DISC *2 COUNTER DRIVE GEAR SUB-ASSEMBLY
*3 NO. 1 BRAKE PLATE *4 NO. 1 BRAKE FLANGE
*5 SNAP RING *6 O-RING
*7 PINION AND COUNTER DRIVEN GEAR SUB-ASSEMBLY *8 SUN GEAR INPUT HUB SUB-ASSEMBLY
*9 PLANETARY SUN GEAR SUB-ASSEMBLY - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Toyota Genuine ATF WS Do not apply lubricants to the threaded parts
Fig 13: Automatic Transaxle Unit Replacement Components (13 Of 19)
GTY1251053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

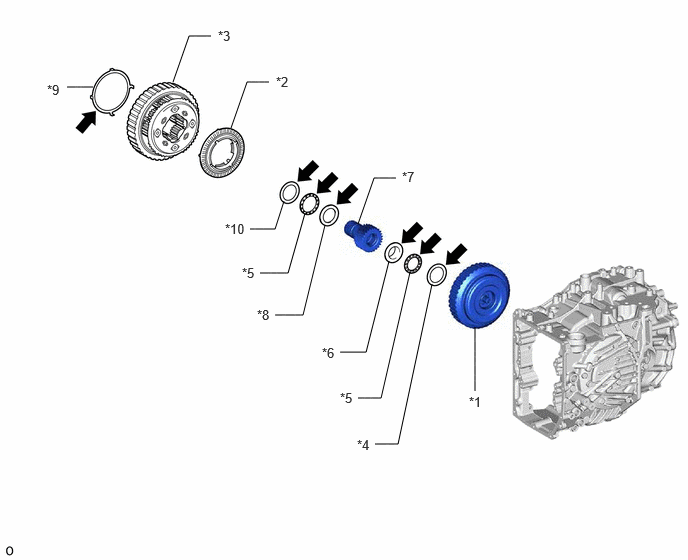

Callout Description Callout Description
*1 C-2 CLUTCH ASSEMBLY *2 NO. 4 PLANETARY CARRIER THRUST WASHER
*3 REAR PLANETARY GEAR ASSEMBLY *4 NO. 2 THRUST BEARING RACE
*5 THRUST NEEDLE ROLLER BEARING *6 NO. 3 THRUST BEARING RACE
*7 REAR PLANETARY SUN GEAR SUB-ASSEMBLY *8 THRUST BEARING RACE
*9 NO. 3 PLANETARY CARRIER THRUST WASHER *10 NO. 4 THRUST BEARING RACE
Toyota Genuine ATF WS - -
Fig 14: Automatic Transaxle Unit Replacement Components (14 Of 19)
GTY1251575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 DIRECT CLUTCH DRUM OIL SEAL RING *2 C-2 CLUTCH PISTON
*3 CLUTCH RETURN SPRING SUB-ASSEMBLY *4 C-2 CLUTCH BALANCER

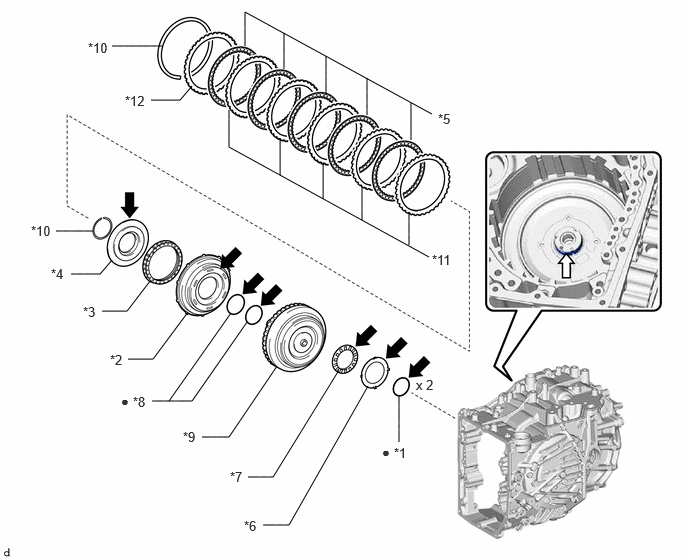

*5 NO. 2 CLUTCH DISC *6 NO. 1 THRUST BEARING RACE
*7 THRUST NEEDLE ROLLER BEARING *8 O-RING
*9 INTERMEDIATE SHAFT SUB-ASSEMBLY *10 SNAP RING
*11 NO. 2 CLUTCH PLATE *12 DIRECT CLUTCH FLANGE
• Non-reusable part Toyota Genuine ATF WS
MP grease - -

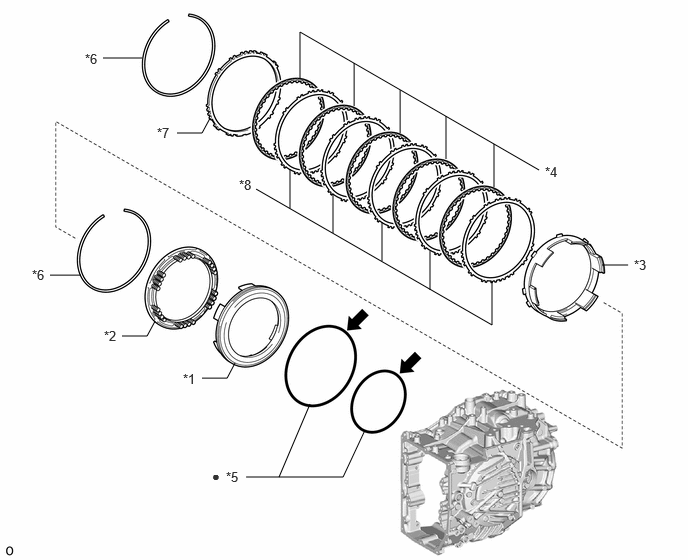

Fig 15: Automatic Transaxle Unit Replacement Components (15 Of 19)
GTY1251251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 1ST AND REVERSE BRAKE PISTON *2 1ST AND REVERSE BRAKE RETURN SPRING SUB-ASSEMBLY
*3 NO. 2 1ST AND REVERSE BRAKE PISTON *4 2ND BRAKE DISC
*5 O-RING *6 SNAP RING
*7 2ND BRAKE FLANGE *8 2ND BRAKE PLATE
• Non-reusable part Toyota Genuine ATF WS

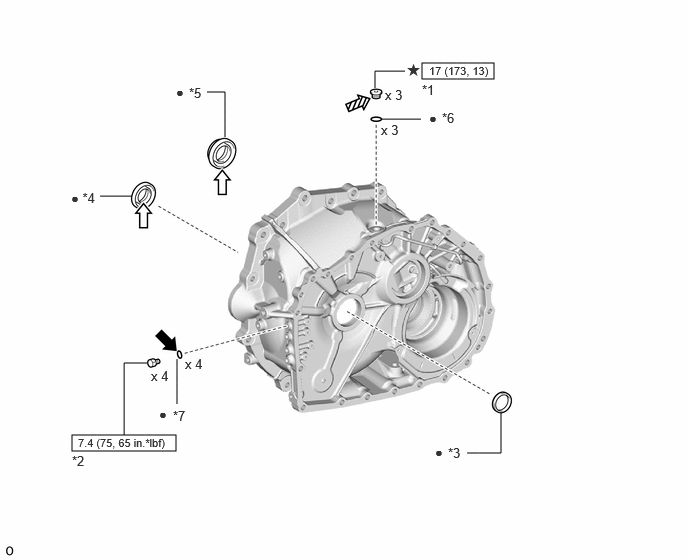

Fig 16: Automatic Transaxle Unit Replacement Components With Torque Specifications (16 Of 19)
GTY1251849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 2 TRANSAXLE CASE PLUG *2 NO. 1 TRANSAXLE CASE PLUG
*3 NEEDLE ROLLER BEARING *4 FRONT OIL PUMP OIL SEAL
*5 FRONT TRANSAXLE CASE OIL SEAL *6 GASKET
*7 O-RING - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Toyota Genuine ATF WS MP grease
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent * Precoated part

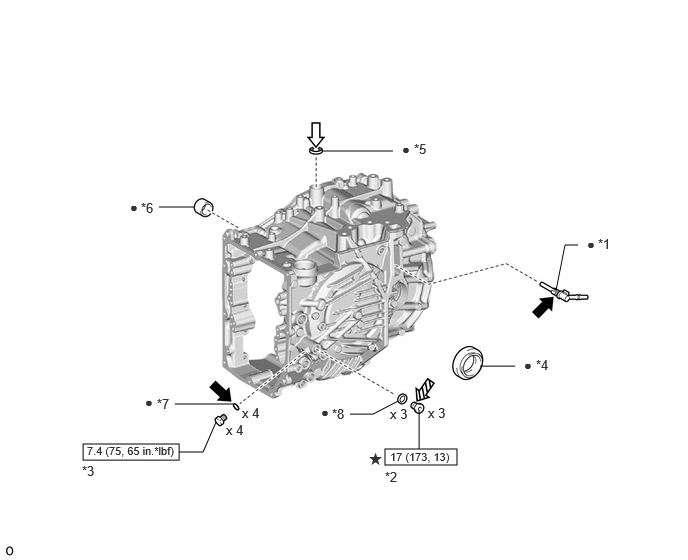

Fig 17: Automatic Transaxle Unit Replacement Components With Torque Specifications (17 Of 19)
GTY1251750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 1 BREATHER PLUG (ATM) *2 NO. 2 TRANSAXLE CASE PLUG
*3 NO. 1 TRANSAXLE CASE PLUG *4 FRONT DRIVE SHAFT OIL SEAL LH
*5 MANUAL VALVE LEVER SHAFT OIL SEAL *6 NEEDLE ROLLER BEARING
*7 O-RING *8 GASKET
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Toyota Genuine ATF WS MP grease
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent * Precoated part

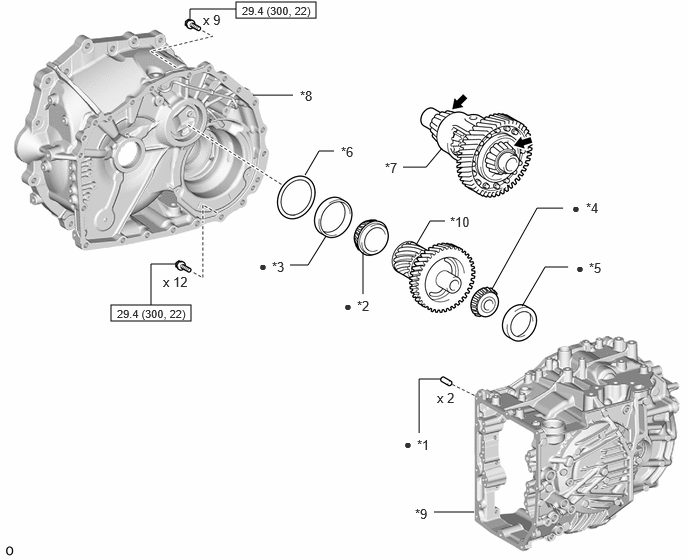

Fig 18: Automatic Transaxle Unit Replacement Components With Torque Specifications (18 Of 19)
GTY1252367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 AUTOMATIC TRANSMISSION CASE STRAIGHT PIN *2 COUNTER DRIVEN GEAR FRONT TAPERED ROLLER BEARING (INNER RACE)
*3 COUNTER DRIVEN GEAR FRONT TAPERED ROLLER BEARING (OUTER RACE) *4 COUNTER DRIVEN GEAR REAR TAPERED ROLLER BEARING (INNER RACE)
*5 COUNTER DRIVEN GEAR REAR TAPERED ROLLER BEARING (OUTER RACE) *6 PINION AND COUNTER DRIVEN GEAR SHIM
*7 DIFFERENTIAL CASE ASSEMBLY *8 TRANSAXLE HOUSING
*9 AUTOMATIC TRANSAXLE CASE SUB-ASSEMBLY *10 PINION AND COUNTER DRIVEN GEAR SUB-ASSEMBLY
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Toyota Genuine ATF WS - -

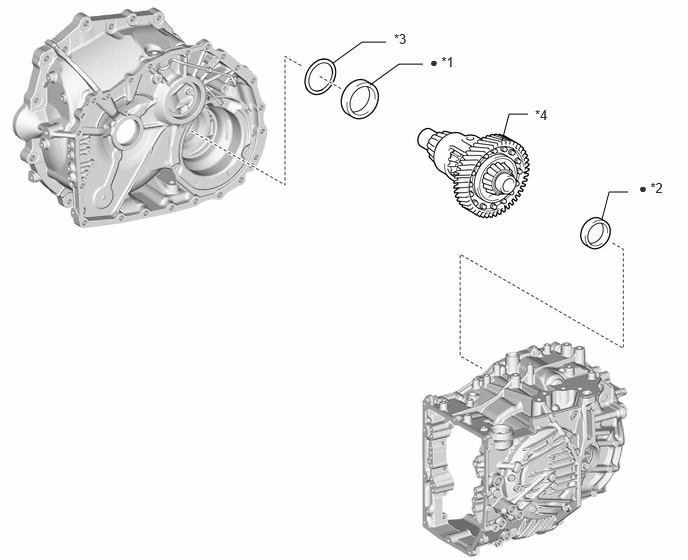

Fig 19: Automatic Transaxle Unit Replacement Components (19 Of 19)
GTY1251979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING (OUTER RACE) *2 FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING (OUTER RACE)
*3 DIFFERENTIAL DRIVE PINION SHIM *4 DIFFERENTIAL CASE ASSEMBLY
• Non-reusable part - -
