Parts Location [03/2019 - 11/2022]: Illustration
WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

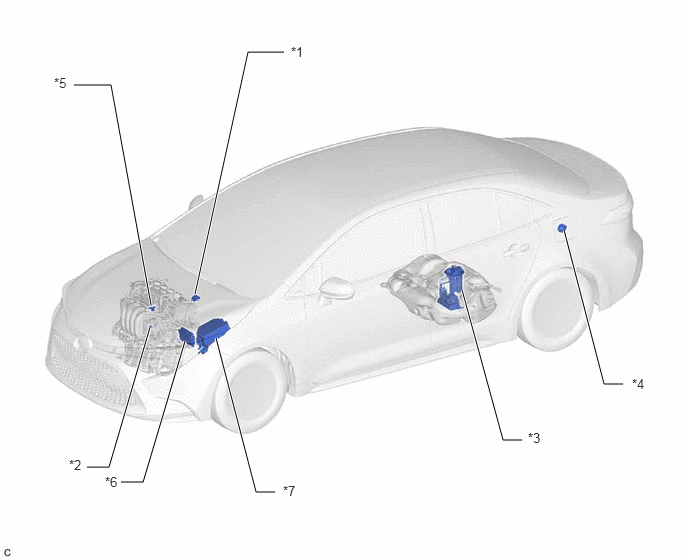

| *1 | PURGE VALVE (PURGE VSV) | *2 | PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY) |
| *3 | CANISTER (FUEL SUCTION PLATE SUB-ASSEMBLY) | *4 | FUEL TANK CAP ASSEMBLY |
| *5 | E.F.I. VACUUM SENSOR ASSEMBLY (MANIFOLD ABSOLUTE PRESSURE SENSOR) | *6 | ECM |
| *7 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - EFI NO. 2 FUSE |
- | - |
