Components [11/2022 - 09/2024]
WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *A |
w/ Engine Under Cover Air Guide |
- |
- |
| *1 |
FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH |
*2 |
INLET HOSE |
| *3 |
WINDSHIELD WASHER JAR ASSEMBLY |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

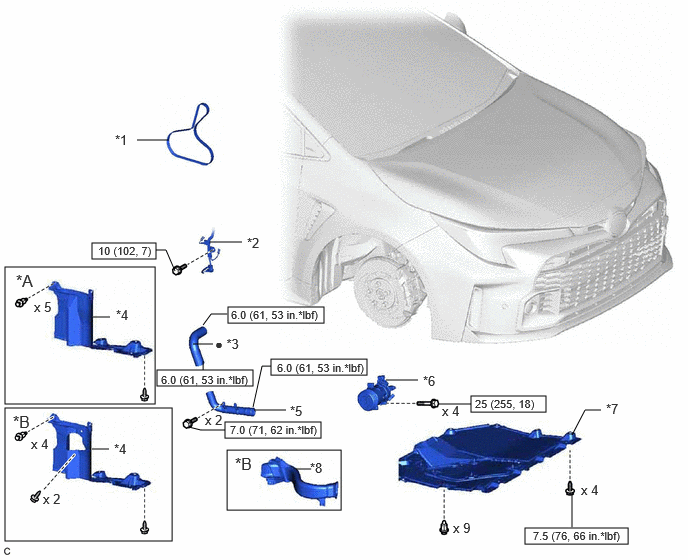

| Callout |
Description |
Callout |
Description |
| *A |
w/o Engine Under Cover Air Guide |
*B |
w/ Engine Under Cover Air Guide |
| *1 |
FAN AND GENERATOR V BELT |
*2 |
ENGINE WIRE |
| *3 |
NO. 2 AIR HOSE |
*4 |
REAR ENGINE UNDER COVER RH |
| *5 |
NO. 1 AIR TUBE |
*6 |
COMPRESSOR ASSEMBLY WITH PULLEY |
| *7 |
NO. 1 ENGINE UNDER COVER ASSEMBLY |
*8 |
NO. 2 ENGINE UNDER COVER AIR GUIDE |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

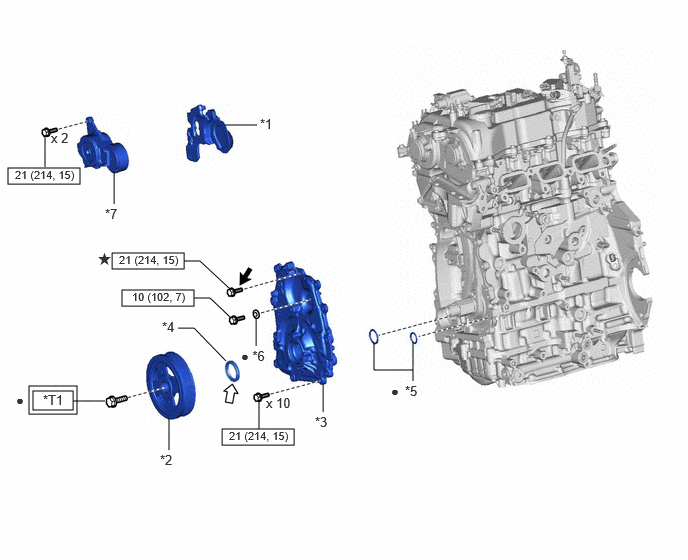

| Callout |
Description |
Callout |
Description |
| *1 |
TIMING GEAR COVER INSULATOR |
*2 |
CRANKSHAFT PULLEY ASSEMBLY |
| *3 |
TIMING CHAIN COVER ASSEMBLY |
*4 |
TIMING CHAIN COVER OIL SEAL |
| *5 |
OIL PUMP GASKET |
*6 |
SEAL WASHER |
| *7 |
V-RIBBED BELT TENSIONER ASSEMBLY |
- |
- |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
| • |
Non-reusable part |
|
Adhesive 1344 |
|
MP grease |
* |
Precoated part |
| *T1 |
1st: 260 (2651, 192)
2nd: Turn 90° |
- |
- |
