Components [09/2022 - ]
WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

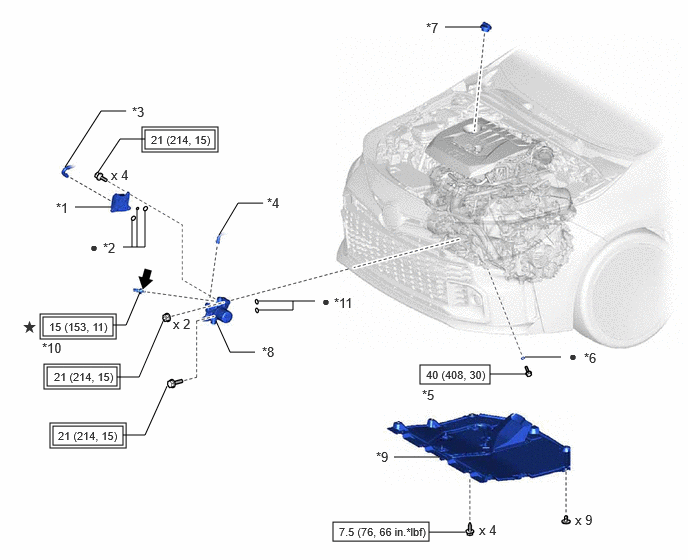

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | OIL COOLER ASSEMBLY | *2 | OIL COOLER GASKET |
| *3 | NO. 5 WATER BY-PASS HOSE | *4 | NO. 6 WATER BY-PASS HOSE |
| *5 | OIL PAN DRAIN PLUG | *6 | GASKET |
| *7 | OIL FILLER CAP ASSEMBLY | *8 | OIL FILTER BRACKET SUB-ASSEMBLY |
| *9 | NO. 1 ENGINE UNDER COVER ASSEMBLY | *10 | OIL PRESSURE AND TEMPERATURE SENSOR |
| *11 | O-RING | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque | ||
| • | Non-reusable part | Adhesive 1344 | |
| * | Precoated part | - | - |
