Replacement [09/2022 - ]: Procedure
WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
- REPLACE RING PIN NOTE:
It is not necessary to remove the ring pins unless they are being replaced.
- Remove the 13 ring pins.
- Using a plastic hammer, install 13 new ring pins.

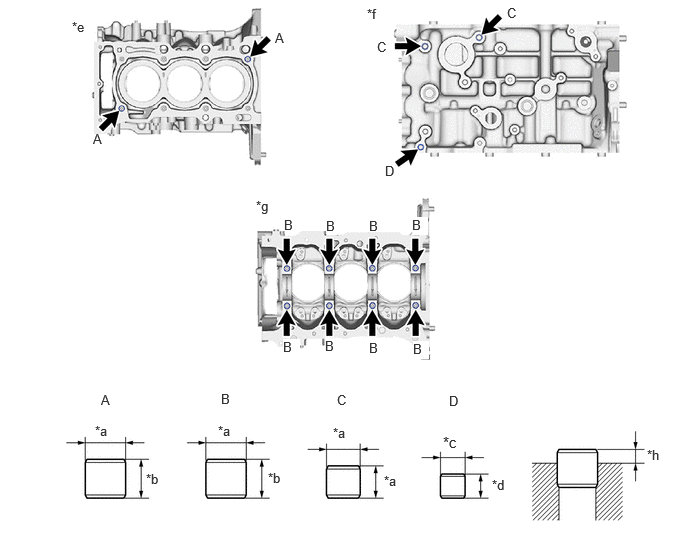

*a 14 mm (0.551 in.) *b 12 mm (0.472 in.) *c 11 mm (0.433 in.) *d 8 mm (0.315 in.) *e Top Side *f LH Side *g Bottom Side *h Protrusion Height Standard Protrusion Height
Ring Pin (A, B, C)
5.0 to 7.0 mm (0.197 to 0.276 in.)
Ring Pin (D)
3.0 to 5.0 mm (0.118 to 0.197 in.)
- REPLACE STRAIGHT PIN NOTE:
It is not necessary to remove the straight pins unless they are being replaced.
- Remove the 8 straight pins.
- Using a plastic hammer, install 8 new straight pins.

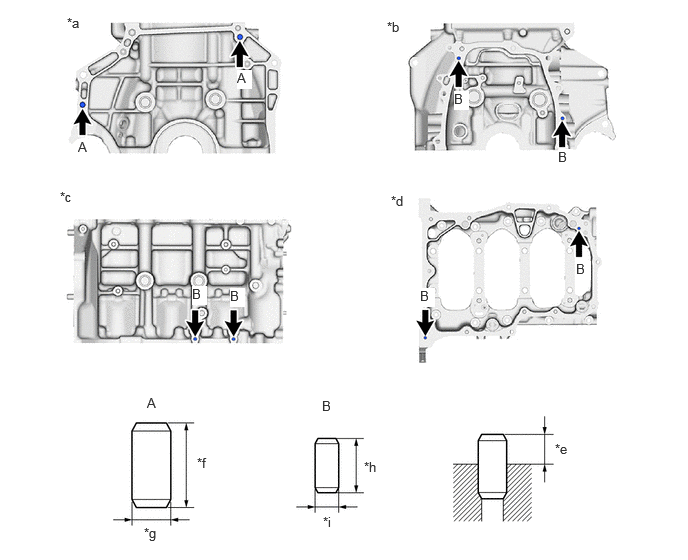

*a Rear Side *b Front Side *c RH Side *d Bottom Side *e Protrusion Height *f 22 mm (0.866 in.) *g 10 mm (0.394 in.) *h 14 mm (0.551 in.) *i 6.0 mm (0.236 in.) - - Standard Protrusion Height
Straight Pin Specified Condition (A) 11.0 to 13.0 mm (0.433 to 0.512 in.) (B) 5.0 to 7.0 mm (0.197 to 0.276 in.)
