On-Vehicle Inspection [01/2019 - 11/2022]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT INTAKE SYSTEM

WARNING:

To prevent injury due to contact with an operating V-ribbed belt or cooling fan, keep your hands and clothing away from the V-ribbed belt and cooling fan when working in the engine compartment with the engine running or the ignition switch ON.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Perform "Inspection After Repair" after repairing vacuum leaks in the intake system.

Refer to INITIALIZATION [01/2019 - 11/2022]

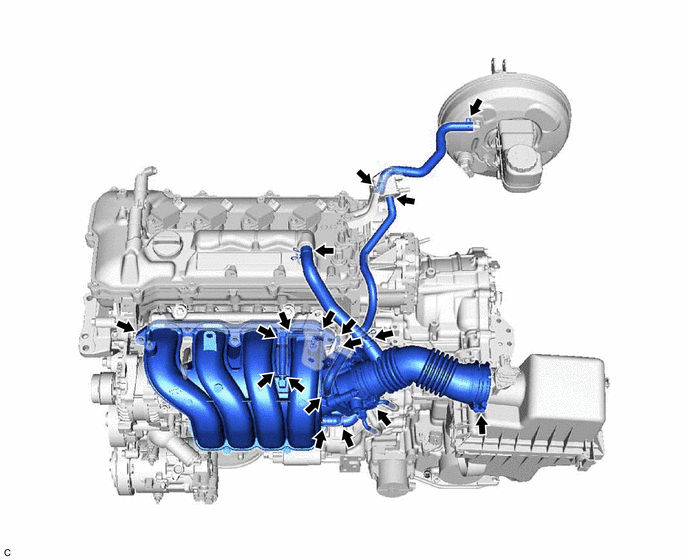

Check that there are no vacuum leaks at the points shown in the illustration.

PERFORM INITIALIZATION
1. Perform "Inspection After Repair" after repairing vacuum leaks in the intake system.
  Refer to INITIALIZATION [01/2019 - 11/2022]
