VC Output Circuit [03/2019 - 11/2022]: Wiring Diagram
WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
- For the circuit diagram of the ECM power source refer to the ECM power source circuit.
Refer to ECM Power Source Circuit [01/2019 - 09/2022] , or refer to ECM Power Source Circuit [09/2022 - 11/2022]

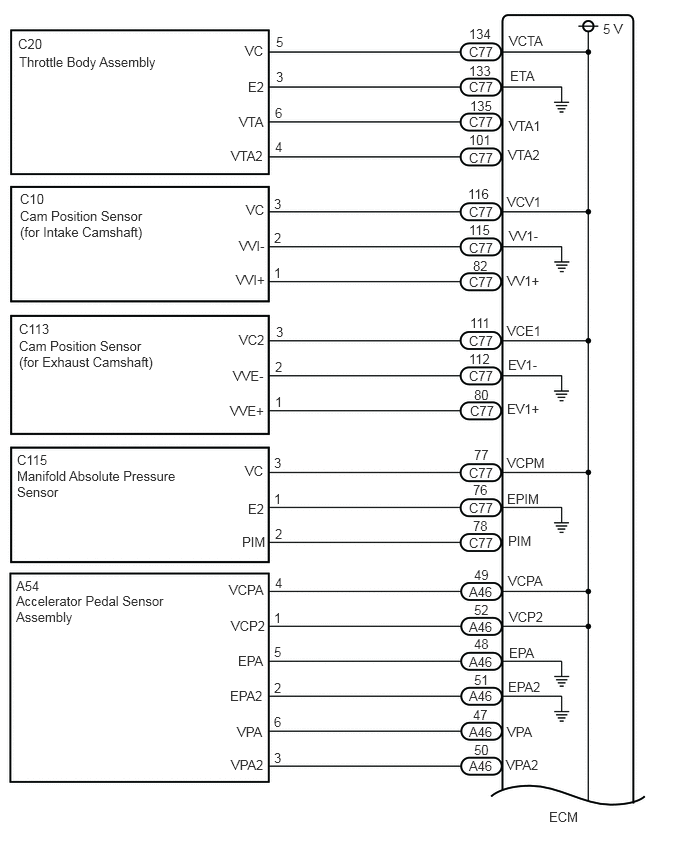

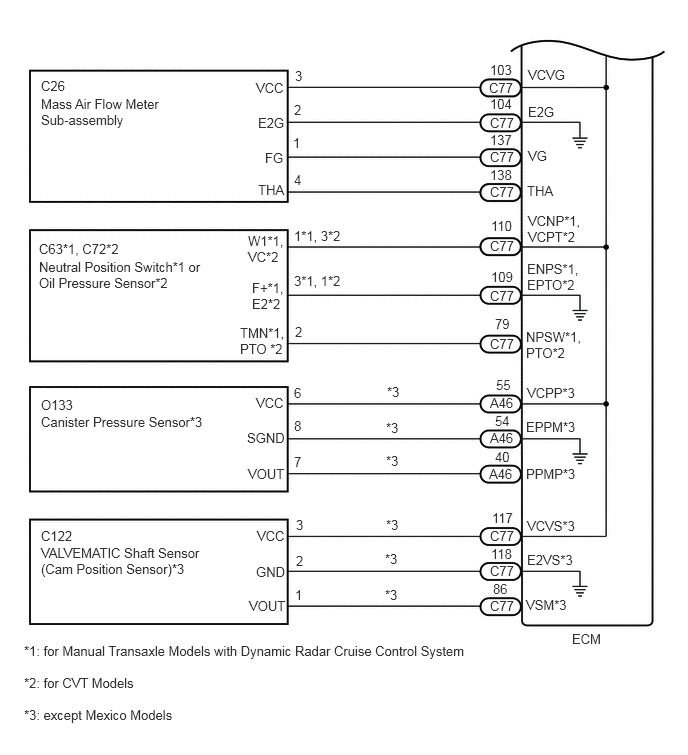

- VC Output Circuit
