Fuel Pump Control Circuit [01/2019 - 11/2022]: Procedure
- PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE FUEL PUMP/SPEED)
- Connect the Techstream to the DLC3.
- Turn the ignition switch to ON.
- Turn the Techstream on.
- Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the Fuel Pump/Speed.
Powertrain > Engine and ECT > Active Test
Tester Display Control the Fuel Pump / Speed - Check whether the fuel pump operating sound occurs when performing the Active Test on the Techstream.
Result
Result Proceed to Fuel pump operating sound does not occur A Fuel pump operating sound occurs B
Result:
B
See step 10
Result:
A
See step 2
- CHECK TERMINAL VOLTAGE (POWER SOURCE OF C/OPN RELAY)
- Remove the C/OPN relay from the No. 1 engine room relay block and No. 1 junction block assembly.

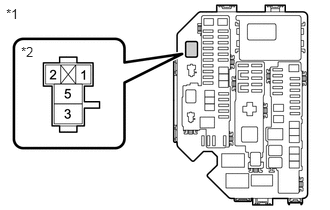

*1 No. 1 Engine Room Relay Block and No. 1 Junction Block Assembly *2 C/OPN Relay - Turn the ignition switch to ON.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition 1 (C/OPN relay) - Body ground Ignition switch ON 11 to 14 V Result
Proceed to OK NG
Result:
NG
See step 9
Result:
OK
See step 3
- Remove the C/OPN relay from the No. 1 engine room relay block and No. 1 junction block assembly.
- INSPECT C/OPN RELAY
- Inspect the C/OPN relay.
Refer to PROCEDURE - Step 1
Result
Proceed to OK NG
Result:
NG
REPLACE C/OPN RELAY
Result:
OK
See step 4
- Inspect the C/OPN relay.
- CHECK HARNESS AND CONNECTOR (C/OPN RELAY - ECM)
- Remove the C/OPN relay from the No. 1 engine room relay block and No. 1 junction block assembly.
- Disconnect the ECM connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 2 (C/OPN relay) - A46-41 (FC) Always Below 1 Ω 2 (C/OPN relay) or A46-41 (FC) - Body ground and other terminals Always 10 kΩ or higher Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 5
- CHECK HARNESS AND CONNECTOR (C/OPN RELAY - FUEL PUMP)
- Remove the C/OPN relay from the No. 1 engine room relay block and No. 1 junction block assembly.
- Disconnect the fuel pump connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 3 (C/OPN relay) - O44-4 (B) Always Below 1 Ω 3 (C/OPN relay) or O44-4 (B) - Body ground and other terminals Always 10 kΩ or higher Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 6
- CHECK HARNESS AND CONNECTOR (FUEL PUMP - BODY GROUND)
- Disconnect the fuel pump connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition O44-5 (E) - Body ground Always Below 1 Ω Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 7
- INSPECT FUEL PUMP
- Inspect the fuel pump.
Refer to INSPECTION [01/2019 - 11/2022]
HINT:
Perform "Inspection After Repair" after replacing the fuel pump.
Refer to INITIALIZATION [01/2019 - 11/2022]
Result
Proceed to OK NG
Result:
NG
REPLACE FUEL PUMP. Refer to REMOVAL [01/2019 - 03/2019] , or refer to REMOVAL [03/2019 - 09/2022] , or refer to REMOVAL [09/2022 - 11/2022]
Result:
OK
See step 8
- Inspect the fuel pump.
- CHECK HARNESS AND CONNECTOR (EFI-MAIN RELAY - C/OPN RELAY)
- Remove the EFI-MAIN relay and C/OPN relay from the No. 1 engine room relay block and No. 1 junction block assembly.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 3 (EFI-MAIN relay) - 5 (C/OPN relay) Always Below 1 Ω 3 (EFI-MAIN relay) or 5 (C/OPN relay) - Body ground and other terminals Always 10 kΩ or higher Result
Proceed to OK NG
Result:
OK
GO TO ECM POWER SOURCE CIRCUIT. Refer to ECM Power Source Circuit [01/2019 - 09/2022] , or refer to ECM Power Source Circuit [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
- CHECK HARNESS AND CONNECTOR (NO. 1 INTEGRATION RELAY - C/OPN RELAY)
- Disconnect the No. 1 integration relay connector.
- Remove the C/OPN relay from the No. 1 engine room relay block and No. 1 junction block assembly.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 1A-9 - 1 (C/OPN relay) Always Below 1 Ω 1A-9 or 1 (C/OPN relay) - Body ground and other terminals Always 10 kΩ or higher Result
Proceed to OK NG
Result:
OK
GO TO ECM POWER SOURCE CIRCUIT. Refer to ECM Power Source Circuit [01/2019 - 09/2022] , or refer to ECM Power Source Circuit [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
- READ VALUE USING TECHSTREAM (STARTER SIGNAL)
- Connect the Techstream to the DLC3.
- Turn the ignition switch to ON.
- Turn the Techstream on.
- Enter the following menus: Powertrain / Engine and ECT / Data List / Starter Signal.
Powertrain > Engine and ECT > Data List
Tester Display Starter Signal - Check the result when the ignition switch is ON and the engine starts.
OK
Condition Starter Signal Ignition switch ON OFF Engine started ON Result
Proceed to OK NG
Result:
NG
CHECK STARTER SIGNAL CIRCUIT. Refer to Starter Signal Circuit [01/2019 - 09/2022] , or refer to Starter Signal Circuit [09/2022 - 11/2022]
Result:
OK
See step 11
- READ VALUE USING TECHSTREAM (ENGINE SPEED)
- Connect the Techstream to the DLC3.
- Turn the ignition switch to ON.
- Turn the Techstream on.
- Enter the following menus: Powertrain / Engine and ECT / Data List / Engine Speed.
Powertrain > Engine and ECT > Data List
Tester Display Engine Speed - Read the values displayed on the Techstream while cranking.
OK
Values are displayed continuously.
Result
Proceed to OK NG
Result:
OK
PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE [01/2019 - 09/2022] , or refer to PROBLEM SYMPTOMS TABLE [09/2022 - 11/2022]
Result:
NG
CHECK CRANK POSITION SENSOR CIRCUIT. Refer to DTC P0335: Crankshaft Position Sensor "A" Circuit; DTC P0339: Crankshaft Position Sensor "A" Circuit Intermittent [01/2019 - 03/2019] , or refer to DTC P0335: Crankshaft Position Sensor "A" Circuit; DTC P0339: Crankshaft Position Sensor "A" Circuit Intermittent [03/2019 - 04/2020] , or refer to DTC P0335: Crankshaft Position Sensor "A" Circuit; DTC P0339: Crankshaft Position Sensor "A" Circuit Intermittent [04/2020 - 11/2022]
